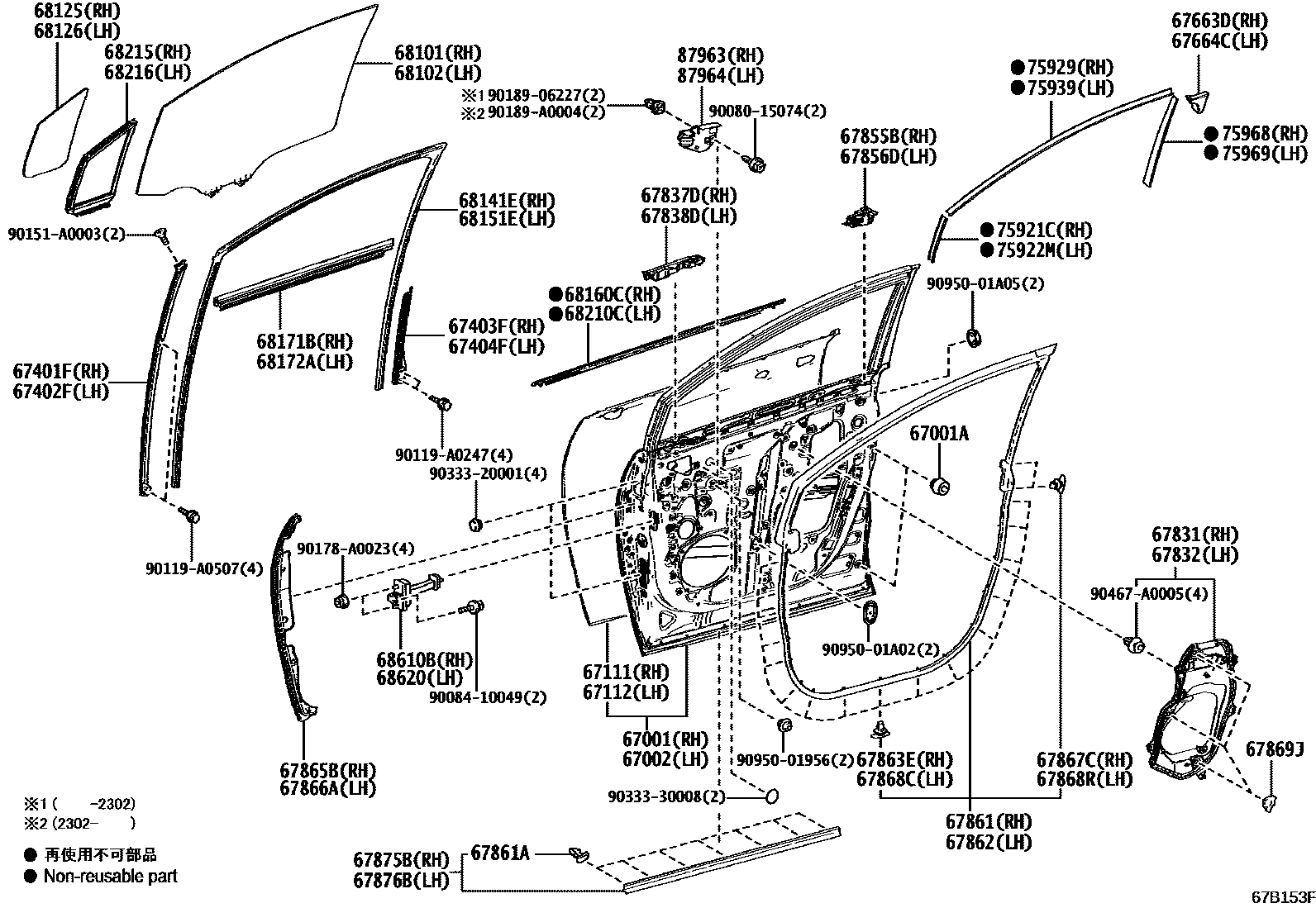

Toyota SIENNA — FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-08080iAXLH4#202011-202410

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iAXLH4#¥100202209-202410

main90541-09143iAXLH4#¥100202011-202208

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-08080iAXLH4#202011-202410

67111PANEL, FRONT DOOR, OUTER RH

main67111-08030iAXLH4#202011-202410

67112PANEL, FRONT DOOR, OUTER LH

main67112-08030iAXLH4#202011-202410

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-08030iAXLH4#202011-202410

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-08030iAXLH4#202011-202410

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-08030iAXLH4#202011-202410

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-08030iAXLH4#202011-202410

67663DGARNISH, DOOR FRAME, RH

main67663-08020iAXLH4#202011-202410

67664CGARNISH, DOOR FRAME, LH

main67664-08020iAXLH4#202011-202410

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-08040iAXLH4#202011-202410

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-08040iAXLH4#202011-202410

67837DSEAL, FRONT DOOR VENT, RH

main67837-08030iAXLH4#202011-202410

67838DSEAL, FRONT DOOR VENT, LH

main67838-08010iAXLH4#202011-202410

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-08030iAXLH4#202011-202410

67856DPROTECTOR, FRONT DOOR PANEL, LH

main67856-08030iAXLH4#202011-202410

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-08030iAXLH4#202011-202410

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-52010iAXLH4#¥100202011-202410

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-08030iAXLH4#202011-202410

67863ERETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iAXLH4#¥100202011-202410

67865BWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-08020iAXLH4#202011-202410

67866AWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-08020iAXLH4#202011-202410

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iAXLH4#¥100202011-202410

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iAXLH4#¥100202011-202410

67868RRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iAXLH4#¥100202011-202410

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-0E010iAXLH4#202011-202410

67875BWEATHERSTRIP, FRONT DOOR, NO.4 RH

main67875-08010iAXLH4#202011-202410

67876BWEATHERSTRIP, FRONT DOOR, NO.4 LH

main67875-08010iAXLH4#202011-202410

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-08070iAXLH4#..E,S,X202011-202410

main68101-08080iAXLH4#..L202011-202107

sub68101-08081

main68101-08081iAXLH4#..L202108-202410

main68101-08081iAXLH4#..L202410

TAIWAN SPEC

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-08070iAXLH4#..E,S,X202011-202410

main68102-08080iAXLH4#..L202011-202107

sub68102-08081

main68102-08081iAXLH40..07S..X202410

TAIWAN SPEC

main68102-08081iAXLH4#..L202108-202410

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-08010iAXLH4#202011-202410

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-08010iAXLH4#202011-202410

68141ERUN, FRONT DOOR GLASS, RH

main68141-08030iAXLH4#202011-202410

68151ERUN, FRONT DOOR GLASS, LH

main68151-08030iAXLH4#202011-202410

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-08030iAXLH4#¥2,260202011-202410

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-08030iAXLH4#202011-202410

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-08030iAXLH4#202011-202410

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-08030iAXLH4#¥2,260202011-202410

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-08010iAXLH4#202011-202410

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-08010iAXLH4#202011-202410

68610BCHECK ASSY, FRONT DOOR, RH

main68610-08030iAXLH4#202011-202309

sub68610-08031

main68610-08031iAXLH4#202310-202410

68620CHECK ASSY, FRONT DOOR, LH

main68620-08030iAXLH4#202011-202309

sub68620-08031

main68620-08031iAXLH4#202310-202410

75921CTAPE, BLACK OUT, NO.1 RH

main75921-08030iAXLH4#202011-202410

75922MTAPE, BLACK OUT, NO.1 LH

main75922-08030iAXLH4#202011-202410

75929TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH

main75929-08020iAXLH4#202011-202410

75939TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH

main75939-08020iAXLH4#202011-202410

75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH

main75968-08020iAXLH4#202011-202410

75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH

main75969-08020iAXLH4#202011-202410

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-08010iAXLH4#202011-202410

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-08010iAXLH4#202011-202410

9008015074

main90080-15074¥60

9008410049

main90084-10049

90119A0247

main90119-A0247

90119A0507

main90119-A0507

90151A0003

main90151-A0003¥60

90178A0023

main90178-A0023

9018906227

main90189-06227¥70

90189A0004

main90189-A0004¥70

9033320001

main90333-20001¥70

9033330008

main90333-30008¥70

90467A0005

main90467-A0005

9095001956

main90950-01956¥100

9095001A02

main90950-01A02¥100

9095001A05

main90950-01A05¥100

65 parts on this diagram · 2 diagrams in section
