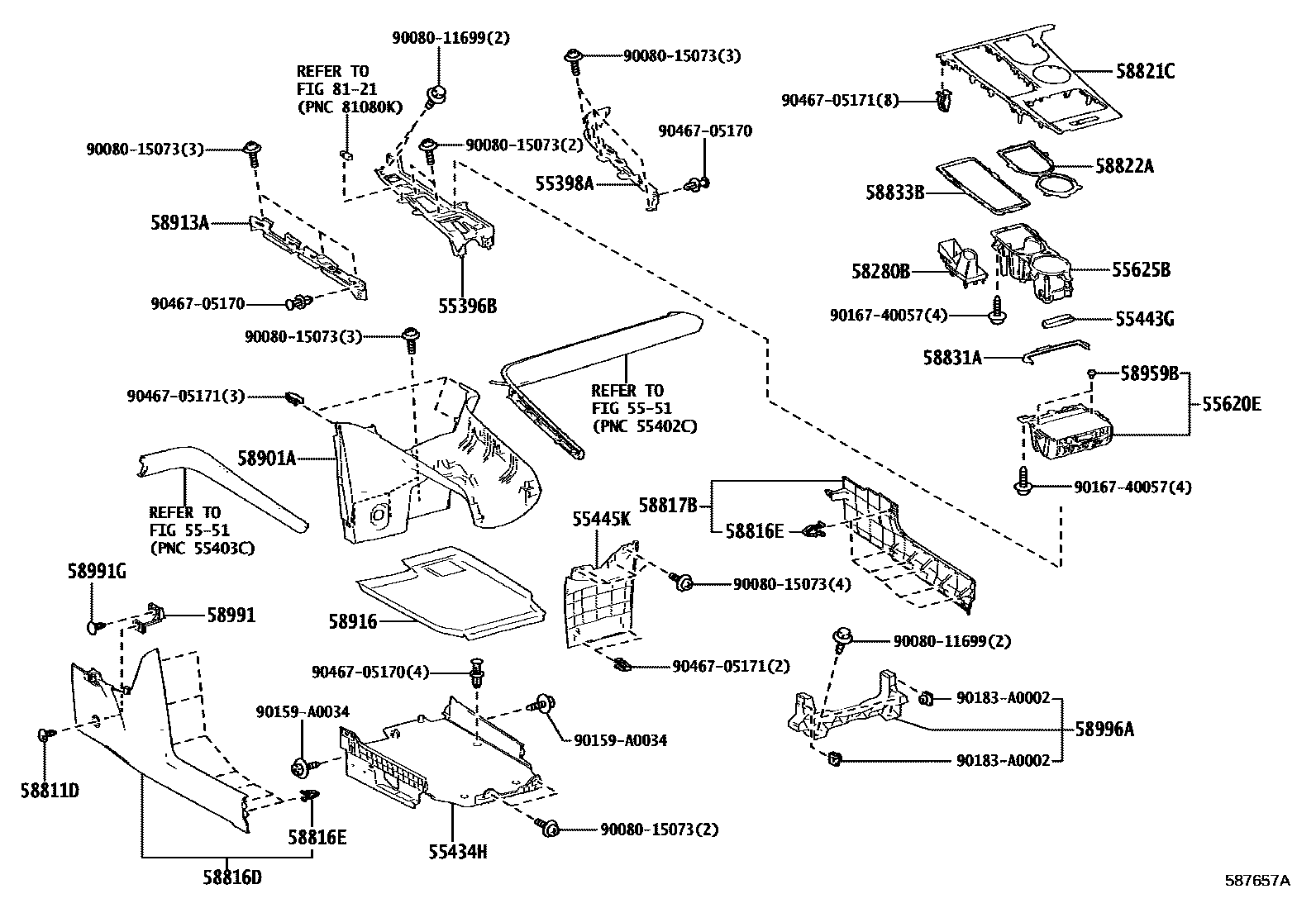

Toyota SIENNA — CONSOLE BOX & BRACKET
55396BBRACKET, CONSOLE MOUNTING, NO.4
55398ABRACKET, CONSOLE MOUNTING, NO.6
55434HPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
NEUTRAL WARM GRAY,TRIM1#
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM11
BLACK,TRIM1#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM12,2#
BLACK,TRIM13,4#
BLACK,TRIM4#
55443GKNOB, INSTRUMENT PANEL BOX DOOR
55445KTRAY, INSTRUMENT PANEL
NEUTRAL WARM GRAY,TRIM11
NEUTRAL WARM GRAY,TRIM1#
NEUTRAL WARM GRAY,TRIM10
BLACK,TRIM4#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM1#
BLACK,TRIM12,2#
BLACK,TRIM13,4#
5551
55620EHOLDER ASSY, INSTRUMENT PANEL CUP
ANODIZED GUN METAL,TRIM13
ANODIZED GUN METAL,TRIM1#
ANODIZED GUN METAL,TRIM1#,2#
BLACK METALLIC,TRIM2#
BLACK METALLIC,TRIM1#,2#
ANODIZED DARK BROWN,TRIM1#,4#
ANODIZED DARK BROWN,TRIM10,4#
ANODIZED DARK BROWN,TRIM1#
WOLF WOOD,TRIM1#,4#
MED. BROWN WOOD PATTERN,TRIM2#,4#
55625BTRAY, INSTRUMENT PANEL CUP HOLDER
58280BBOOT ASSY, SHIFT LEVER
BLACK,TRIM1#,2#
BLACK,TRIM1#
BLACK,TRIM1#,4#
BLACK,TRIM1#
BLACK,TRIM1#,4#
BLACK,TRIM1#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#,4#
58811DCLIP(FOR CONSOLE BOX)
58816DINSERT, CONSOLE BOX, FRONT NO.1
NEUTRAL WARM GRAY,TRIM11
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM12,2#
BLACK,TRIM13,4#
BLACK,TRIM4#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM1#
58816ECLIP, CONSOLE BOX INSERT, FRONT
58817BINSERT, CONSOLE BOX, FRONT NO.2
NEUTRAL WARM GRAY,TRIM11
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM2#,4#
BLACK,TRIM1#
BLACK,TRIM1#,2#
BLACK,TRIM13,4#
BLACK,TRIM4#
BLACK,TRIM12,2#
58821CPANEL, CONSOLE, UPPER
ANODIZED GUN METAL,TRIM1#,2#
ANODIZED GUN METAL,TRIM13
ANODIZED GUN METAL,TRIM1#
BLACK METALLIC,TRIM2#
BLACK METALLIC,TRIM1#,2#
ANODIZED DARK BROWN,TRIM1#,4#
ANODIZED DARK BROWN,TRIM1#
ANODIZED DARK BROWN,TRIM10,4#
WOLF WOOD,TRIM1#,4#
MED. BROWN WOOD PATTERN,TRIM2#,4#
58822APANEL, CONSOLE, UPPER REAR
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
58901ABOX SUB-ASSY, CONSOLE, REAR
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
NEUTRAL WARM GRAY,TRIM11
BLACK,TRIM12,2#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM1#
BLACK,TRIM13,4#
BLACK,TRIM4#
58916MAT, BOX BOTTOM
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
NEUTRAL WARM GRAY,TRIM11
BLACK,TRIM13,4#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM1#
BLACK,TRIM12,2#
BLACK,TRIM4#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58991BRACKET, CONSOLE BOX MOUNTING, UPPER
58991GCLIP
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8121
9008011699
9008015073
main90080-15073
90159A0034
9016740057
90183A0002
main90183-A0002
9046705170
9046705171
32 parts on this diagram · 4 diagrams in section
