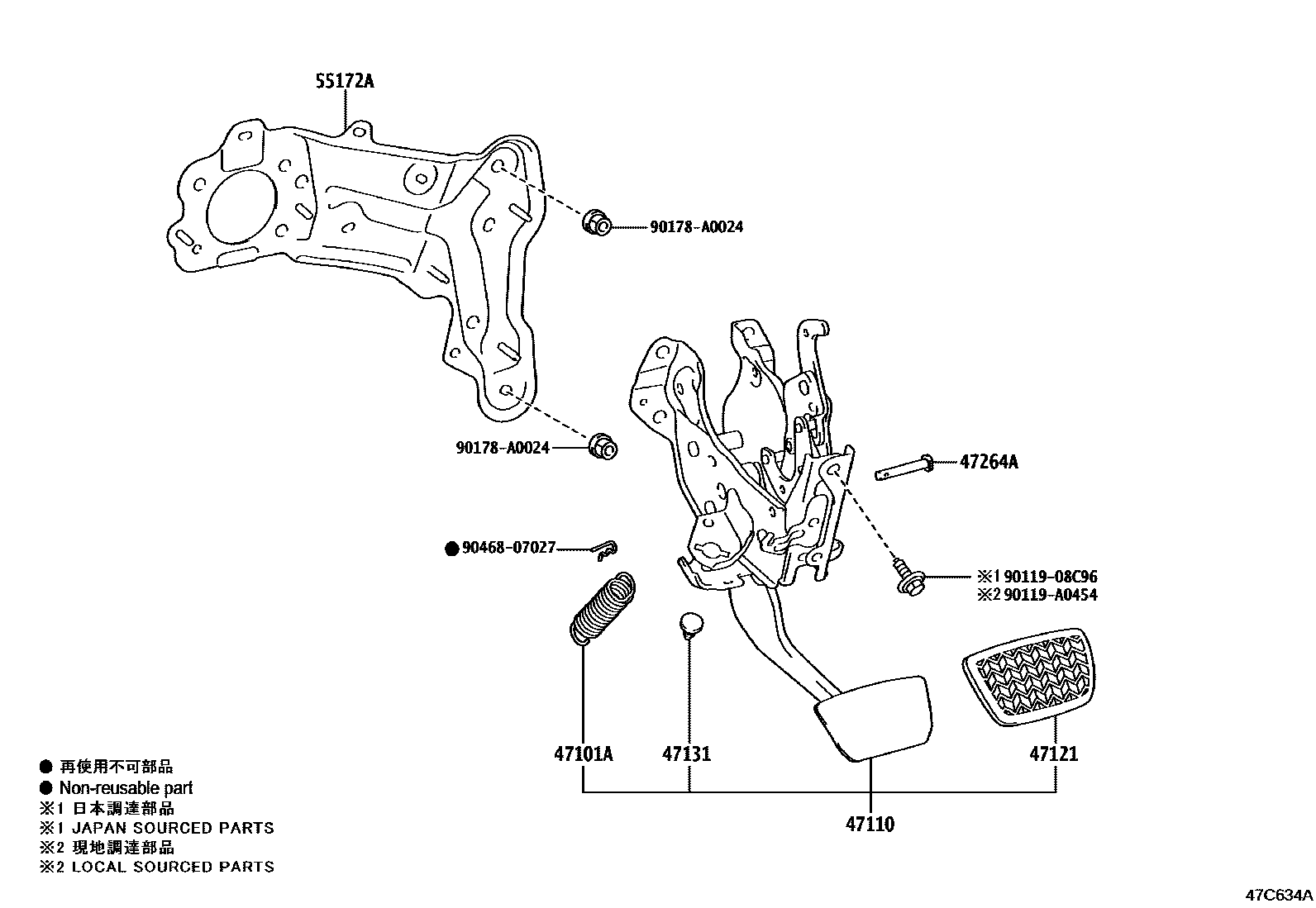

Toyota SIENNA — BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main47146-08010iAXLH4#202011-202410

47110SUPPORT ASSY, BRAKE PEDAL

main47110-08070iAXLH4#202011-202209

main47110-08071iAXLH4#202210-202410

47121PAD, BRAKE PEDAL

main47121-48010iAXLH4#¥520202011-202210

main47121-62010iAXLH4#¥520202210-202410

47131CUSHION(FOR STOP LAMP SWITCH)

main90080-54033iAXLH4#202011-202410

47264APIN(FOR PUSH ROD)

main90240-08082iAXLH4#¥120202011-202410

55172ABASE, BRAKE PEDAL SUPPORT

main55172-08020iAXLH4#202011-202410

9011908C96

main90119-08C96¥80

90119A0454

main90119-A0454

90178A0024

main90178-A0024

9046807027

main90468-07027¥60

10 parts on this diagram · 1 diagram in section
