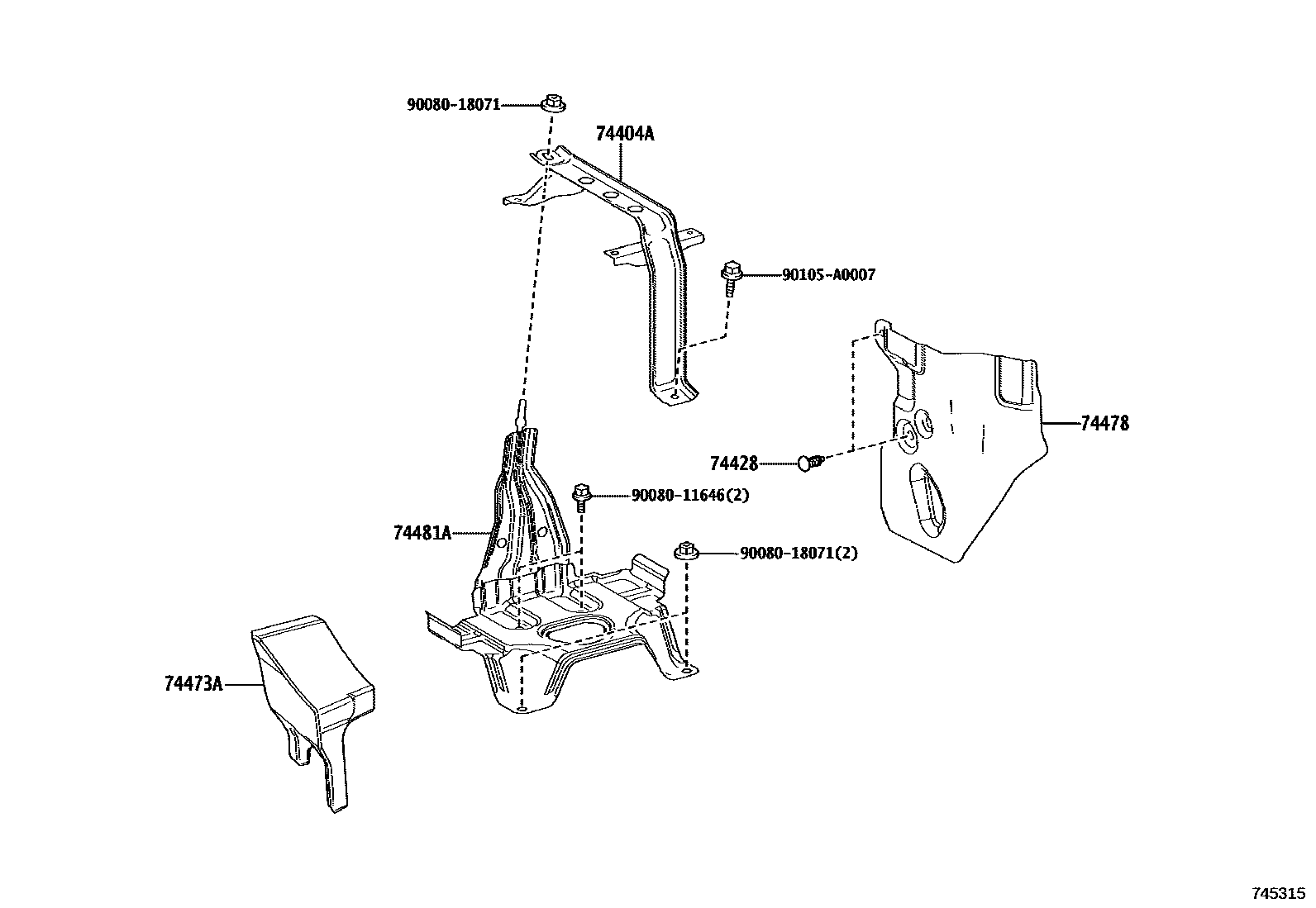

Toyota SIENNA — BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-08030iAXLH4#202011-202108

sub74404-08031

main74404-08031iAXLH4#202109-202410

74428CLIP, BATTERY TERMINAL PROTECTOR

main90467-A0001-C1iAXLH4#202011-202410

BLACK

74473ASPACER, BATTERY, NO.1

main74473-08010iAXLH4#202011-202410

74478SHEET, BATTERY CARRIER, NO.2

main74478-08010iAXLH4#202011-202410

74481ACLAMP, BATTERY

main74440-08010iAXLH4#202011-202410

9008011646

main90080-11646¥60

9008018071

main90080-18071

90105A0007

main90105-A0007¥60

8 parts on this diagram · 1 diagram in section
