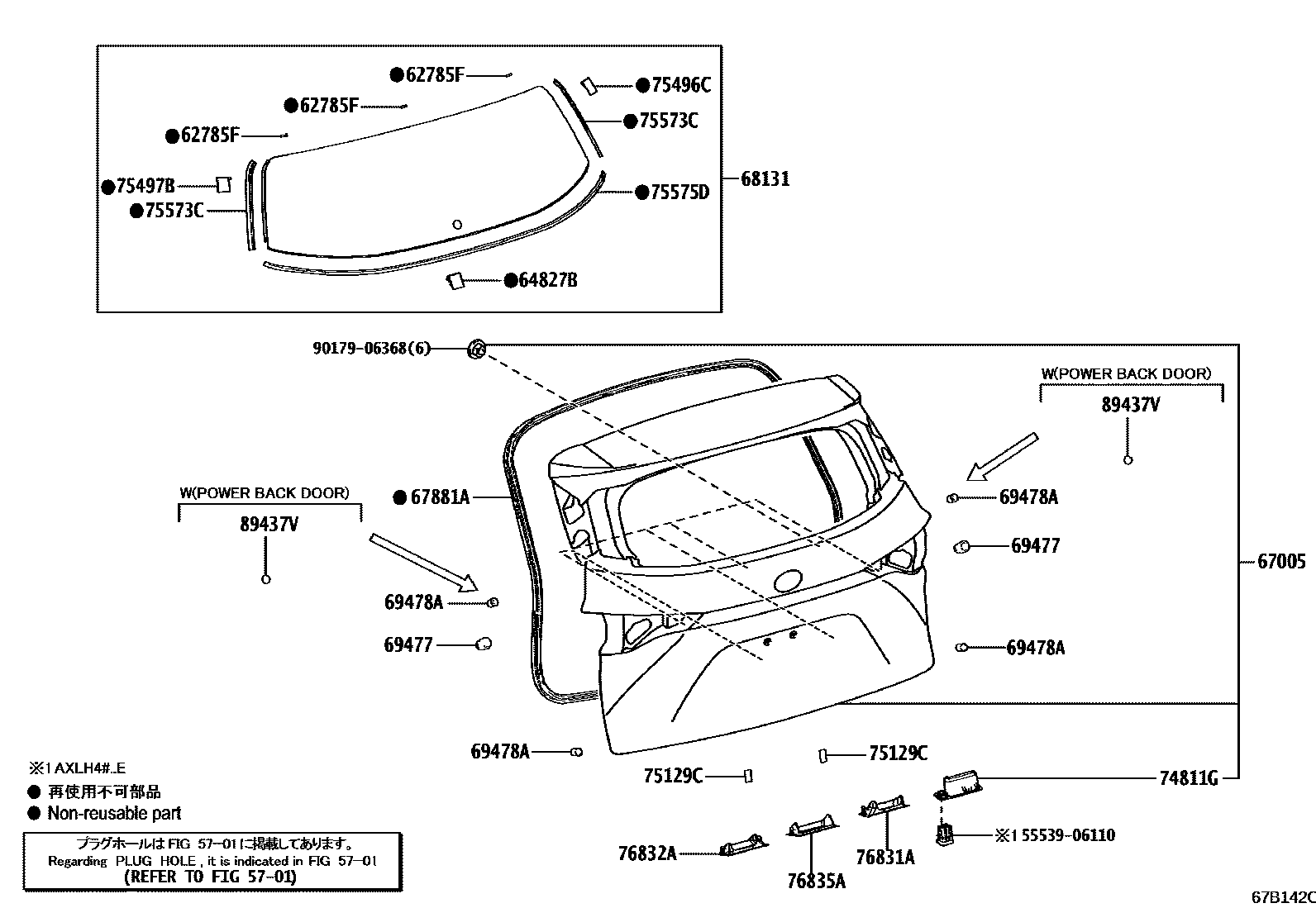

Toyota SIENNA — BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

62785FSPACER, BACK DOOR GLASS

main62785-60030iAXLH4#¥200202011-202410

64827BCLIP, BACK WINDOW GLASS, RH

main64827-08010iAXLH4#202011-202410

67005PANEL SUB-ASSY, BACK DOOR

main67005-08170iAXLH4#202011-202410

67881AWEATHERSTRIP, BACK DOOR

main67881-08040iAXLH4#202011-202410

68131GLASS, BACK DOOR

main68105-08070iAXLH4#202011-202410

69477CUSHION, BACK DOOR UPPER STOPPER

main69477-0E010iAXLH4#202011-202410

69478ACUSHION, BACK DOOR LOWER STOPPER

main69478-76010iAXLH4#..L,S,X¥210202410

main69478-76010iAXLH4#..E¥210202011-202410

LOWER

74811GHANDLE, DOOR PULL

main74811-08010iAXLH4#202011-202410

75129CCUSHION, REAR LICENCE PLATE

main75129-AC010iAXLH4#¥640202011-202410

75496CCLIP, BACK WINDOW OUTSIDE MOULDING, RH

main75496-08010iAXLH4#202011-202410

75497BCLIP, BACK WINDOW OUTSIDE MOULDING, LH

main75497-08010iAXLH4#202011-202410

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-08030iAXLH4#202011-202410

75575DMOULDING, BACK WINDOW, LOWER

main75575-08020iAXLH4#¥550202011-202410

76831ACOVER, BACK DOOR FINISH PANEL, RH

main76831-08010iAXLH4#202011-202410

76832ACOVER, BACK DOOR FINISH PANEL, LH

main76832-08010iAXLH4#202011-202410

76835APROTECTOR, BACK DOOR FINISH PANEL, NO.1

main76835-08010iAXLH4#202011-202410

89437VCOVER, SENSOR

main89437-0E020iAXLH4#..L,S,X202011-202410

5553906110COVER, SPARE SWITCH HOLE

main55539-06110

9017906368

main90179-06368

20 parts on this diagram · 2 diagrams in section
