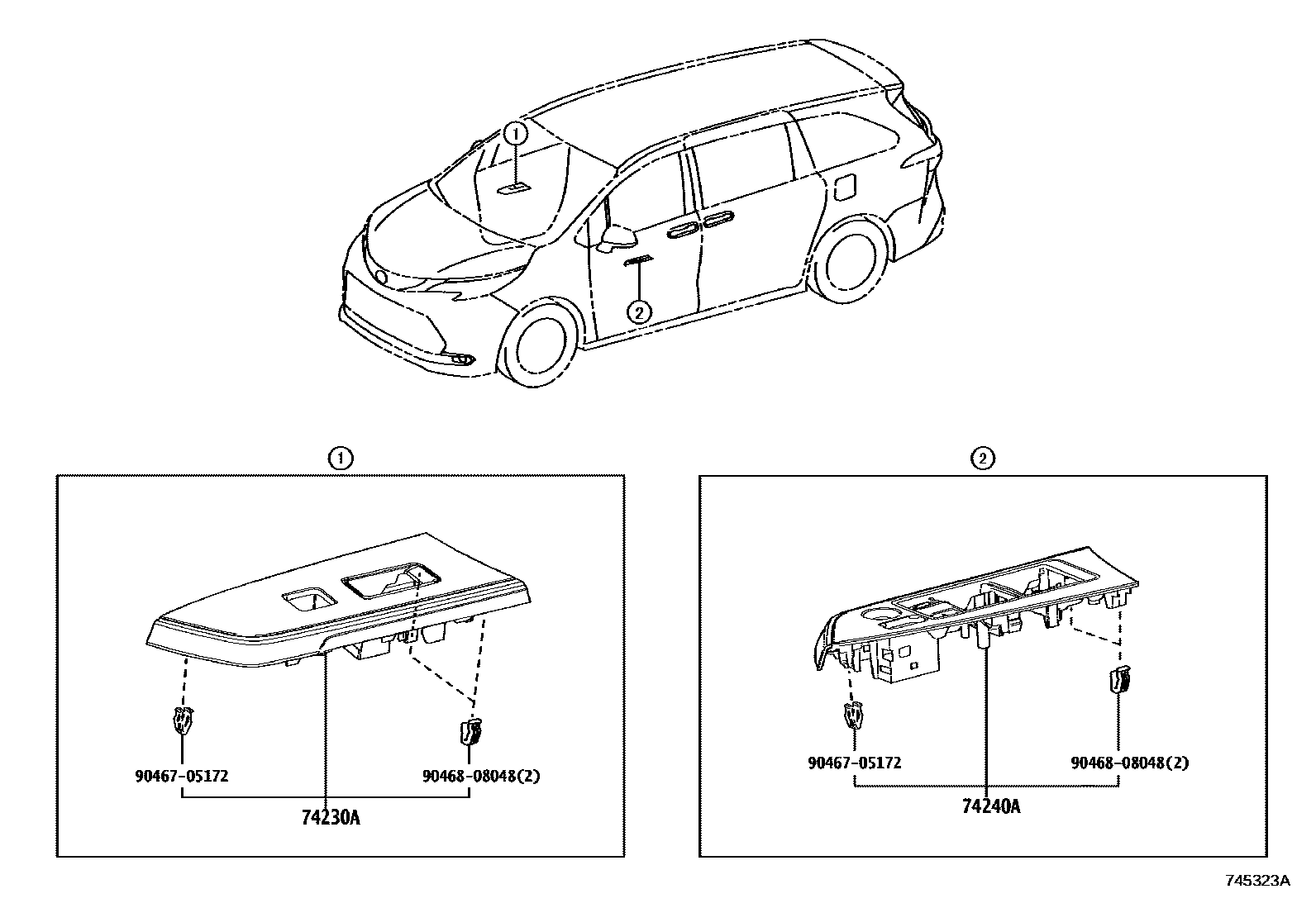

Toyota SIENNA — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR 0003 1ASSIST GRIP

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74230-08070-E0iAXLH4#..X202011-202410

ANODIZED DARK BROWN,TRIM1#

main74230-08070-E0iAXLH4#..E202011-202410

ANODIZED DARK BROWN,TRIM1#,4#

main74230-08080-B0iAXLH4#..S202011-202410

ANODIZED GUN METAL,TRIM1#,2#

main74230-08090-E0iAXLH4#..L202011-202410

WOLF WOOD,TRIM1#,4#

main74230-08170-B0iAXLH4#..E,X202410

ANODIZED GUN METAL,TRIM1#

main74230-08170-C0iAXLH4#..S202410

BLACK METALLIC,TRIM2#

main74230-08170-C0iAXLH45..X202410

BLACK METALLIC,TRIM1#,2#

main74230-08190-C0iAXLH4#..S202410

XSE PREMIUM,BLACK,TRIM2#

main74230-08190-C0iAXLH4#..S202410

BLACK,TRIM2#,4#

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74240-08080-E0iAXLH4#..X202011-202410

ANODIZED DARK BROWN,TRIM1#,4#

main74240-08080-E0iAXLH4#..E202011-202410

ANODIZED DARK BROWN,TRIM1#

main74240-08090-B0iAXLH4#..S202011-202410

ANODIZED GUN METAL,TRIM1#,2#

main74240-08100-E0iAXLH4#..L202011-202410

WOLF WOOD,TRIM1#,4#

main74240-08200-B0iAXLH4#..E,X202410

ANODIZED GUN METAL,TRIM1#

main74240-08200-C0iAXLH45..X202410

BLACK METALLIC,TRIM2#

main74240-08200-C0iAXLH4#..S202410

BLACK METALLIC,TRIM1#,2#

main74240-08220-C0iAXLH4#..S202410

BLACK,TRIM2#,4#

main74240-08220-C0iAXLH4#..L202410

XSE PREMIUM,BLACK,TRIM2#

9046705172

main90467-05172¥60

9046808048

main90468-08048¥60

4 parts on this diagram · 3 diagrams in section
