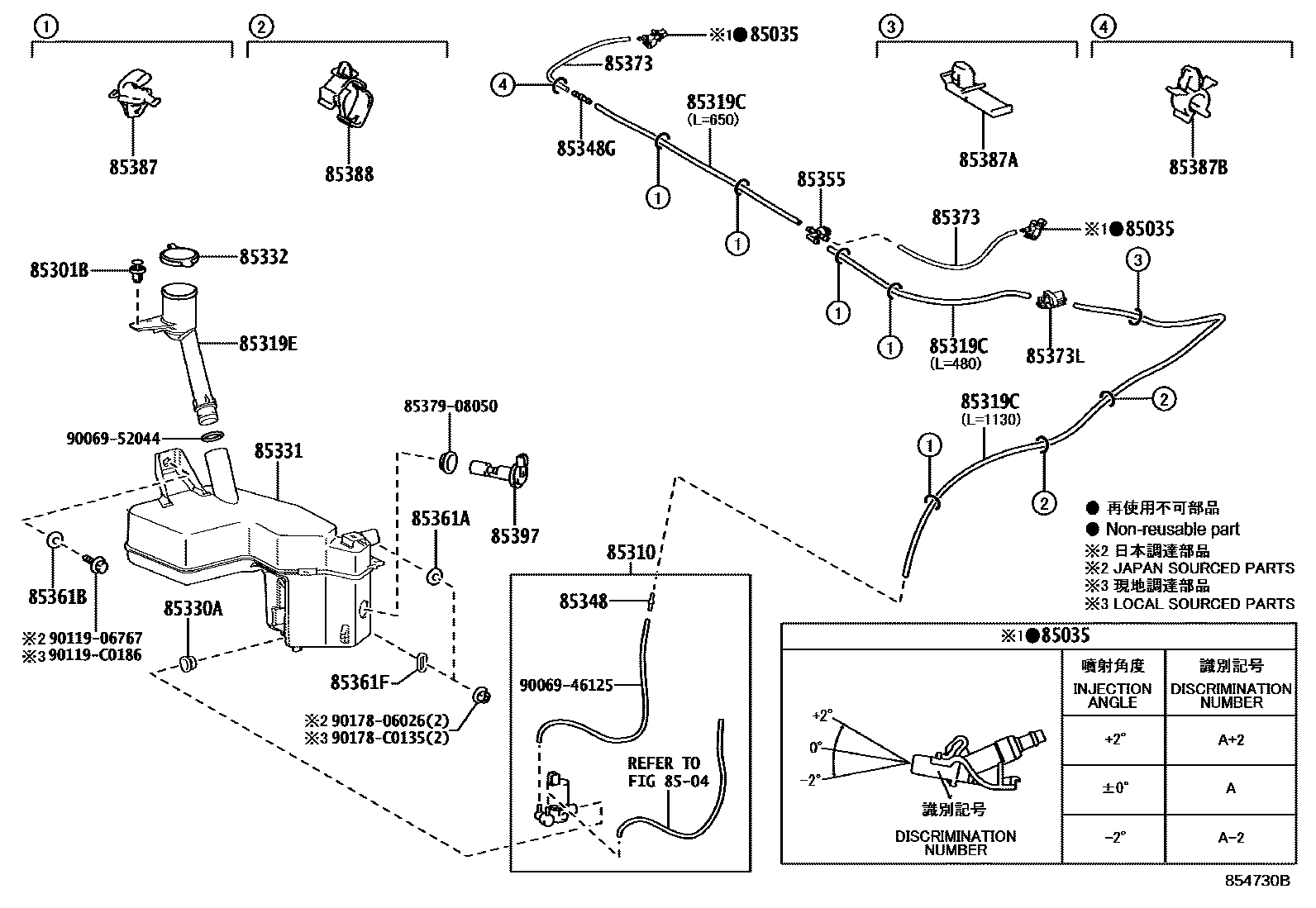

Toyota SIENNA HYBRID — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE +2
ANGLE -2
8504
85301BCLIP, WASHER
(J)
(L)
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319CHOSE, WASHER
TYPE A
TYPE B
TYPE C
85319EINLET WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85331JAR SUB-ASSY, WINDSHIELD WASHER
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85361ABRACKET, WINDSHIELD WASHER, NO.1
85361BBRACKET, WINDSHIELD WASHER, NO.2
85361FBRACKET, WINDSHIELD WASHER, NO.3
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=285
85373LGROMMET, WASHER
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387ACLAMP, WASHER, NO.2
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
85397SWITCH ASSY,LEVEL WARNING
8537908050JOINT
main85379-08050
9006946125
main90069-46125
9006952044
main90069-52044
9011906767
90119C0186
main90119-C0186
9017806026
90178C0135
main90178-C0135
29 parts on this diagram · 1 diagram in section
