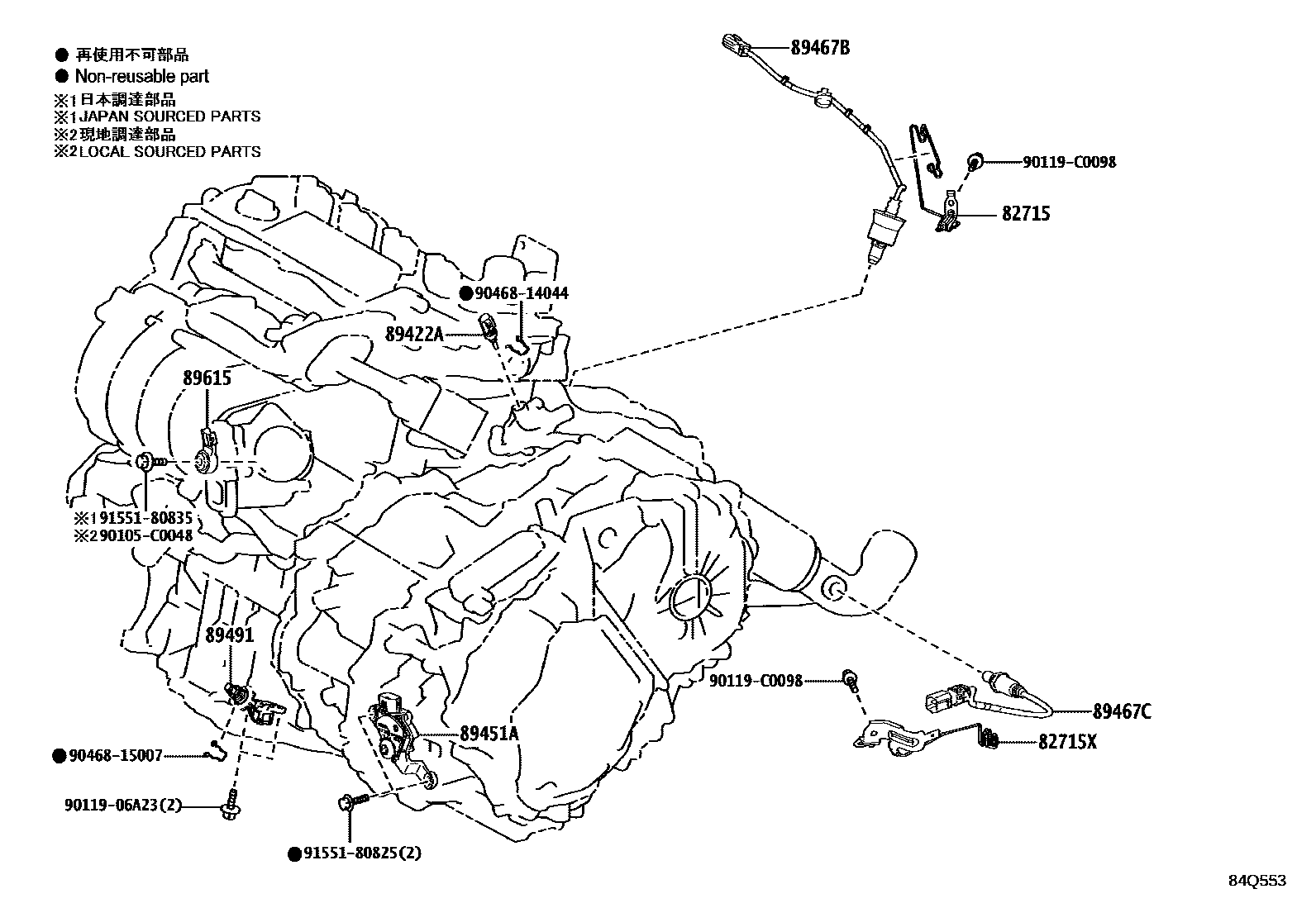

Toyota SIENNA HYBRID — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1CONSOLE BOX 0007 1STEERING 0008 1SEAT 0009 1SIDE LIFT UP SEAT 0010 1DOOR & ROOF 0011 1FLOOR & BACK DOOR 1/2 0012 1FLOOR & BACK DOOR 2/2

82715BRACKET,WIRING HARNESS CLAMP

main8946A-0E010iAXLH4#202112

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-0R830iAXLH40202112-202303

main8946A-08020iAXLH4#202303

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXLH4#¥2,410202112

89451ASENSOR, SHIFT LEVER POSITION

main89451-10010iAXLH4#¥5,900202112

89467BSENSOR, AIR FUEL RATIO

main89467-0E300iAXLH40202112-202303

main89467-0E320iAXLH4#202303

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-08080iAXLH4#202303

main89467-0R130iAXLH40202112-202303

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iAXLH40¥3,670202112-202204

sub89491-33052¥3,330

main89491-33052iAXLH4#¥3,330202205

89615SENSOR, KNOCK CONTROL

main89615-20090iAXLH4#¥2,370202112

90105C0048

main90105-C0048

9011906A23

main90119-06A23¥60

90119C0098

main90119-C0098

9046814044

main90468-14044¥60

9046815007

main90468-15007¥80

9155180825

main91551-80825¥80

9155180835

main91551-80835¥80

15 parts on this diagram · 12 diagrams in section
