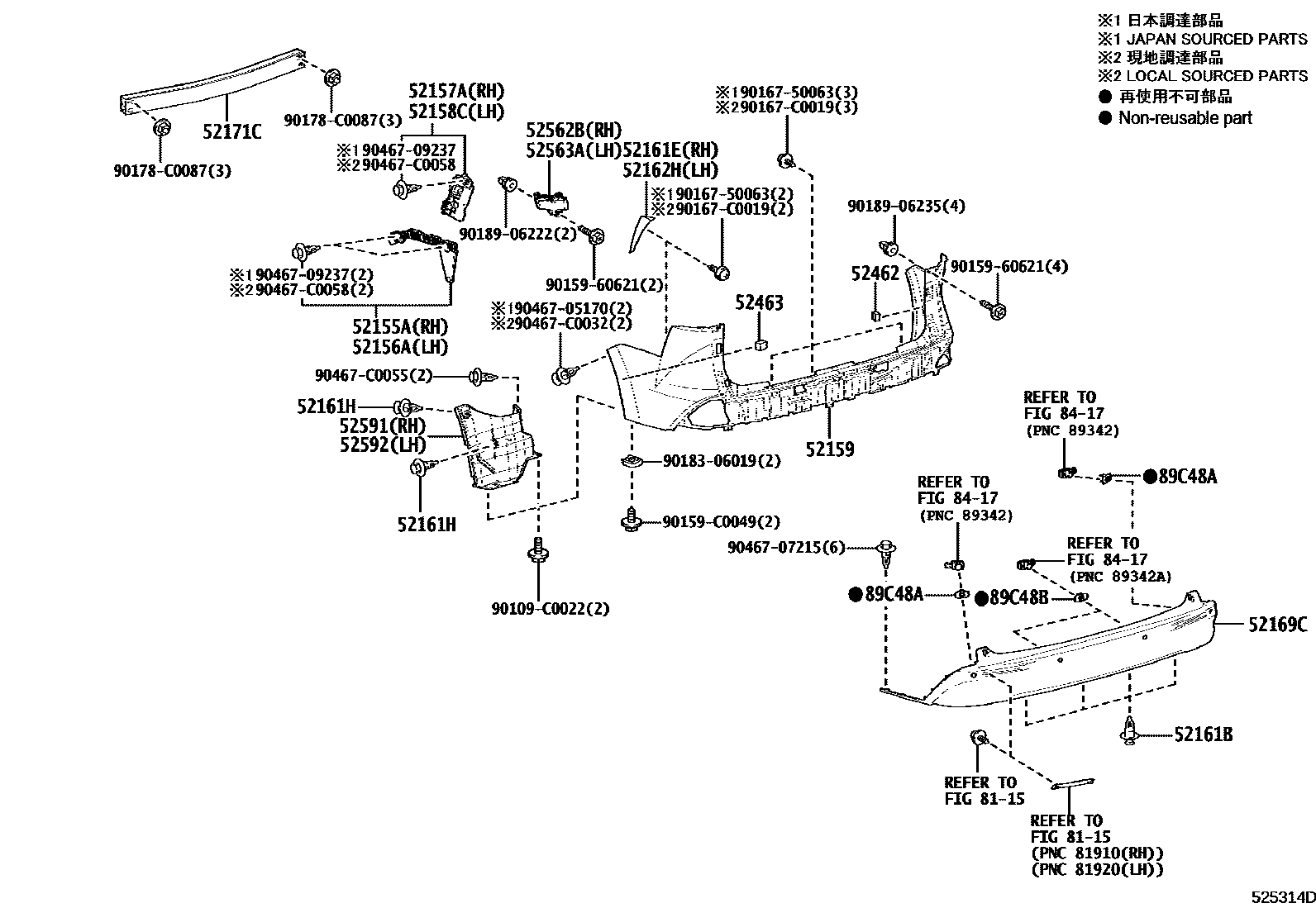

Toyota SIENNA HYBRID — REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
PAINT REQ.
52161BPIECE, REAR BUMPER
52161EEXTENSION, REAR BUMPER SIDE, RH
52161HPIECE, REAR BUMPER
52162HEXTENSION, REAR BUMPER SIDE, LH
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
NO PAINT REQ.
52462PAD, REAR BUMPER, RH
NO PAINT REQ.
52463PAD, REAR BUMPER, LH
NO PAINT REQ.
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
8115
8417
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
DUMMY-MAT BLACK,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8,RH
BLACK MC.,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8,RH
DUMMY-MAT BLACK,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8,LH
BLACK MC.,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8,LH
BLACK MC.,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8,RH
sub89348-08320
DUMMY-MAT BLACK,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8,RH
sub89348-08320
BLACK MC.,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8,LH
sub89348-08330
DUMMY-MAT BLACK,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8,LH
sub89348-08330
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
DUMMY-MAT BLACK,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8
sub89348-08310
DUMMY-MAT BLACK,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8
BLACK MC.,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8
90109C0022
main90109-C0022
9015960621
90159C0049
main90159-C0049
9016750063
90167C0019
main90167-C0019
90178C0087
main90178-C0087
9018306019
9018906222
9018906235
9046705170
9046707215
9046709237
90467C0032
main90467-C0032
90467C0055
main90467-C0055
90467C0058
main90467-C0058
36 parts on this diagram · 2 diagrams in section
