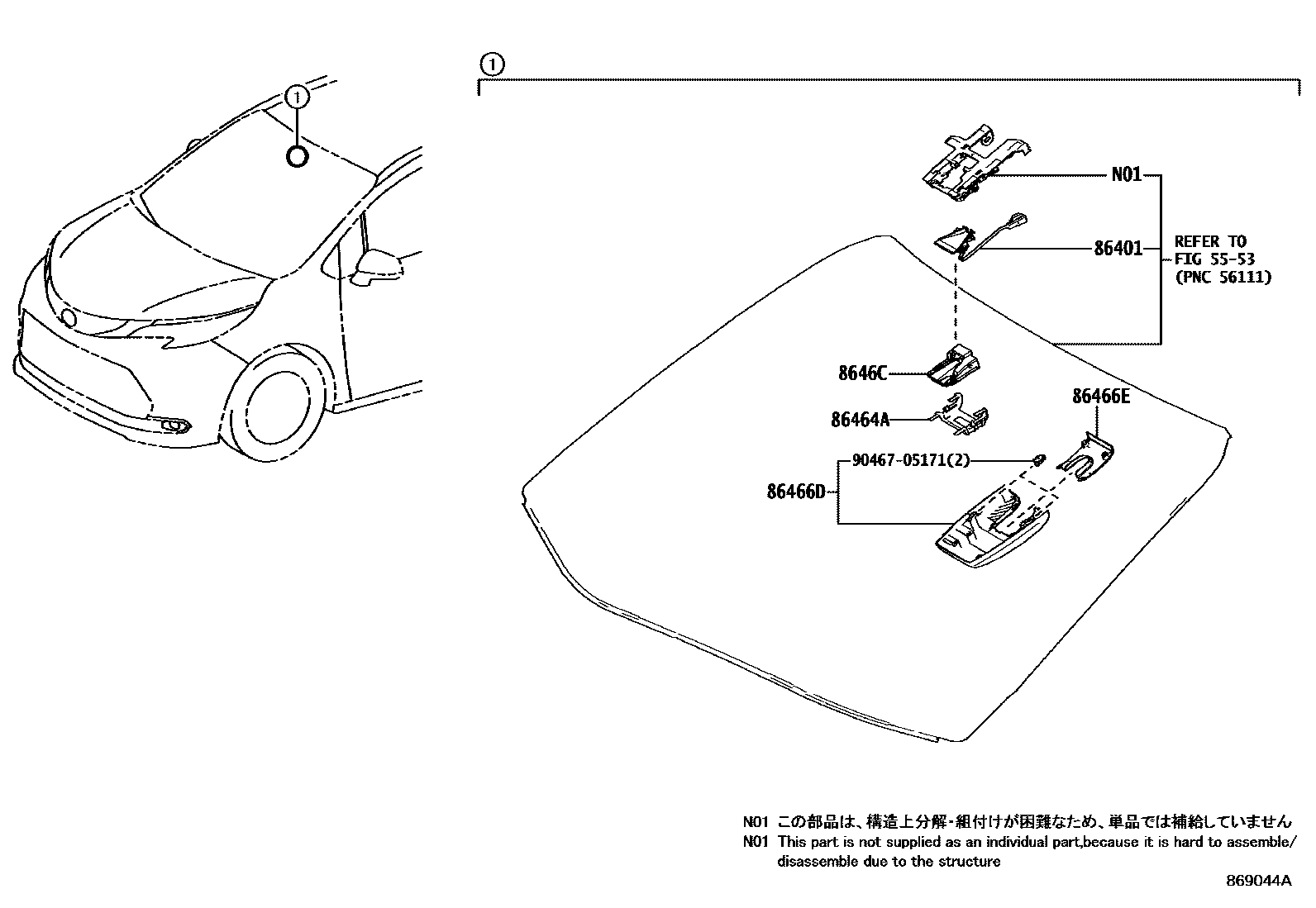

Toyota SIENNA HYBRID — PRE-COLLISION SYSTEM

5553

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-08020iAXLH4#202112

86464ALATCH, FORWARD RECOGNITION

main86464-0E010iAXLH4#202112

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-08040iAXLH4#202112

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-08050iAXLH4#..E,L,U,X202112

main86466-08060iAXLH40..P202112

8646CCAMERA, FORWARD RECOGNITION

main8646C-08030iAXLH40202112-202303

*614

main8646C-08031iAXLH40202303-202404

*614

main8646C-08050iAXLH4#202404-202408

main8646C-08051iAXLH4#202408

9046705171

main90467-05171¥60

7 parts on this diagram · 1 diagram in section
