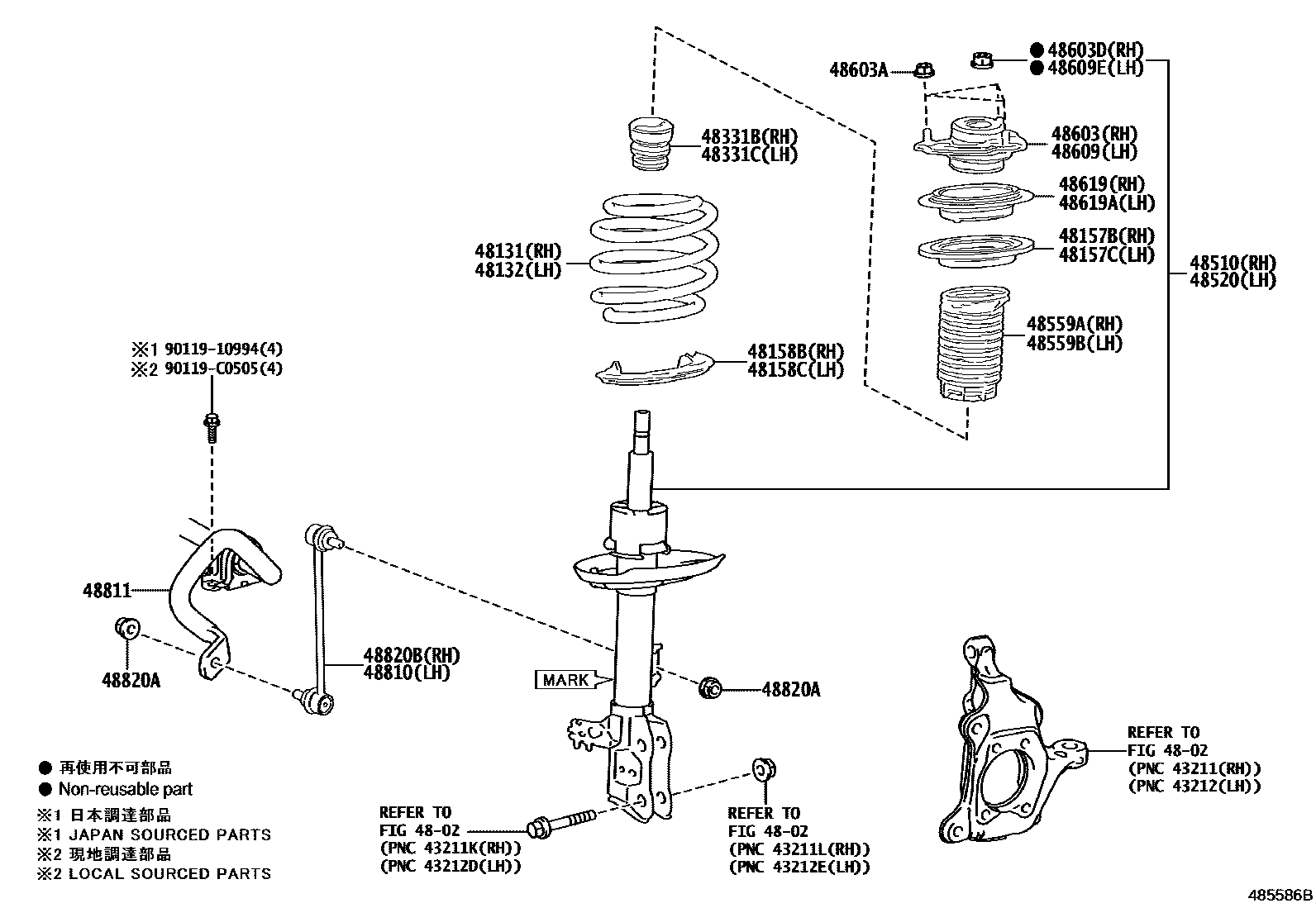

Toyota SIENNA HYBRID — FRONT SPRING & SHOCK ABSORBER
4802
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-08160
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-08160
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
(J)
(L)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
(J)
(L)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
(J)
(L)
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48820ANUT(FOR FRONT STABILIZER LINK)
(L)
(J)
48820BLINK ASSY, FRONT STABILIZER, RH
9011910994
90119C0505
main90119-C0505
26 parts on this diagram · 1 diagram in section
