Toyota SIENNA HYBRID — FRONT SEAT & SEAT TRACK

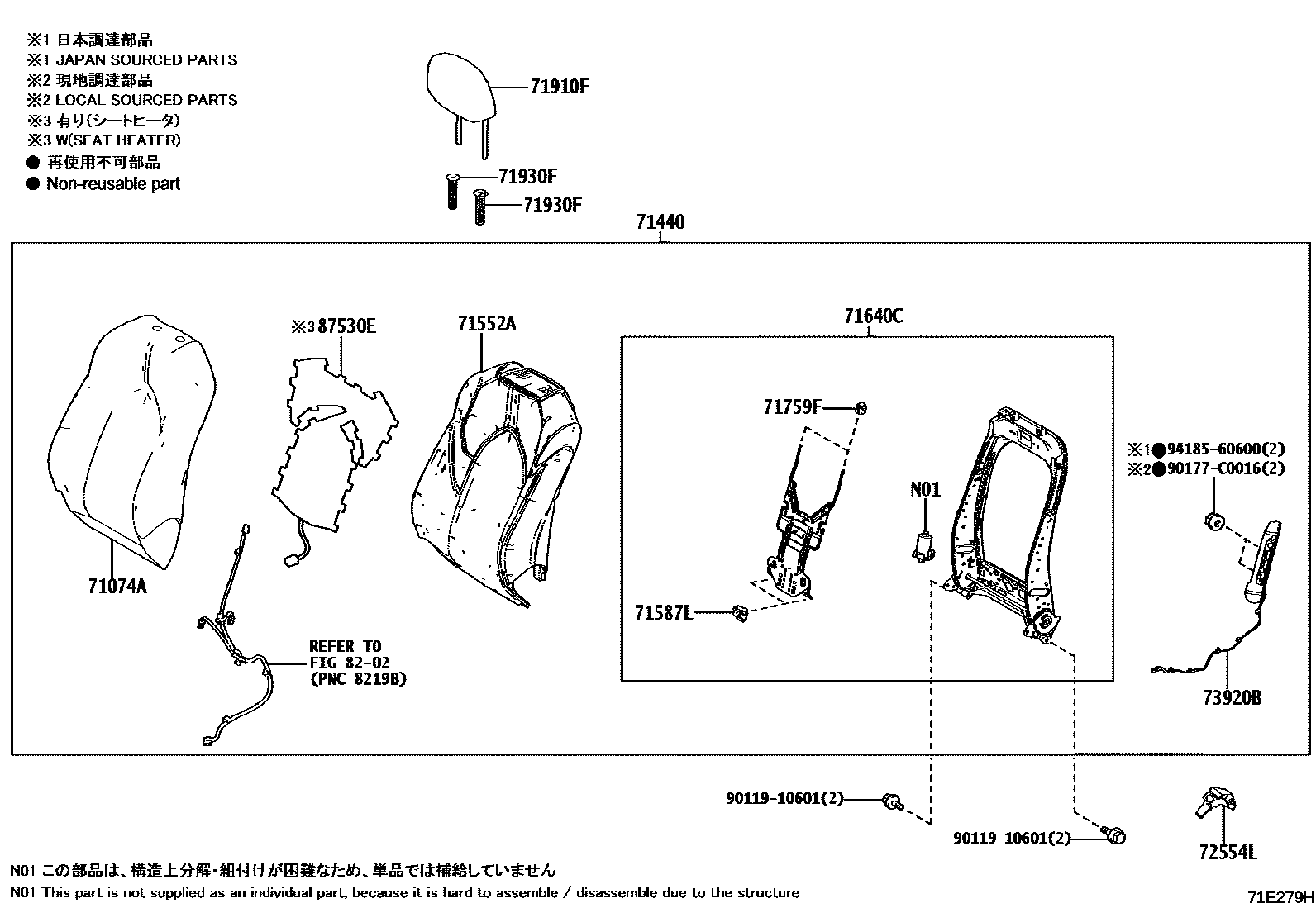

Parts diagram
71074ACOVER SUB-ASSY, FRONT SEATBACK, LH
main71074-08300-B2i202112
LT GREY,TRIM1#
main71074-08310-E1i202112-202303
NEUTRAL BEIGE,TRIM4#
main71074-08310-P0i202112-202303
GRAY,TRIM1#
main71074-08311-E2i202303-202404
NEUTRAL BEIGE,TRIM4#
main71074-08311-P1i202303-202404
GRAY,TRIM1#
main71074-08312-C1i202404-202509
BLACK,TRIM2#
main71074-08312-P3i202404-202509
GRAY,TRIM1#
main71074-08320-C5i202112-202303
BLACK,TRIM2#
main71074-08320-E5i202112-202303
NEUTRAL BEIGE,TRIM4#
main71074-08320-E6i202112-202303
NOBLE BROWN,TRIM4#
main71074-08321-C6i202303-202404
BLACK,TRIM2#
main71074-08321-E7i202303-202404
NEUTRAL BEIGE,TRIM4#
main71074-08321-E8i202303-202404
NOBLE BROWN,TRIM4#
main71074-08322-A0i202404-202509
FROMAGE,TRIM0#
main71074-08322-C7i202404-202509
BLACK,TRIM2#
main71074-08322-E9i202404-202509
NOBLE BROWN,TRIM4#
71440BACK ASSY, FRONT SEAT, LH
main71440-08380-B2i202112
LT GREY,TRIM1#
main71440-08390-E0i202112-202303
NEUTRAL BEIGE,TRIM4#
main71440-08390-P0i202112-202303
GRAY,TRIM1#
main71440-08391-B0i202303-202404
GRAY,TRIM1#
main71440-08391-E0i202303-202404
NEUTRAL BEIGE,TRIM4#
main71440-08392-B1i202404
GRAY,TRIM1#
main71440-08392-C0i202404
BLACK,TRIM2#
main71440-08400-C5i202112-202303
BLACK,TRIM2#
main71440-08400-E0i202112-202303
NEUTRAL BEIGE,TRIM4#
main71440-08401-C0i202303-202404
BLACK,TRIM2#
main71440-08401-E0i202303-202404
NEUTRAL BEIGE,TRIM4#
main71440-08402-A0i202404
FROMAGE,TRIM0#
main71440-08402-C0i202404
BLACK,TRIM2#
main71440-08410-C5i202112-202303
BLACK,TRIM2#
main71440-08410-E5i202112-202303
NOBLE BROWN,TRIM4#
main71440-08411-C0i202303-202404
BLACK,TRIM2#
main71440-08411-E0i202303-202404
NOBLE BROWN,TRIM4#
main71440-08412-C0i202404
BLACK,TRIM2#
main71440-08412-E0i202404
NOBLE BROWN,TRIM4#
71552APAD, FRONT SEATBACK, LH
main71552-08080i202112
main71552-08090i202112
71587LPROTECTOR, FRONT SEATBACK EDGE, LH
main71587-06010i202112
71640CSPRING ASSY, FRONT SEATBACK, LH
main71640-08090i202112
main71640-08100i202112
main71640-08110i202112
71759FHOOK, FRONT SEATBACK, LH
main71759-06030i202112
71910FHEADREST ASSY, FRONT SEAT, LH
main71910-08210-B0i202112
LT GREY,TRIM1#
main71910-08220-B5i202112-202303
GRAY,TRIM1#
main71910-08220-C2i202112-202303
BLACK,TRIM2#
main71910-08220-E2i202112-202303
NOBLE BROWN,TRIM4#
main71910-08220-E3i202112-202303
NEUTRAL BEIGE,TRIM4#
main71910-08221-B6i202303-202404
GRAY,TRIM1#
main71910-08221-C3i202303-202404
BLACK,TRIM2#
main71910-08221-E4i202303-202404
NEUTRAL BEIGE,TRIM4#
main71910-08221-E5i202303-202404
NOBLE BROWN,TRIM4#
main71910-08222-A0i202404
FROMAGE,TRIM01
main71910-08222-A1i202404
FROMAGE/BEIGE,TRIM01
main71910-08222-A1i202404
FROMAGE/BEIGE,TRIM0#
main71910-08222-B8i202404
GRAY,TRIM1#
main71910-08222-C4i202404
BLACK,TRIM2#
main71910-08222-C4i202404-202509
BLACK,TRIM20
main71910-08222-C5i202404-202509
BLACK/BEIGE,TRIM20
main71910-08222-E6i202404-202509
NOBLE BROWN,TRIM4#
71930FSUPPORT ASSY, FRONT SEAT HEADREST, LH
main71930-06070-A0i202404
W(LOCK),FROMAGE,TRIM0#
main71930-06070-B2i202112
W(LOCK),NEUTRAL WARM GRAY,TRIM1#
main71930-06070-C0i202112-202303
W(LOCK),BLACK,TRIM1#,2#,40
main71930-06070-C0i202112-202303
W(LOCK),BLACK,TRIM1#,2#,4#
main71930-06070-C0i202112-202303
W(LOCK),BLACK,TRIM1#,2#
main71930-06070-C0i202404
W(LOCK),BLACK,TRIM2#
main71930-06070-C0i202404
W(LOCK),BLACK,TRIM2#,4#
main71930-06070-C0i202303
W(LOCK),BLACK,TRIM2#,4#
main71930-06070-C0i202303-202404
W(LOCK),BLACK,TRIM2#,41
main71930-06070-E0i202112-202404
W(LOCK),NEUTRAL BEIGE,TRIM41
main71930-06070-E0i202112-202404
W(LOCK),NEUTRAL BEIGE,TRIM4#
main71930-06070-E0i202303-202404
W(LOCK),NEUTRAL BEIGE,TRIM41
main71930-06070-E0i202112-202303
W(LOCK),NEUTRAL BEIGE,TRIM4#
main71931-06060-A0i202404
W/O(LOCK),FROMAGE,TRIM0#
main71931-06060-B2i202112
W/O(LOCK),NEUTRAL WARM GRAY,TRIM1#
main71931-06060-C0i202112-202303
W/O(LOCK),BLACK,TRIM1#,2#,4#
main71931-06060-C0i202112-202303
W/O(LOCK),BLACK,TRIM1#,2#
main71931-06060-C0i202112-202303
W/O(LOCK),BLACK,TRIM1#,2#,40
main71931-06060-C0i202404
W/O(LOCK),BLACK,TRIM2#,4#
main71931-06060-C0i202404
W/O(LOCK),BLACK,TRIM2#
main71931-06060-C0i202303-202404
W/O(LOCK),BLACK,TRIM2#,41
main71931-06060-C0i202303
W/O(LOCK),BLACK,TRIM2#,4#
main71931-06060-E0i202112-202404
W/O(LOCK),NEUTRAL BEIGE,TRIM4#
main71931-06060-E0i202112-202404
W/O(LOCK),NEUTRAL BEIGE,TRIM41
main71931-06060-E0i202112-202303
W/O(LOCK),NEUTRAL BEIGE,TRIM4#
main71931-06060-E0i202303-202404
W/O(LOCK),NEUTRAL BEIGE,TRIM41
72554LPROTECTOR, RECLINING COVER, LH
main72554-08010i202112
73920BAIRBAG ASSY, FRONT SEAT, LH
main73920-08030i202112
8202
87530EHEATER ASSY, FRONT SEATBACK, LH
main87530-08060i202112
9011910601
main90119-10601¥90
90177C0016
main90177-C0016
9418560600
main94185-60600¥70

15 parts on this diagram · 12 diagrams in section
