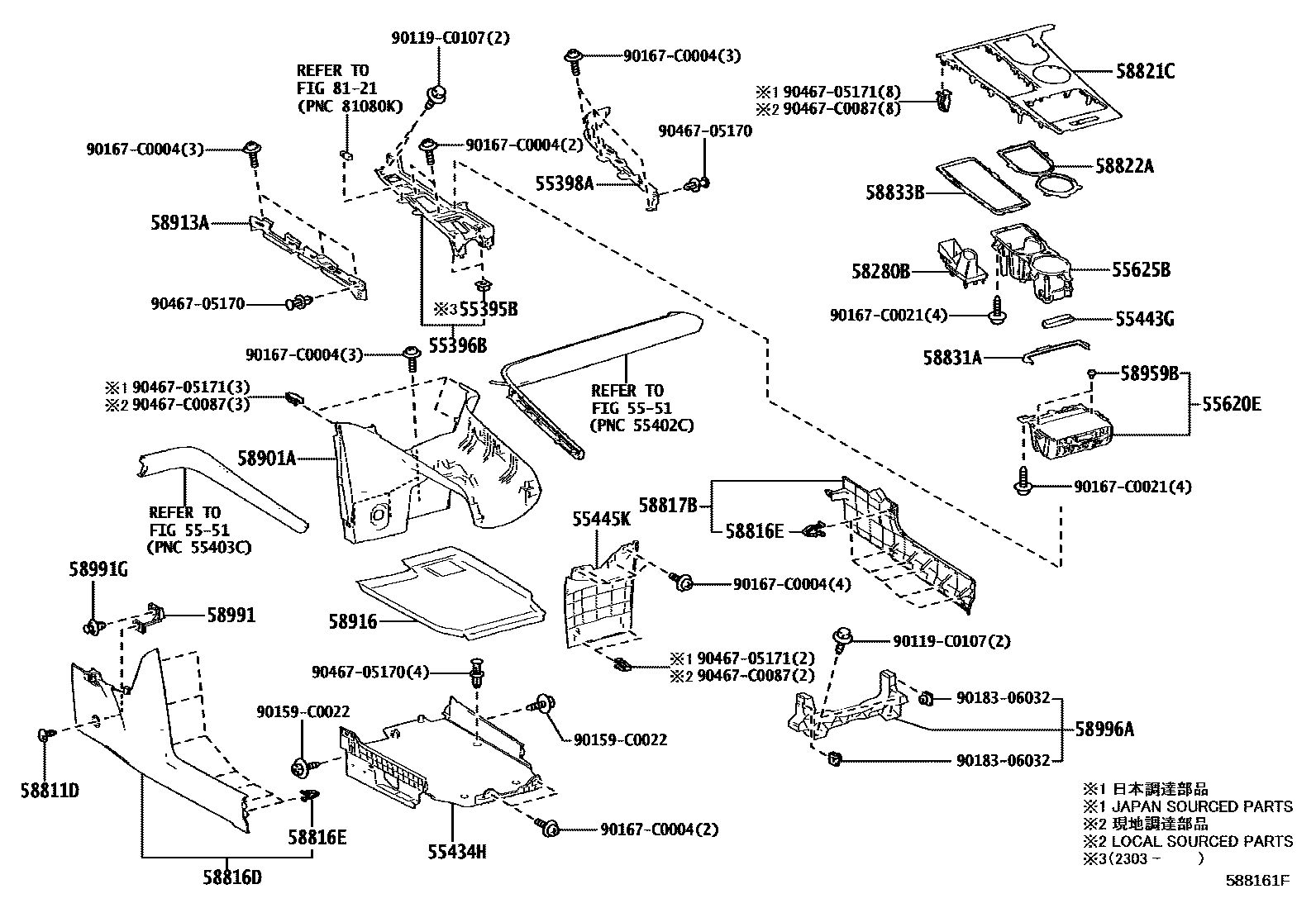

Toyota SIENNA HYBRID — CONSOLE BOX & BRACKET
55395BBRACKET, CONSOLE MOUNTING, NO.3
55396BBRACKET, CONSOLE MOUNTING, NO.4
55398ABRACKET, CONSOLE MOUNTING, NO.6
55434HPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
NEUTRAL WARM GRAY,TRIM1#
NEUTRAL WARM GRAY,TRIM10
BLACK,TRIM11,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
55443GKNOB, INSTRUMENT PANEL BOX DOOR
55445KTRAY, INSTRUMENT PANEL
NEUTRAL WARM GRAY,TRIM1#
NEUTRAL WARM GRAY,TRIM10
BLACK,TRIM11,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
5551
55620EHOLDER ASSY, INSTRUMENT PANEL CUP
ANODIZED DARK BROWN,TRIM1#,2#,4#
ANODIZED DARK BROWN,TRIM1#
ANODIZED DARK BROWN,TRIM1#,2#
DARK METAL WOOD,TRIM2#
DARK METAL WOOD,TRIM2#,41
WOLF WOOD,TRIM0#,1#,40,41
WOLF WOOD,TRIM0#,1#,40
WOLF WOOD,TRIM0#,1#,41
WOLF WOOD,TRIM0#
55625BTRAY, INSTRUMENT PANEL CUP HOLDER
58280BBOOT ASSY, SHIFT LEVER
BLACK,TRIM1#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM1#,2#
58811DCLIP(FOR CONSOLE BOX)
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
58816DINSERT, CONSOLE BOX, FRONT NO.1
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM11,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
58816ECLIP, CONSOLE BOX INSERT, FRONT
(J)
(L)
58817BINSERT, CONSOLE BOX, FRONT NO.2
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM11,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
58821CPANEL, CONSOLE, UPPER
ANODIZED DARK BROWN,TRIM1#
ANODIZED DARK BROWN,TRIM1#,2#
ANODIZED DARK BROWN,TRIM1#,2#,4#
DARK METAL WOOD,TRIM2#
DARK METAL WOOD,TRIM2#,41
WOLF WOOD,TRIM0#,1#,41
WOLF WOOD,TRIM0#,1#,40
WOLF WOOD,TRIM0#,1#,40,41
WOLF WOOD,TRIM0#
58822APANEL, CONSOLE, UPPER REAR
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
58901ABOX SUB-ASSY, CONSOLE, REAR
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM1#,2#,4#
BLACK,TRIM11,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
58913APANEL, BOX, NO.3
NEUTRAL WARM GRAY,TRIM1#
NEUTRAL WARM GRAY,TRIM10
BLACK,TRIM1#,2#,4#
BLACK,TRIM11,4#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
58916MAT, BOX BOTTOM
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM0#,2#,4#
BLACK,TRIM11,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM2#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58991BRACKET, CONSOLE BOX MOUNTING, UPPER
58991GCLIP
BLACK
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8121
90119C0107
main90119-C0107
90159C0022
main90159-C0022
90167C0004
main90167-C0004
90167C0021
main90167-C0021
9018306032
9046705170
9046705171
90467C0087
main90467-C0087
34 parts on this diagram · 2 diagrams in section
