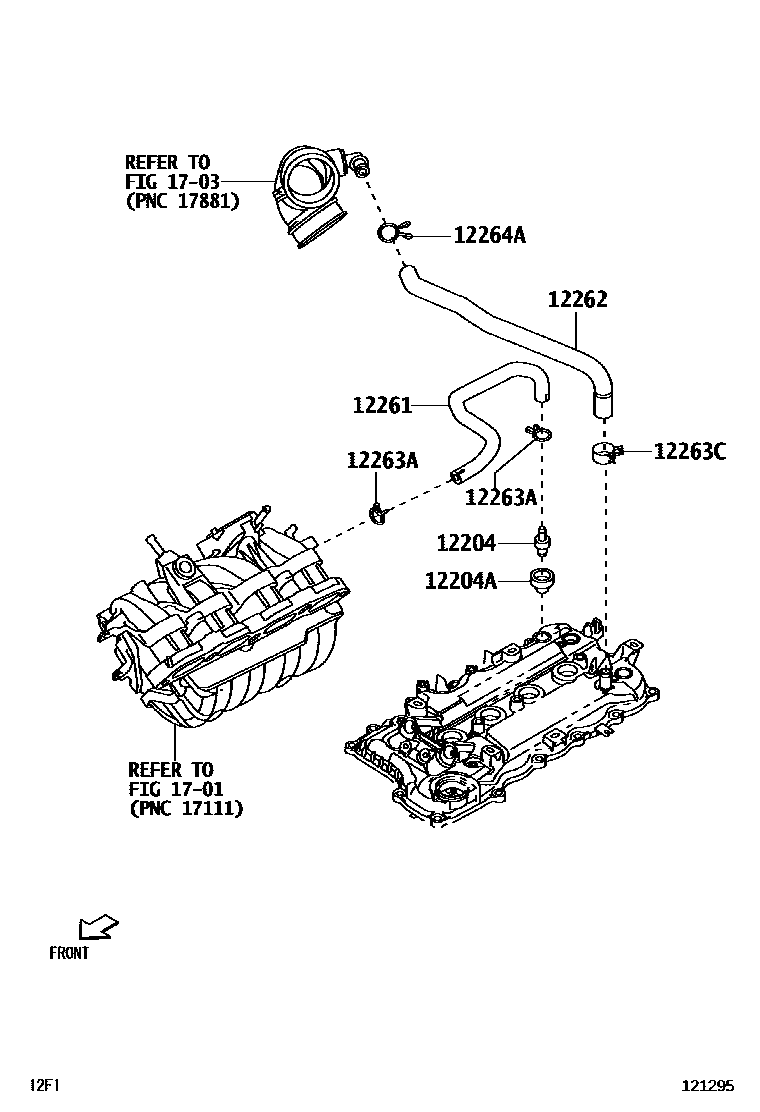

Toyota RUSH — VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-0Y020i2NRVE..F850201812-202310

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-T0013i2NRVE..F850201812-202310

12261HOSE, VENTILATION

main12261-BZ160i2NRVE..F850201812-202310

12262HOSE, VENTILATION, NO.2

main12262-BZ080i2NRVE..F850201812-202310

12263ACLIP(FOR VENTILATION HOSE)

main90466-T0061i2NRVE..F850201812-202310

12263CCLIP(FOR VENTILATION HOSE)

main90044-67207i2NRVE..F850¥260201812-202310

12264ACLIP(FOR VENTILATION HOSE)

main90466-T0063i2NRVE..F850¥120201812-202310

1701

1703

9 parts on this diagram · 1 diagram in section
