Toyota RUSH — SPEAKER

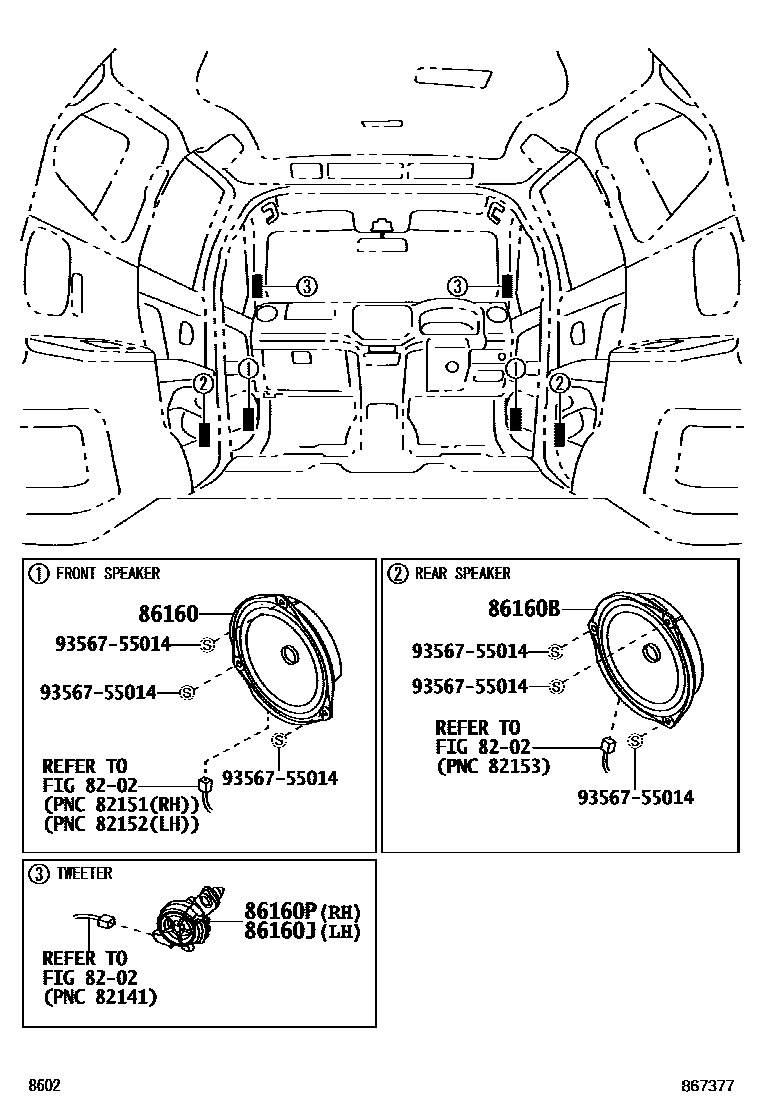

Parts diagram
8202
86160SPEAKER ASSY, FRONT NO.1
main86160-BZ230i201812-202211
sub86160-BZ232
main86160-BZ232i202212-202310
86160BSPEAKER ASSY, REAR
main86160-BZ230i201812-202211
sub86160-BZ232
main86160-BZ232i202212-202310
86160JSPEAKER ASSY, FRONT NO.3
main86150-BZ130i201812-202310
86160PSPEAKER ASSY, FRONT NO.2
main86150-BZ120i201812-202310
9356755014
main93567-55014¥110

6 parts on this diagram · 1 diagram in section
