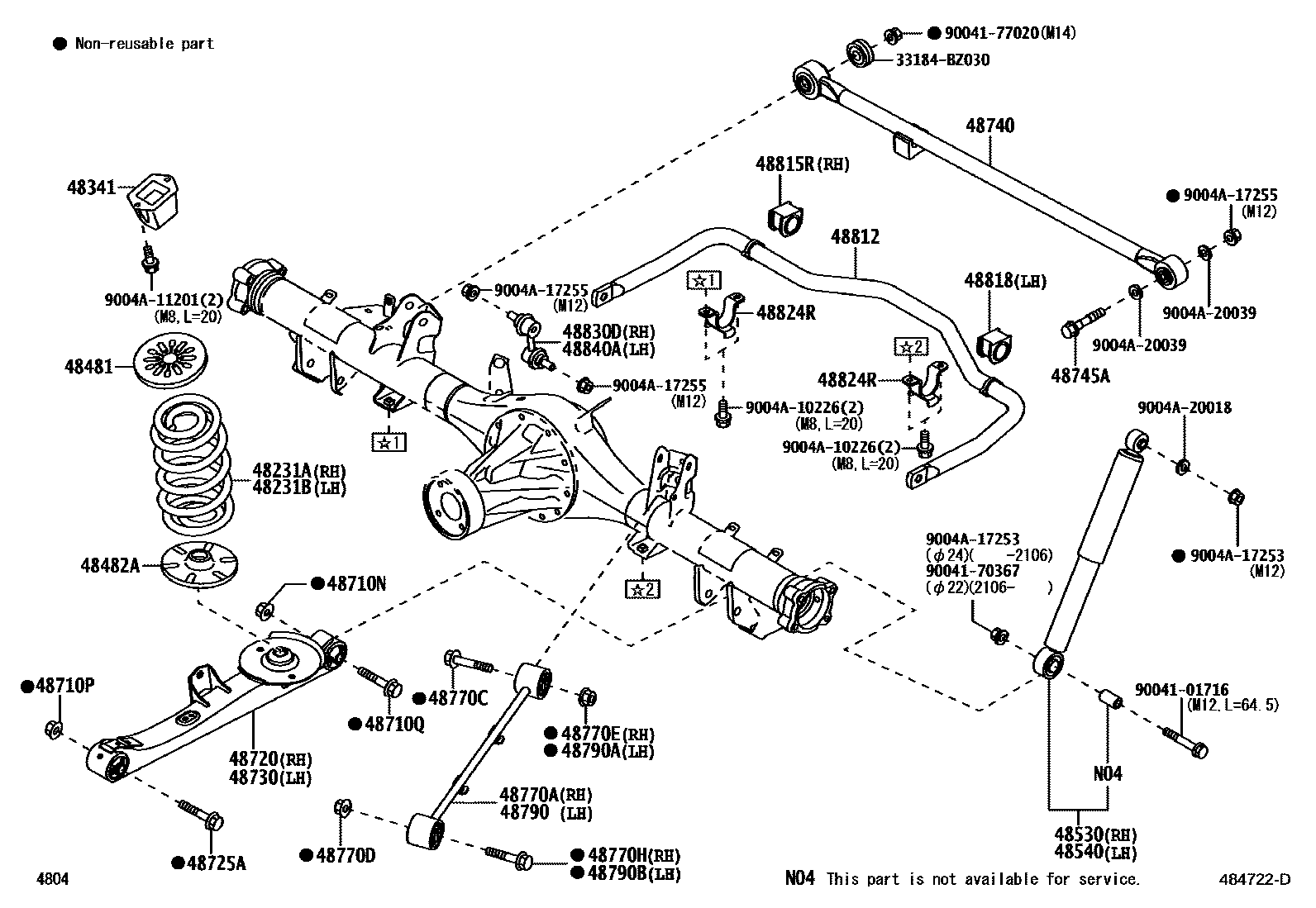

Toyota RUSH — REAR SPRING & SHOCK ABSORBER
48482ASEAT, REAR SPRING, LOWER
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-BZ220
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-BZ220
48710NNUT, NO.1(FOR REAR LOWER CONTROL ARM)
48710PNUT, NO.2(FOR REAR LOWER CONTROL ARM)
48710QBOLT(FOR REAR LOWER CONTROL ARM)
48720ARM ASSY, LOWER CONTROL, RH
48725ABOLT(FOR LOWER CONTROL ARM)
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
48770AARM ASSY, UPPER CONTROL, REAR RH
48770CBOLT(FOR REAR UPPER CONTROL ARM)
48770DNUT(FOR REAR UPPER CONTROL ARM)
48770ENUT, NO.1(FOR REAR UPPER CONTROL ARM RH)
48770HBOLT(FOR REAR UPPER CONTROL ARM RH)
48790ARM ASSY, UPPER CONTROL, REAR LH
48790ANUT, NO.1(FOR REAR UPPER CONTROL ARM LH)
48790BBOLT(FOR REAR UPPER CONTROL ARM LH)
48812BAR, STABILIZER, REAR
48815RBUSH, STABILIZER(FOR REAR)
RH
48818BUSH, STABILIZER, REAR
LH
48824RBRACKET, STABILIZER(FOR REAR)
48830DLINK ASSY, REAR STABILIZER, RH
48840ALINK ASSY, REAR STABILIZER, LH
33184BZ030WEIGHT, DYNAMIC DAMPER
main33184-BZ030
9004101716
9004170367
9004177020
9004A10226
main9004A-10226
9004A11201
main9004A-11201
9004A17253
main9004A-17253
9004A17255
main9004A-17255
9004A20018
9004A20039
39 parts on this diagram · 1 diagram in section
