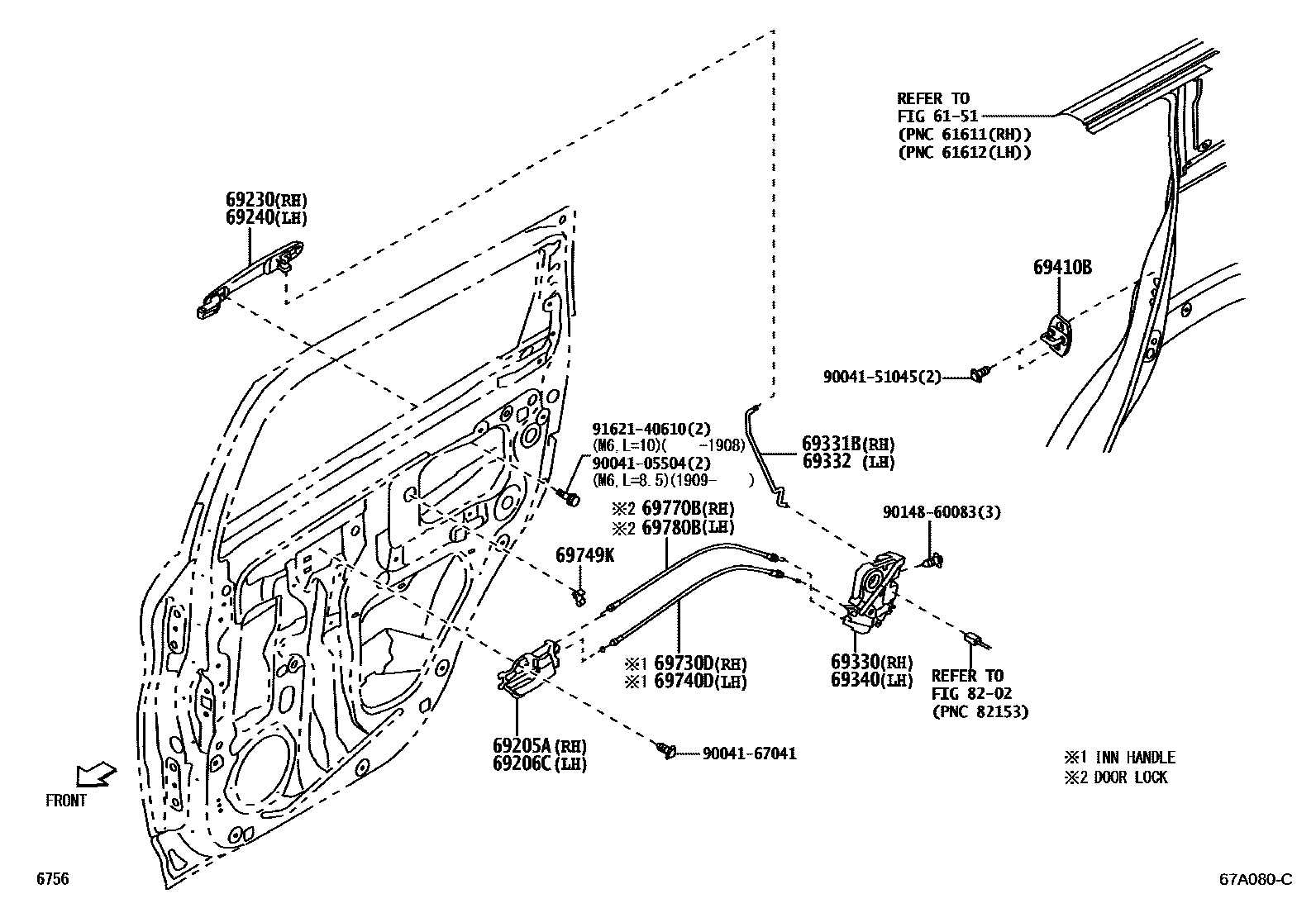

Toyota RUSH — REAR DOOR LOCK & HANDLE
6151
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM1#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM1#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE,W09,MAKER:SIPRO
SILVER ME.,S28,MAKER:SIPRO
GRAY ME,S43,MAKER:SIPRO
RED ME.,R68,MAKER:SIPRO
RED ME.,R67,MAKER:SIPRO
BLUE ME.,B77,MAKER:SIPRO
BLUE MICA,B85,MAKER:SIPRO
WHITE,W09,MAKER:DELLOYD
SILVER ME.,S28,MAKER:DELLOYD
RED ME.,R67,MAKER:DELLOYD
BLUE ME.,B77,MAKER:DELLOYD
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE,W09,MAKER:SIPRO
SILVER ME.,S28,MAKER:SIPRO
GRAY ME,S43,MAKER:SIPRO
RED ME.,R68,MAKER:SIPRO
RED ME.,R67,MAKER:SIPRO
BLUE ME.,B77,MAKER:SIPRO
BLUE MICA,B85,MAKER:SIPRO
WHITE,W09,MAKER:DELLOYD
SILVER ME.,S28,MAKER:DELLOYD
RED ME.,R67,MAKER:DELLOYD
BLUE ME.,B77,MAKER:DELLOYD
69330LOCK ASSY, REAR DOOR, RH
69331BROD, REAR DOOR LOCK OPEN, RH
69332ROD, REAR DOOR LOCK OPEN, LH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
INN HANDLE SIDE
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
INN HANDLE SIDE
69749KCLAMP, REAR DOOR LOCK
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
DOOR LOCK
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
DOOR LOCK
8202
9004105504
9004151045
9004167041
9014860083
9162140610
21 parts on this diagram · 1 diagram in section
