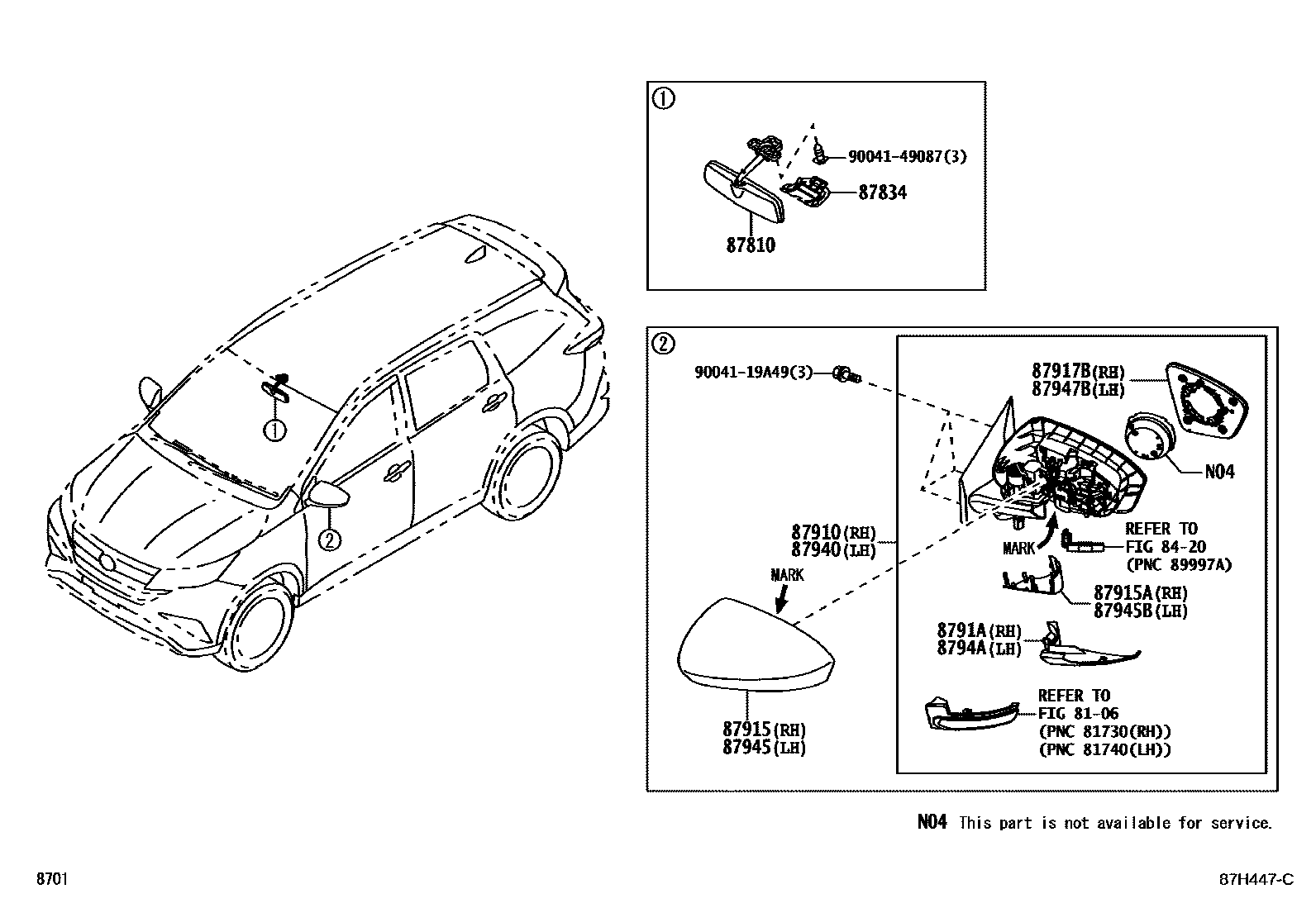

Toyota RUSH — MIRROR

8106

8420

87810MIRROR ASSY, INNER REAR VIEW

main87810-BZ280-C0iF850201812-202310

BLACK,TRIM1#

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-BZ140-B0iF850201812-202310

LT.GRAY,TRIM1#

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-BZC20iF850201812-201912

MARK=AWP

main87910-BZC20iF850201912-202310

87915COVER, OUTER MIRROR, RH

main87915-BZ520iF850201812-202310

MARK=AWP

main87915-BZ600iF850201912-202310

PAINT REQ.,MARK=DELLOYD

87915ACOVER, OUTER MIRROR, RH

main8791B-BZ010iF850201812-201912

MARK=AWP

main8791B-BZ010iF850201912-202310

87917BMIRROR, OUTER REAR VIEW, RH

main87917-BZ180iF850201812-201912

MARK=AWP

main87917-BZ180iF850201912-202310

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-BZ010iF850201812-201912

MARK=AWP

main8791A-BZ010iF850201912-202310

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-BZB80iF850201812-201912

MARK=AWP

main87940-BZB80iF850201912-202310

87945COVER, OUTER MIRROR, LH

main87945-BZ530iF850201812-202310

MARK=AWP

main87945-BZ600iF850201912-202310

PAINT REQ.,MARK=DELLOYD

87945BCOVER, OUTER MIRROR, LH

main8794B-BZ010iF850201812-201912

MARK=AWP

main8794B-BZ010iF850201912-202310

87947BMIRROR, OUTER REAR VIEW, LH

main87947-BZ180iF850201812-201912

MARK=AWP

main87947-BZ180iF850201912-202310

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-BZ010iF850201812-201912

MARK=AWP

main8794A-BZ010iF850201912-202310

9004119A49

main90041-19A49¥110

9004149087

main90041-49087¥120

16 parts on this diagram · 1 diagram in section
