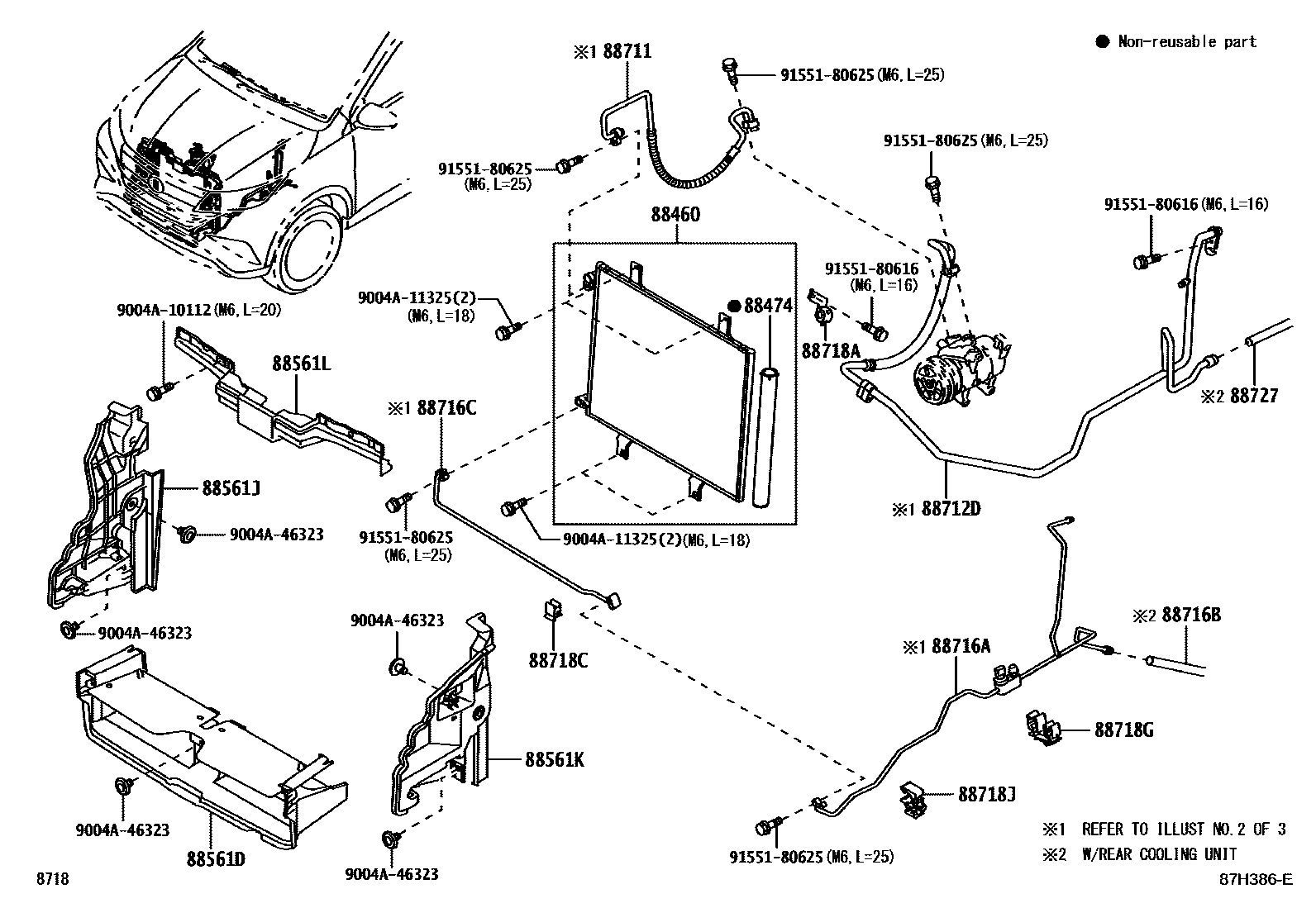

Toyota RUSH — HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

88460CONDENSER ASSY, COOLER

main88460-BZ240iF850201812-202310

88474DRYER, COOLER

main88474-B2010iF850¥4,430201812-202310

88561DGRILLE, AIR INLET NO.3

main88561-BZ460iF850201812-202310

88561JGRILLE, AIR INLET NO.1

main88561-BZ440iF850201812-202310

88561KGRILLE, AIR INLET NO.2

main88561-BZ450iF850201812-202310

88561LGRILLE, AIR INLET NO.4

main88561-BZ510iF850201812-202310

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-BZ561iF850201812-202310

88712DHOSE, SUCTION

main88712-BZ591iF850201812-202310

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-BZE20iF850201812-202310

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-BZ730iF850201812-201911

main88716-BZE90iF850201912-202310

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-BZB70iF850201812-202310

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-BZ620iF850201812-202310

88718CCLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

main88718-BZ280iF850201812-202310

88718GCLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)

main88718-BZ550iF850201812-202310

88718JCLAMP, NO.4(FOR COOLER REFRIGERANT HOSE)

main88718-BZ660iF850201812-202310

88727TUBE, SUCTION, NO.2

main88717-BZ401iF850201812-201911

main88717-BZ460iF850201912-202310

9004A10112

main9004A-10112

9004A11325

main9004A-11325

9004A46323

main9004A-46323¥170

9155180616

main91551-80616¥60

9155180625

main91551-80625¥60

21 parts on this diagram · 3 diagrams in section
