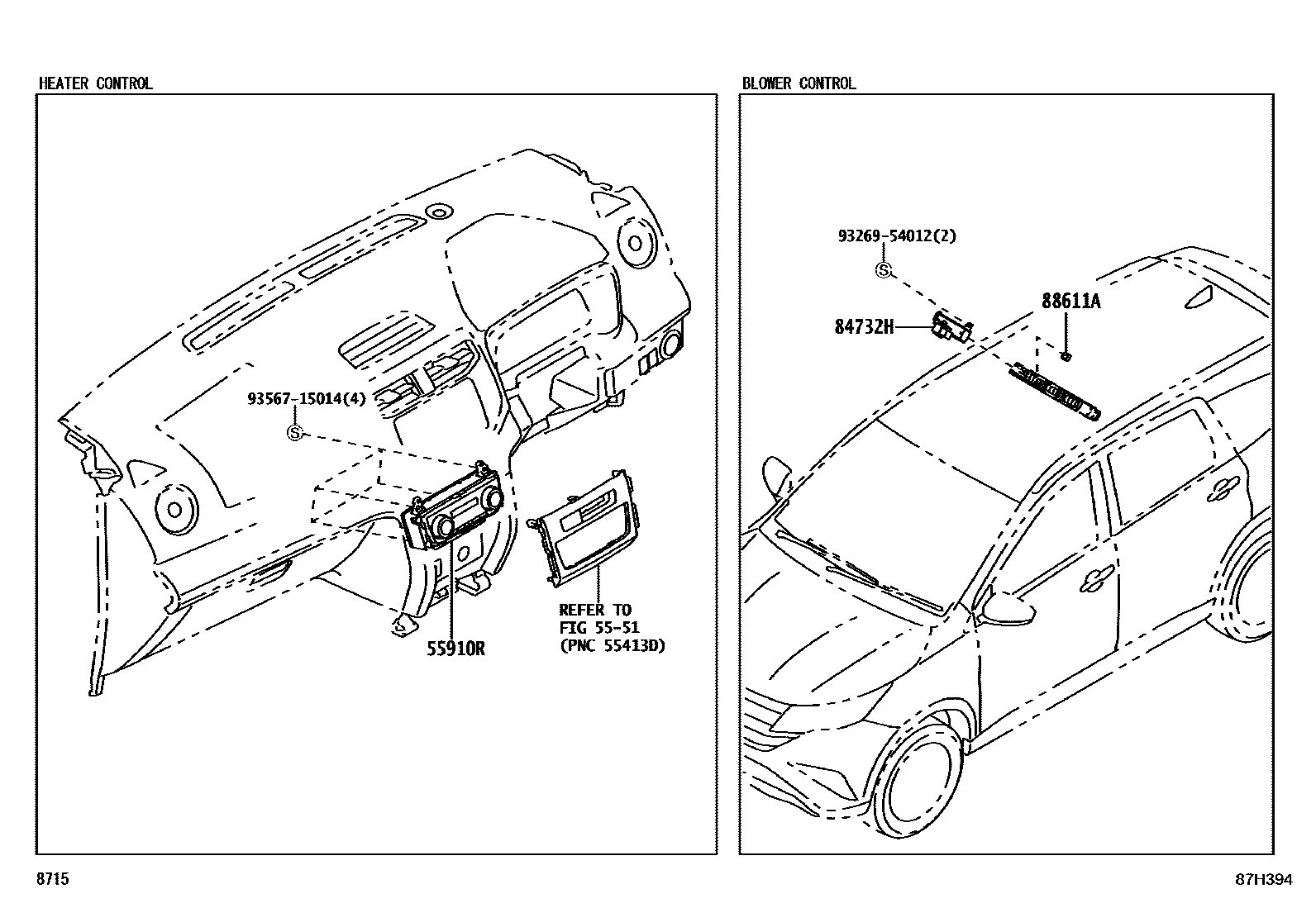

Toyota RUSH — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

5551

55910RCONTROL ASSY, HEATER

main55910-B0050iF850201812-202310

84732HSWITCH, HEATER BLOWER

main88470-BZ050iF850201812-202310

88611AKNOB, COOLER CONTROL SWITCH

main88611-BZ080-B0iF850201812-202310

LT.GRAY,TRIM1#

9326954012

main93269-54012¥70

9356715014

main93567-15014¥120

6 parts on this diagram · 3 diagrams in section
