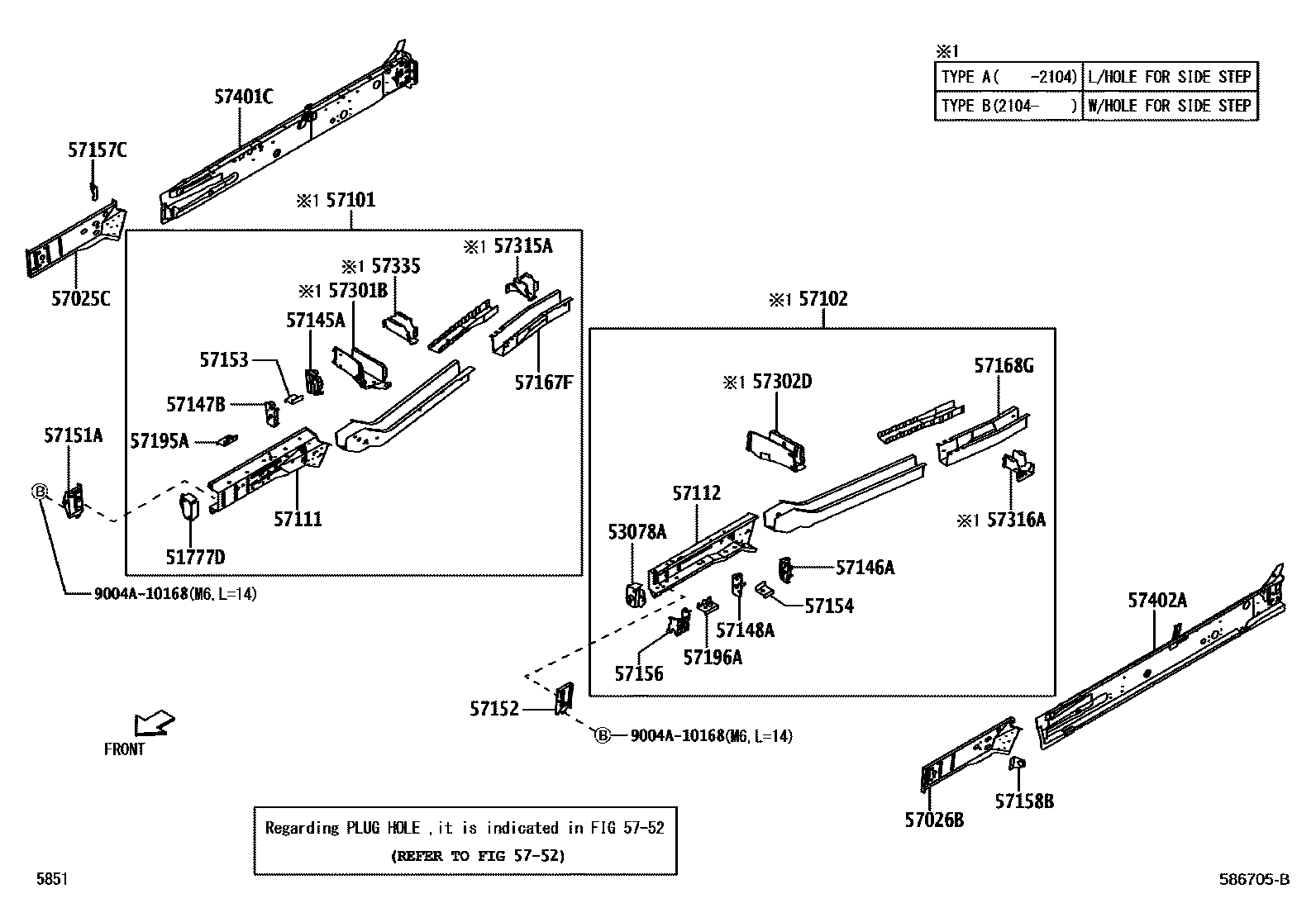

Toyota RUSH — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

51777DARM, FRONT STEP, RH

main52141-BZ060iF850201812-202310

53078AEXTENSION SUB-ASSY, FRONT FENDER APRON, LH

main53078-BZ090iF850201812-202310

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57113-BZ020iF850201812-202310

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57114-BZ030iF850201812-202310

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-BZ580iF850201812-202104

TYPE A

main57101-BZ840iF850202104-202310

TYPE B

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-BZ660iF850201812-202104

TYPE A

main57102-BZA10iF850202104-202310

TYPE B

57111MEMBER, FRONT SIDE, RH

main57111-BZ211iF850201812-202310

57112MEMBER, FRONT SIDE, LH

main57112-BZ231iF850201812-202310

57145AREINFORCEMENT, FRONT SIDE MEMBER, REAR RH

main51501-BZ060iF850201812-202310

57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main51502-BZ070iF850201812-202310

57147BPLATE, FRONT SIDE MEMBER, REAR RH

main57147-BZ010iF850201812-202310

57148APLATE, FRONT SIDE MEMBER, REAR LH

main57148-BZ010iF850201812-202310

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-BZ110iF850201812-202310

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-BZ130iF850201812-202310

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-BZ020iF850201812-202310

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57154-BZ070iF850201812-202310

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-BZ020iF850201812-202310

57157CBRACKET, FLEXIBLE HOSE, FRONT RH

main57157-BZ010iF850201812-202310

57158BBRACKET, FLEXIBLE HOSE, FRONT LH

main57158-BZ010iF850201812-202310

57167FREINFORCEMENT, FRONT CROSSMEMBER SIDE, RH

main57167-BZ011iF850201812-202310

57168GMEMBER, FRONT FLOOR, LH

main57168-BZ110iF850201812-202310

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-BZ050iF850201812-202310

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-BZ030iF850201812-202310

57301BOUTRIGGER SUB-ASSY, NO.1 RH

main57301-BZ090iF850201812-202104

TYPE A

main57301-BZ140iF850202104-202310

TYPE B

57302DOUTRIGGER SUB-ASSY, NO.1 LH

main57302-BZ090iF850201812-202104

TYPE A

main57302-BZ140iF850202104-202310

TYPE B

57315AOUTRIGGER SUB-ASSY, NO.3 RH

main57307-BZ010iF850201812-202104

TYPE A

main57307-BZ020iF850202104-202310

TYPE B

57316AOUTRIGGER SUB-ASSY, NO.3 LH

main57308-BZ010iF850201812-202104

TYPE A

main57308-BZ020iF850202104-202310

TYPE B

57335OUTRIGGER, NO.2 FRONT RH

main57335-BZ040iF850201812-202104

TYPE A

main57335-BZ050iF850202104-202310

TYPE B

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-BZ370iF850201812-202310

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-BZ370iF850201812-202310

5752

9004A10168

main9004A-10168

32 parts on this diagram · 2 diagrams in section
