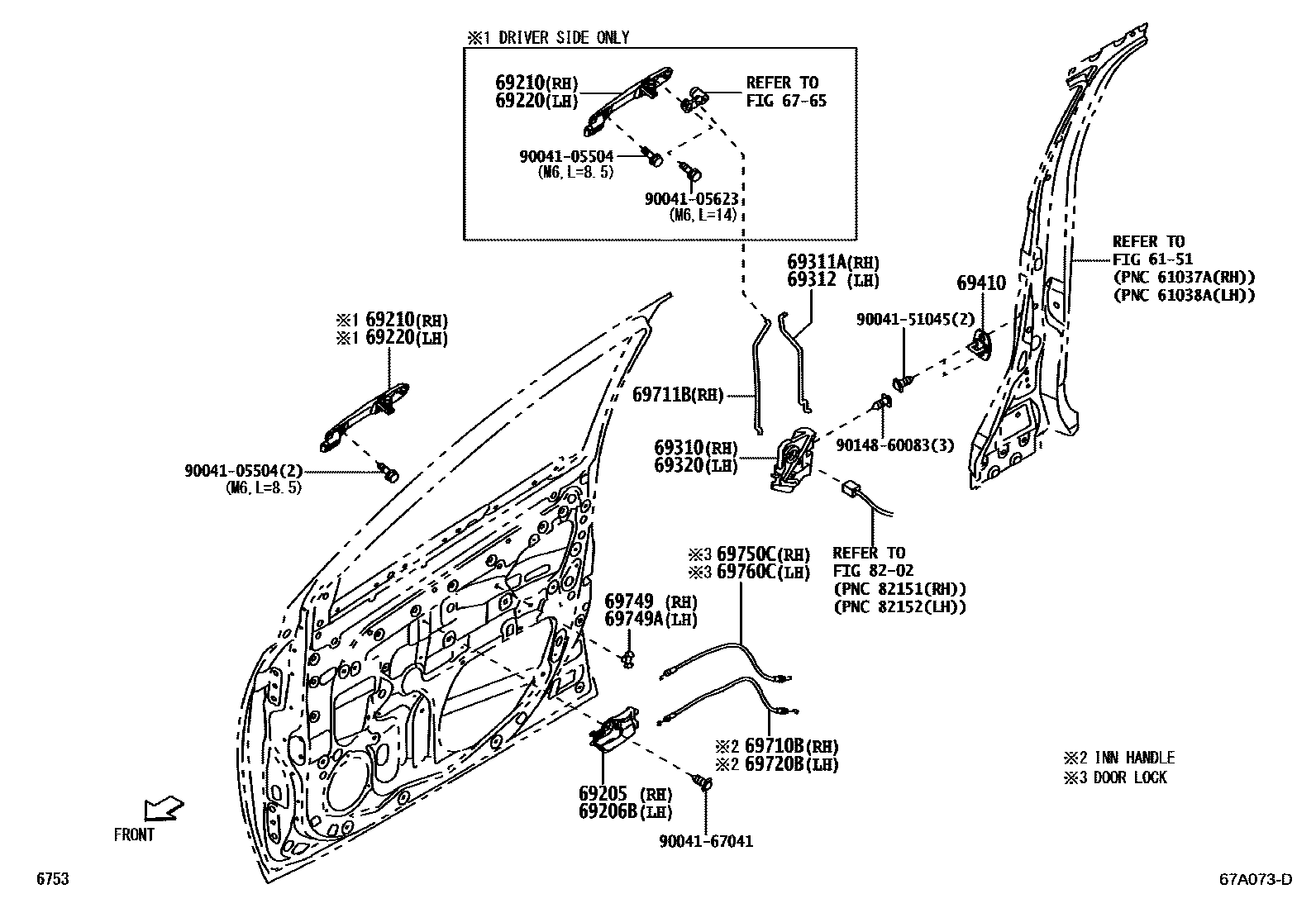

Toyota RUSH — FRONT DOOR LOCK & HANDLE
6151
6765
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE,W09,MAKER:SIPRO
SILVER ME.,S28,MAKER:SIPRO
GRAY ME,S43,MAKER:SIPRO
RED ME.,R68,MAKER:SIPRO
RED ME.,R67,MAKER:SIPRO
BLUE ME.,B77,MAKER:SIPRO
BLUE MICA,B85,MAKER:SIPRO
WHITE,W09,MAKER:DELLOYD
SILVER ME.,S28,MAKER:DELLOYD
RED ME.,R67,MAKER:DELLOYD
BLUE ME.,B77,MAKER:DELLOYD
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE,W09,MAKER:SIPRO
SILVER ME.,S28,MAKER:SIPRO
GRAY ME,S43,MAKER:SIPRO
RED ME.,R68,MAKER:SIPRO
RED ME.,R67,MAKER:SIPRO
BLUE ME.,B77,MAKER:SIPRO
BLUE MICA,B85,MAKER:SIPRO
WHITE,W09,MAKER:DELLOYD
SILVER ME.,S28,MAKER:DELLOYD
RED ME.,R67,MAKER:DELLOYD
BLUE ME.,B77,MAKER:DELLOYD
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
INN HANDLE SIDE
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
INN HANDLE SIDE
69749CLAMP, FRONT DOOR LOCK LINK
RH
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
DOOR LOCK
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
DOOR LOCK
8202
9004105504
9004105623
main90041-05623
9004151045
9004167041
9014860083
24 parts on this diagram · 1 diagram in section
