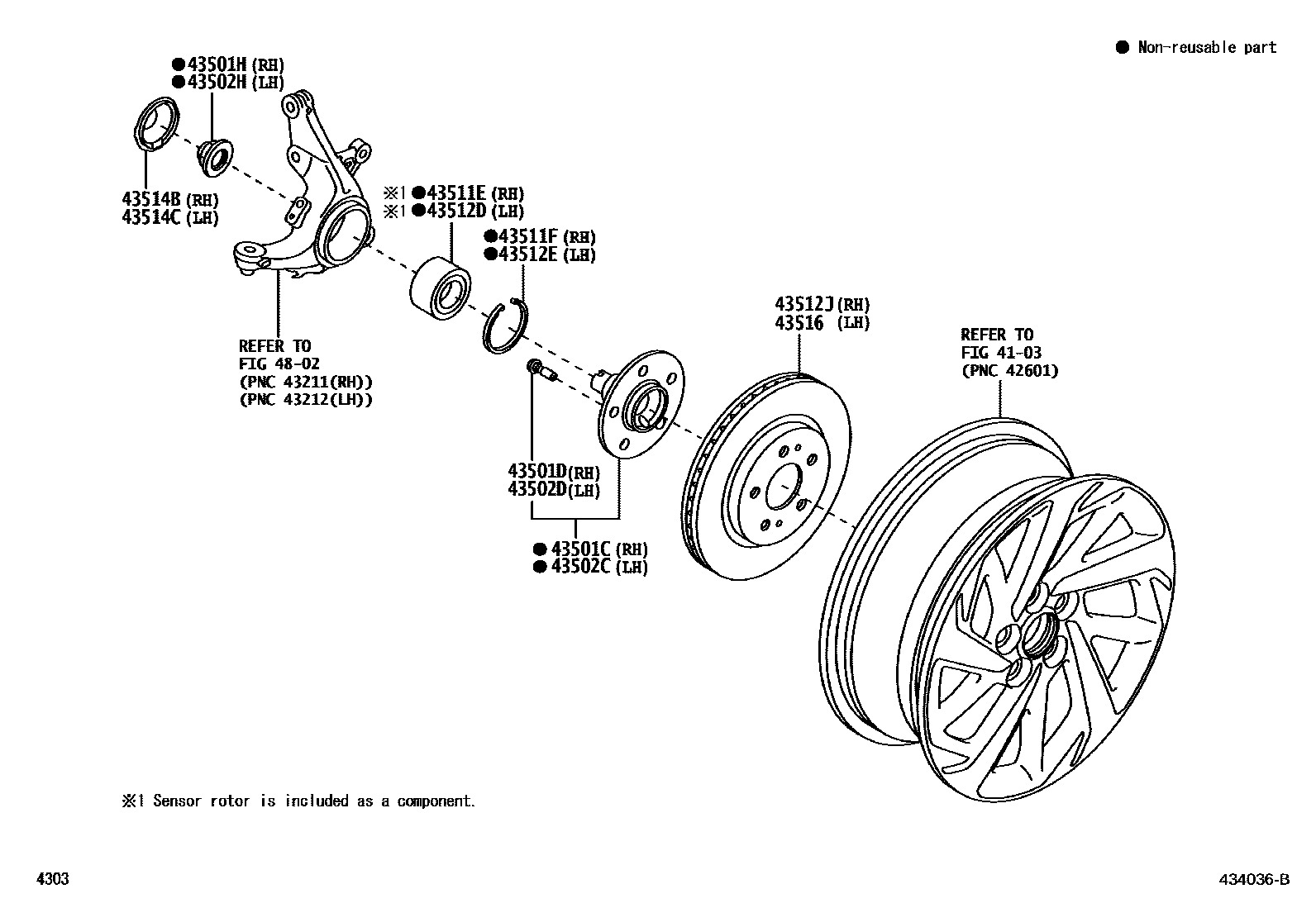

Toyota RUSH — FRONT AXLE HUB

4103

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-BZ200iF850201812-202310

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12055iF850¥220201812-202310

43501HNUT (FOR FRONT AXLE SHAFT RH)

main9004A-17227iF850¥360201812-202310

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-BZ200iF850201812-202310

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12055iF850¥220201812-202310

43502HNUT (FOR FRONT AXLE SHAFT LH)

main9004A-17227iF850¥360201812-202310

43511EBEARING (FOR FRONT AXLE HUB RH)

main43560-BZ050iF850¥4,130201812-202310

W/SENSOR ROTOR

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21188iF850¥310201812-202310

43512DBEARING (FOR FRONT AXLE HUB LH)

main43560-BZ050iF850¥4,130201812-202310

W/SENSOR ROTOR

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21188iF850¥310201812-202310

43512JDISC, FRONT RH

main43512-BZ360iF850201812-201909

sub43512-BZ361

main43512-BZ361iF850201910-202310

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-BZ040iF850201812-202310

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-BZ040iF850201812-202310

43516DISC, FRONT LH

main43512-BZ360iF850201812-201909

sub43512-BZ361

main43512-BZ361iF850201910-202310

4802

16 parts on this diagram · 1 diagram in section
