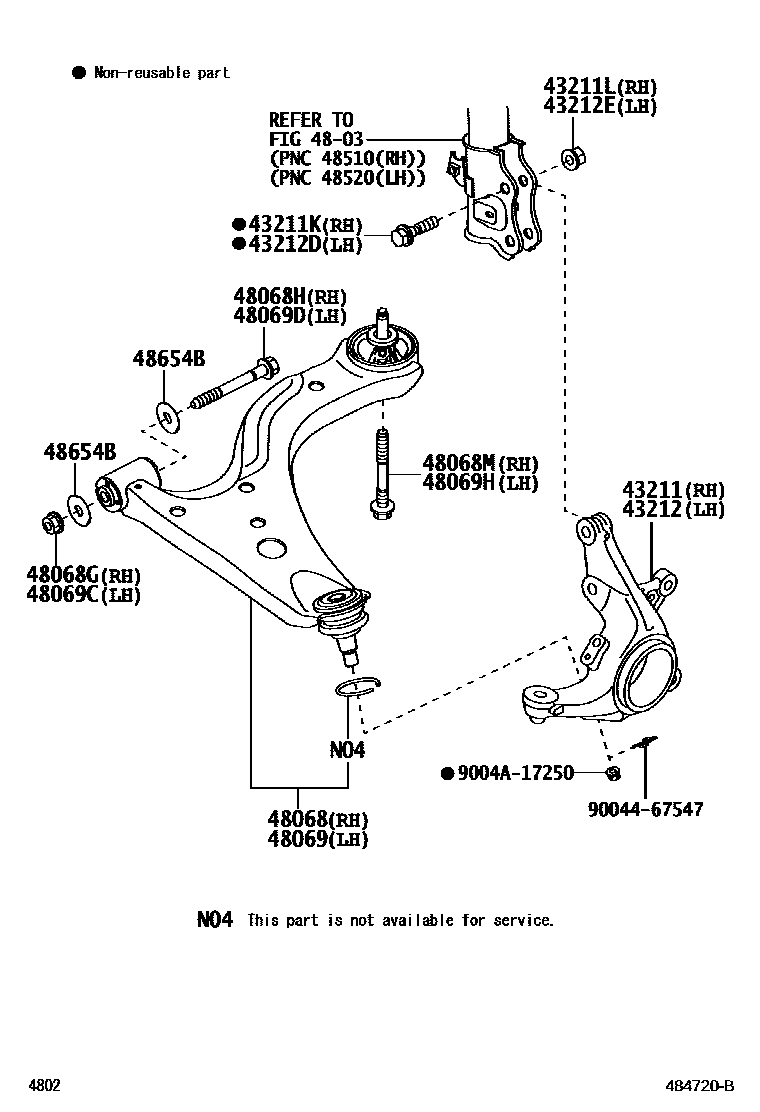

Toyota RUSH — FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-BZ380iF850201812-202310

43211KBOLT (FOR STEERING KNUCKLE RH)

main9004A-10148iF850201812-202310

43211LNUT (FOR STEERING KNUCKLE RH)

main9004A-17251iF850201812-202310

43212KNUCKLE, STEERING, LH

main43212-BZ380iF850201812-202310

43212DBOLT (FOR STEERING KNUCKLE LH)

main9004A-10148iF850201812-202310

43212ENUT (FOR STEERING KNUCKLE LH)

main9004A-17251iF850201812-202310

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-BZ390iF850201812-202310

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main9004A-17255iF850201812-202310

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main9004A-10161iF850201812-202310

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90041-19A39iF850201812-202310

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-BZ390iF850201812-202310

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main9004A-17255iF850201812-202310

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main9004A-10161iF850201812-202310

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90041-19A39iF850201812-202310

48654BWASHER, PLATE(FOR LOWER ARM BUSH)

main9004A-20020iF850201812-202310

9004467547

main90044-67547¥110

9004A17250

main9004A-17250

18 parts on this diagram · 1 diagram in section
