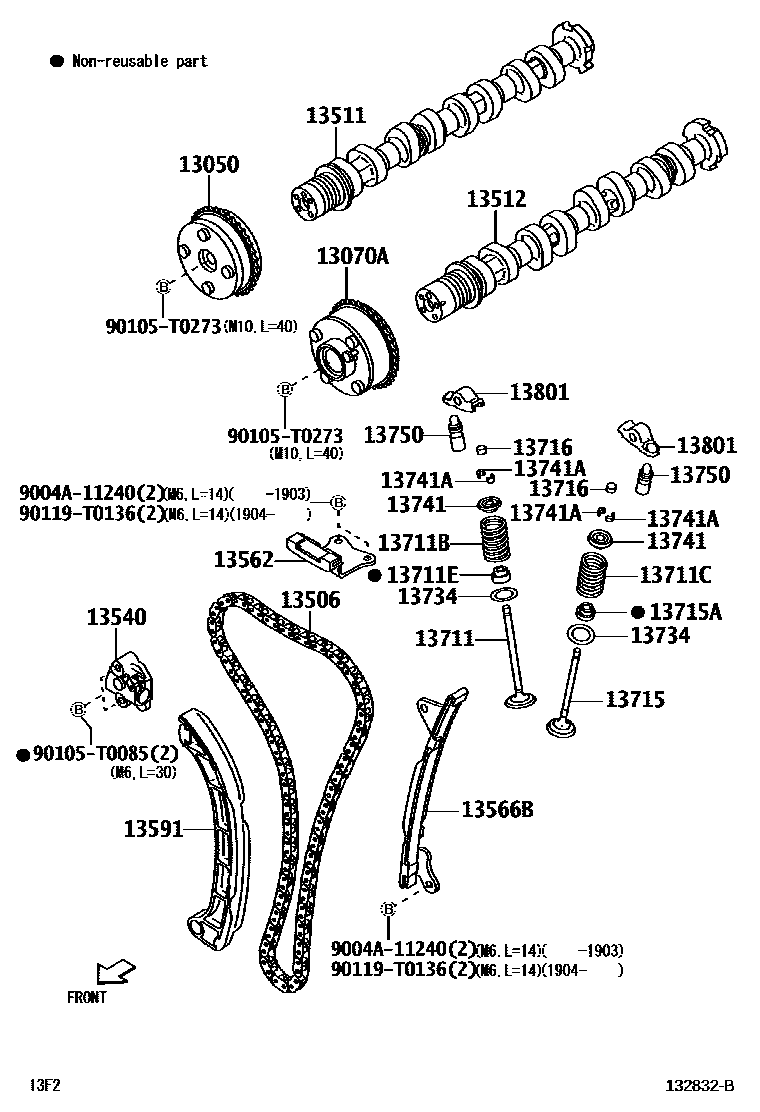

Toyota RUSH — CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
13506CHAIN SUB-ASSY
13511CAMSHAFT
13512CAMSHAFT, NO.2
13540TENSIONER ASSY, CHAIN, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13566BGUIDE, TIMING CHAIN
13591ARM, TIMING CHAIN TENSION
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
13711CSPRING, COMPRESSION(FOR OUTER)
13711ESEAL, INTAKE VALVE STEM OIL
sub90080-31084
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
sub90080-31085
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9004A11240
main9004A-11240
90105T0085
main90105-T0085
90105T0273
main90105-T0273
90119T0136
main90119-T0136
25 parts on this diagram · 1 diagram in section
