Toyota RUSH — BACK DOOR PANEL & GLASS

0001 1 0002 1

5752

64780APANEL ASSY, BACK DOOR TRIM

main64780-BZ200-C0iF850201812-202308

BLACK,TRIM1#,W/PART NUMBER MARK

main64780-BZ310iF850202309-202310

W/PART NUMBERMARK

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-BZ070iF850201812-202310

64827ECLIP, BACK WINDOW GLASS, RH

main64827-BZ110iF850201812-202310

64828DCLIP, BACK WINDOW GLASS, LH

main64828-BZ080iF850201812-202310

67005PANEL SUB-ASSY, BACK DOOR

main67005-BZB70iF850201812-202105

main67005-BZD00iF850202106-202310

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09092iF850¥260201812-202310

6762

67750ACLIP(FOR BACK DOOR TRIM)

main90467-10161iF850¥90201812-202310

67751BOARD, BACK DOOR TRIM

main64781-BZ030-C0iF850201812-202308

BLACK,TRIM1#,W/PART NUMBER MARK

main64781-BZ110iF850202309-202310

W/PART NUMBERMARK

67837LSEAL, DOOR DUST PROOF

main67837-BZ060iF850201812-202310

67881AWEATHERSTRIP, BACK DOOR

main67881-BZ190iF850201812-202310

68131GLASS, BACK DOOR

main68105-BZ300iF850201812-202310

74811GHANDLE, DOOR PULL

main74811-BZ040iF850201812-202310

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-BZ040iF850201812-202310

RH

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-BZ010iF850201812-202310

LH

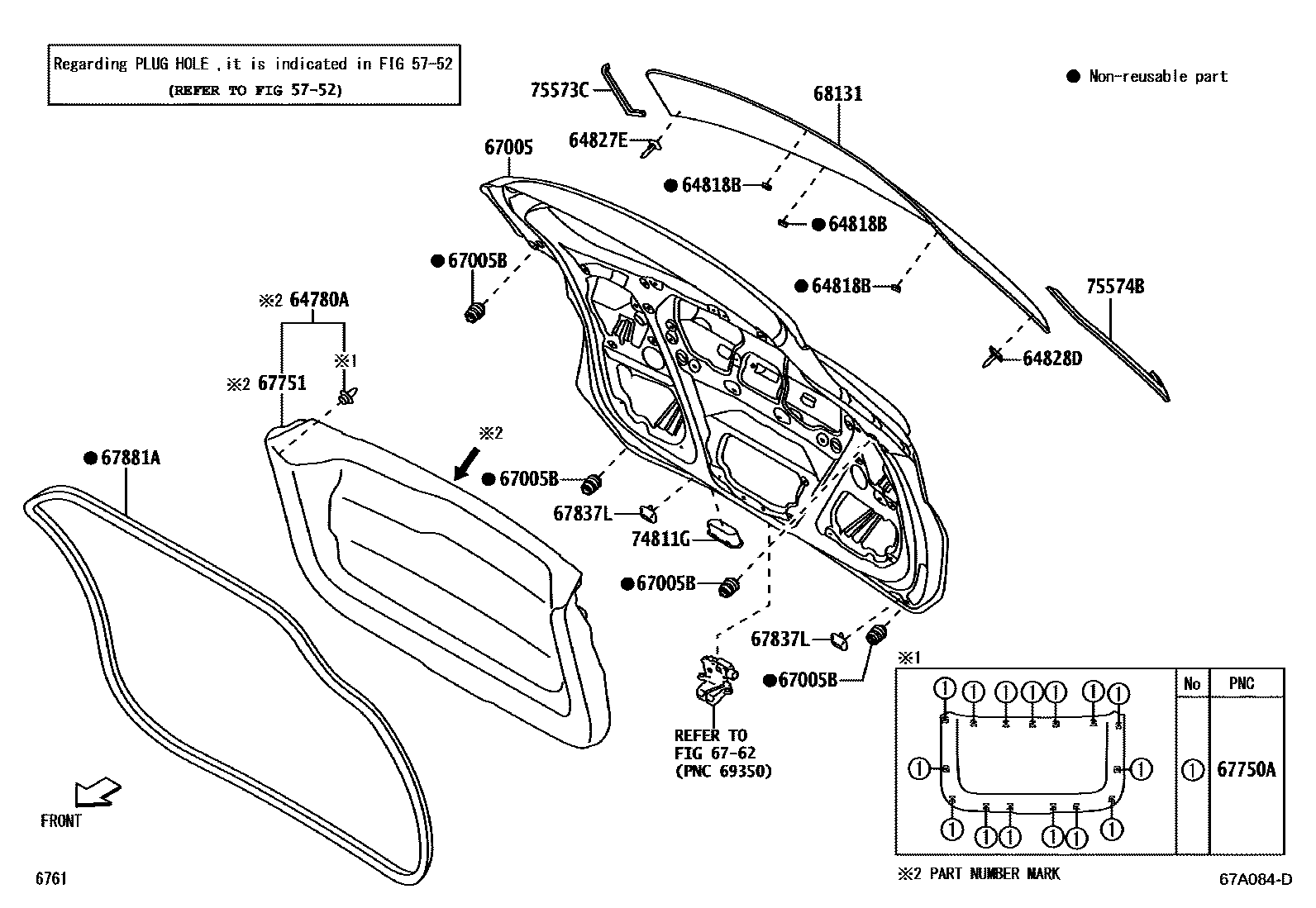

16 parts on this diagram · 2 diagrams in section
