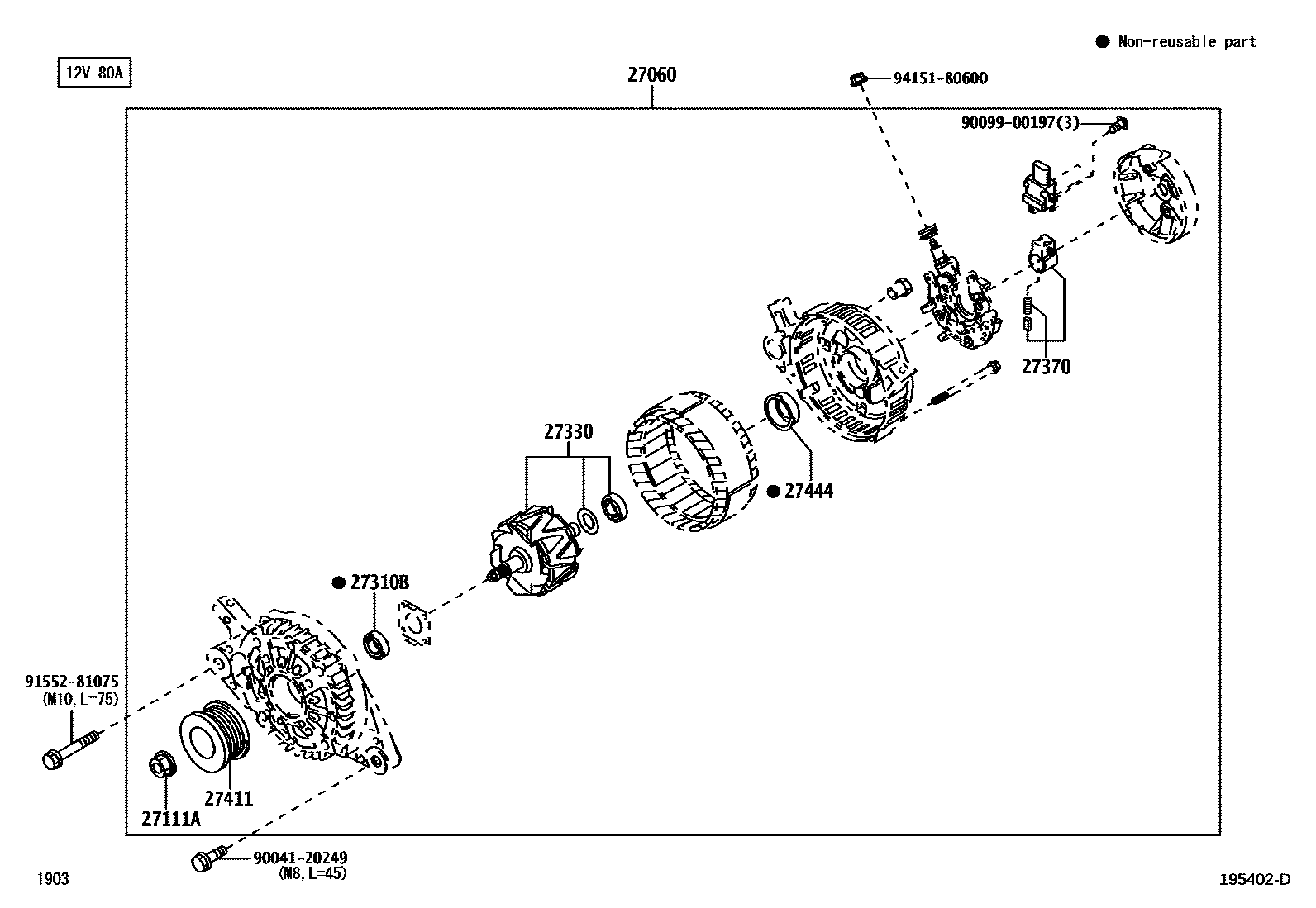

Toyota RUSH — ALTERNATOR

27060ALTERNATOR ASSY, W/REGULATOR

main27060-BZ440i2NRVE..F850201812-202310

27111ANUT, ALTERNATOR

main90099-05171i2NRVE..F850201812-202310

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main9004B-37012i2NRVE..F850¥1,510201812-202310

27330ROTOR ASSY, ALTERNATOR

main27330-BZ060i2NRVE..F850¥13,700201812-202310

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-B1020i2NRVE..F850201812-202310

27411PULLEY, ALTERNATOR

main27411-BZ100i2NRVE..F850201812-202310

27444PACKING, ALTERNATOR BEARING COVER

main27444-BZ010i2NRVE..F850¥120201812-202310

9004120249

main90041-20249¥210

9009900197

main90099-00197

9155281075

main91552-81075¥200

9415180600

main94151-80600¥60

11 parts on this diagram · 1 diagram in section
