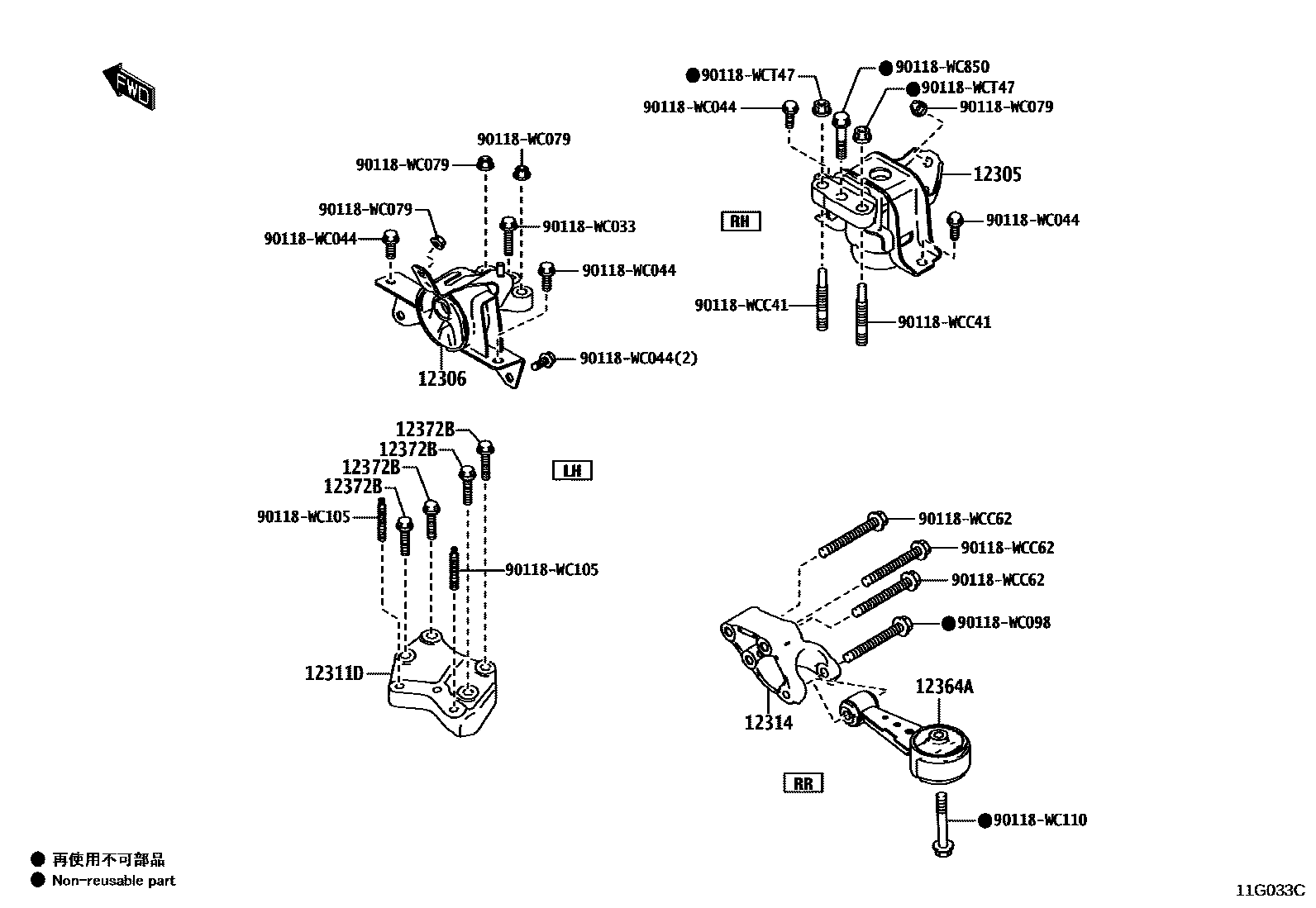

Toyota RUMION — MOUNTING

0001 1 0002 1 0003 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-WC007

main12305-WC012

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-WC008

main12306-WC021

12311DBRACKET, ENGINE MOUNTING

12314BRACKET, ENGINE LATERAL CONTROL ROD

main12313-WC006

main12313-WC007

12364AROD, ENGINE LATERAL CONTROL

12372BBOLT

90118WC033

main90118-WC033

90118WC044

main90118-WC044

90118WC079

main90118-WC079

90118WC098

main90118-WC098

90118WC105

main90118-WC105

90118WC110

main90118-WC110

90118WC850

main90118-WC850

90118WCC41

main90118-WCC41

90118WCC62

main90118-WCC62

90118WCT47

main90118-WCT47

16 parts on this diagram · 3 diagrams in section
