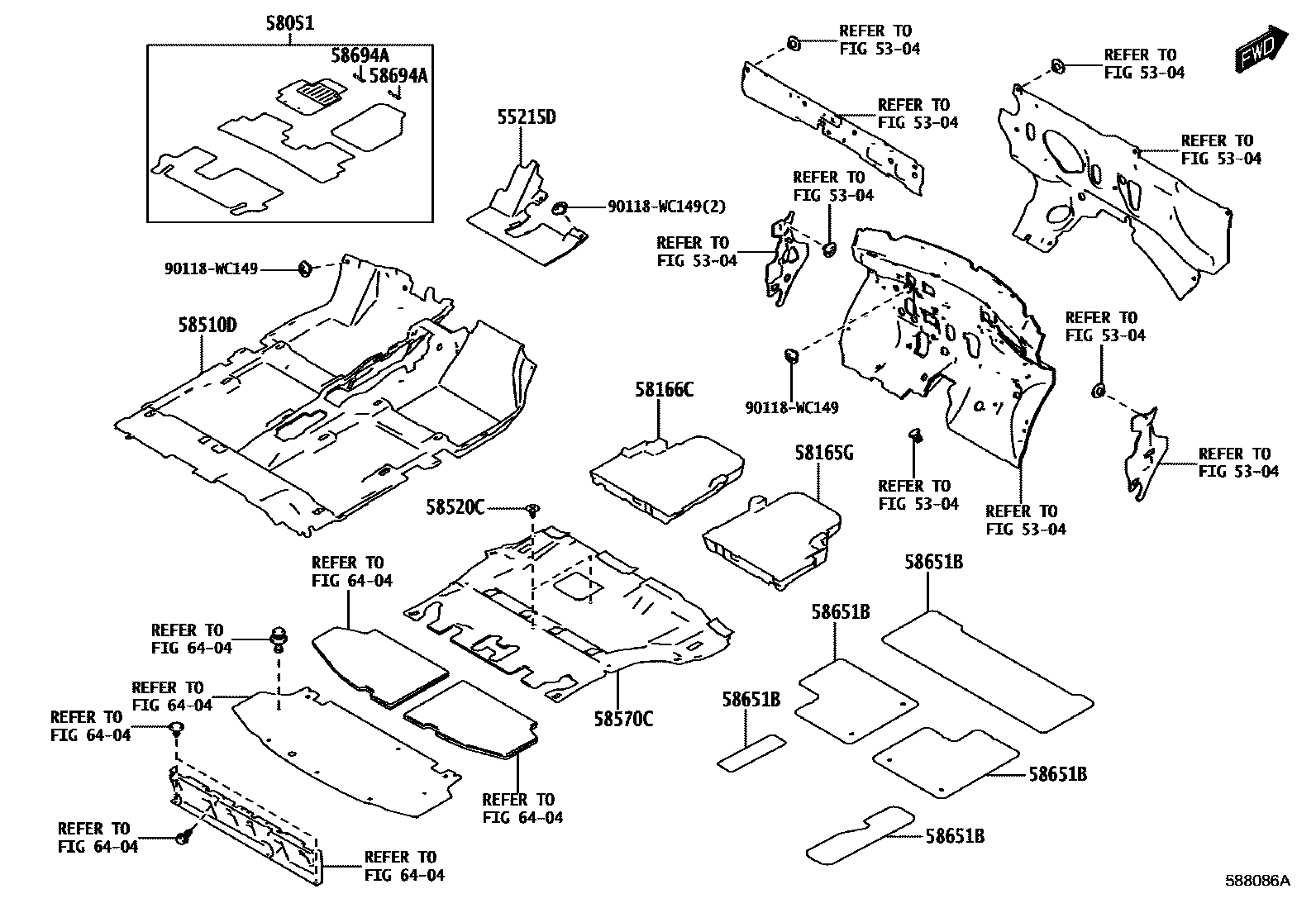

Toyota RUMION — MAT & CARPET

0001 1 0002 1 0003 1

5304

55215DPAD, DASH PANEL INSULATOR, NO.3

58051MAT SET, FLOOR

main58051-WC001

main58051-WC002

58165GCOVER, FRONT FLOOR, RH

58166CCOVER, FRONT FLOOR, LH

58510DCARPET ASSY, FLOOR, FRONT

58520CCLIP(FOR FRONT FLOOR CARPET)

58570CCARPET ASSY, REAR FLOOR

58651BSHEET, REAR FLOOR SILENCER, NO.1

58694APLATE, MAT SET, UPPER

6404

90118WC149

main90118-WC149

12 parts on this diagram · 3 diagrams in section
