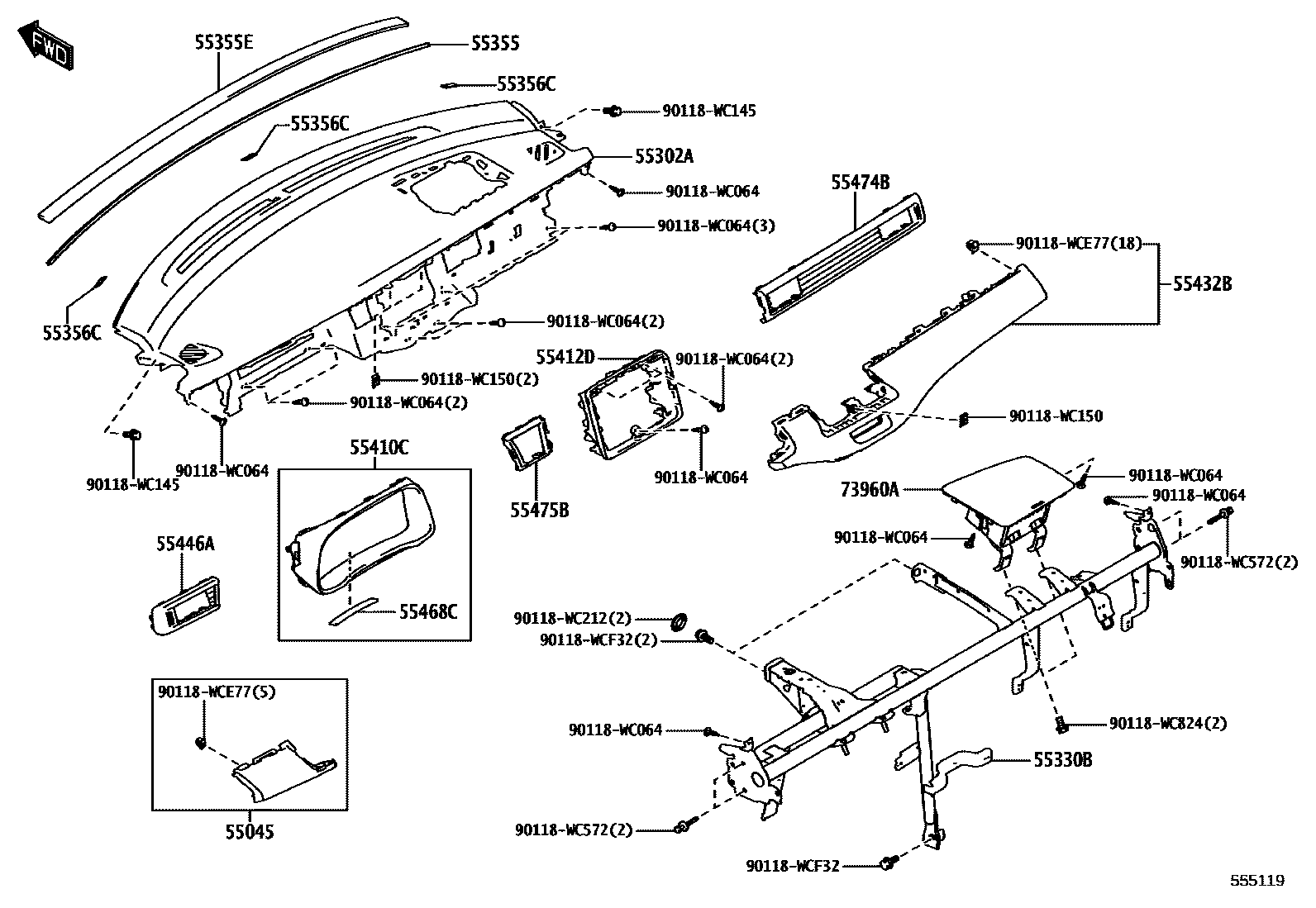

Toyota RUMION — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

main55557-WC001

main55403-WC001

main55403-WC003

main55045-WC009

main55045-WC010

main55045-WC011

main55045-WC012

main55045-WC013

main55045-WC014

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-WC001

main55355-WC002

55355ECUSHION, INSTRUMENT PANEL

55356CCUSHION, INSTRUMENT PANEL, NO.2

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

55446ABASE, SWITCH HOLE, NO.1

55468CSEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1

55474BGARNISH, INSTRUMENT CLUSTER FINISH PANEL

55475BGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

90118WC064

main90118-WC064

90118WC145

main90118-WC145

90118WC150

main90118-WC150

90118WC212

main90118-WC212

90118WC572

main90118-WC572

90118WC824

main90118-WC824

90118WCE77

main90118-WCE77

90118WCF32

main90118-WCF32

22 parts on this diagram · 10 diagrams in section
