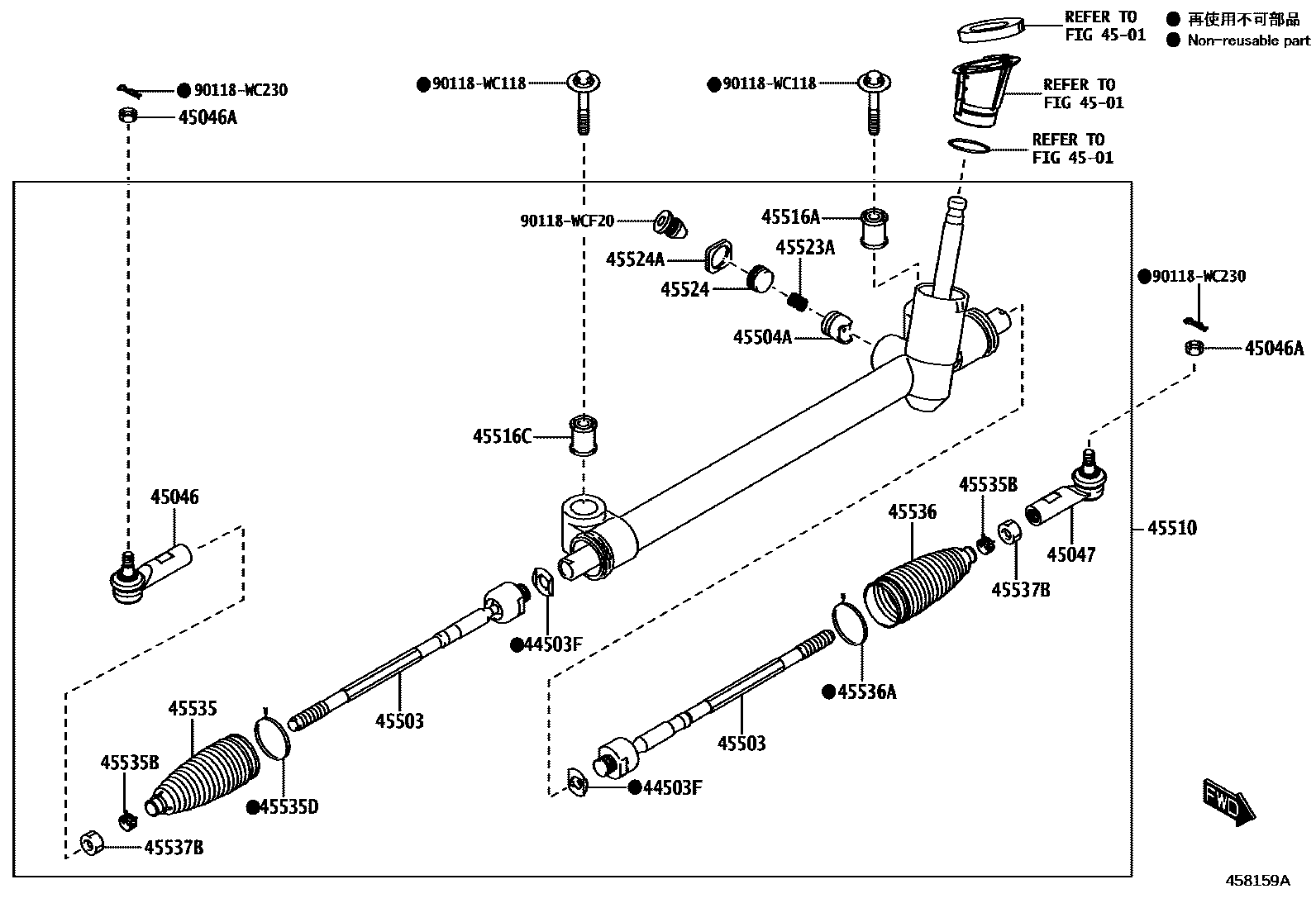

Toyota RUMION — FRONT STEERING GEAR & LINK

0001 1 0002 1

44503FWASHER, CLAW(FOR POWER STEERING RACK END)

4501

45046END SUB-ASSY, TIE ROD, RH

main45046-WC002

main90118-WC148

45046ANUT, CASTLE(FOR TIE ROD END)

45047END SUB-ASSY, TIE ROD, LH

main45046-WC002

45503END SUB-ASSY, STEERING RACK

main45503-WC007

45504AGUIDE SUB-ASSY, RACK

45510GEAR ASSY, STEERING

main45510-WC010

main45510-WC011

45516ABUSH, STEERING RACK HOUSING, NO.1

45516CBUSH, STEERING RACK HOUSING, NO.2

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

45524CAP, STEERING RACK GUIDE SPRING

main45524-WC005

main90118-WCF19

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

45535BOOT, STEERING RACK, NO.1

main45535-WC004

main90118-WCB25

main90118-WCC11

45535BCLIP(FOR STEERING RACK BOOT)

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

45536BOOT, STEERING RACK, NO.2

main45535-WC004

main90118-WCC11

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

45537BNUT, RACK END LOCK

90118WC118

main90118-WC118

90118WC230

main90118-WC230

90118WCF20

main90118-WCF20

22 parts on this diagram · 2 diagrams in section
