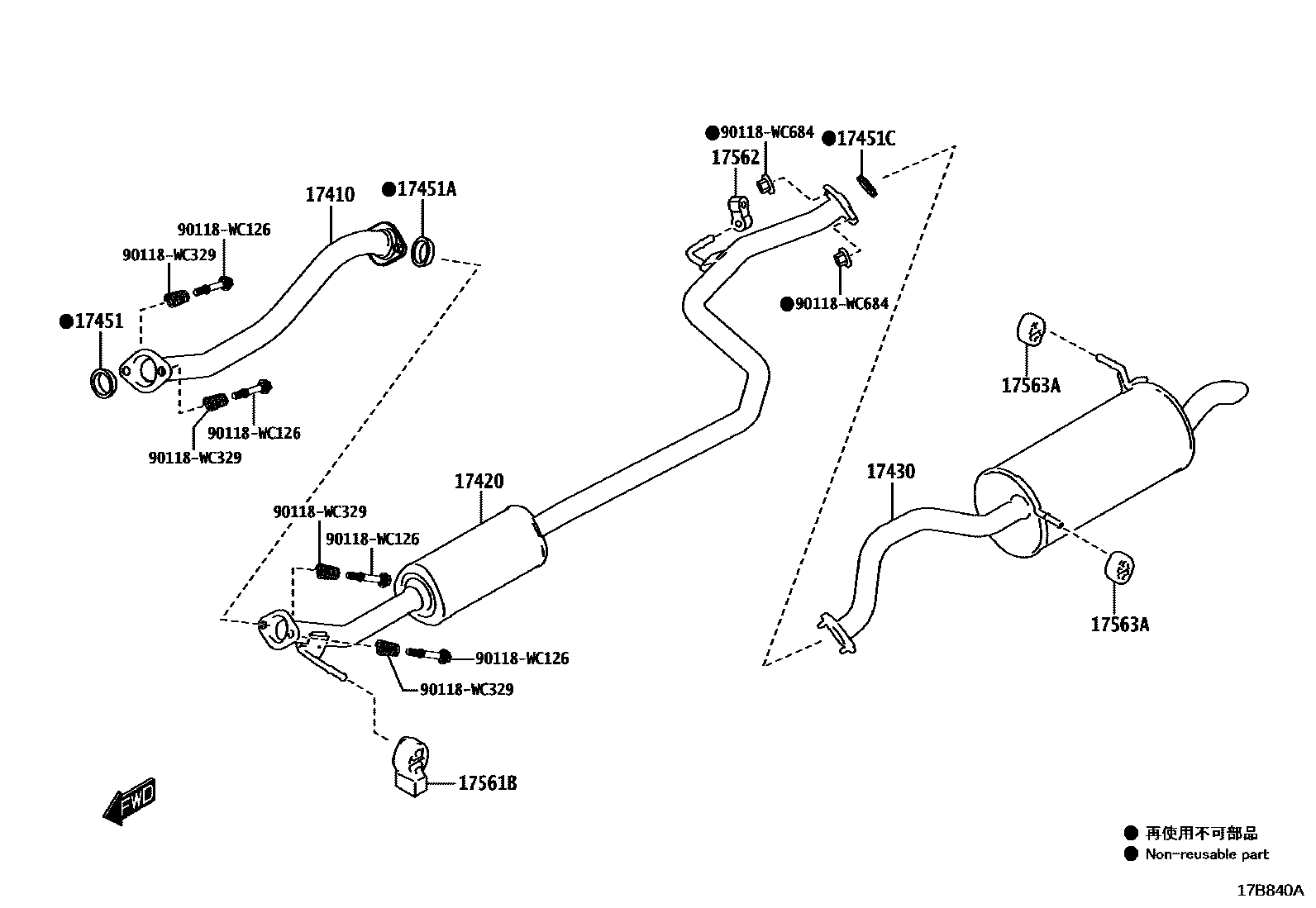

Toyota RUMION — EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-WC005

17420PIPE ASSY, EXHAUST, CENTER

main17420-WC004

17430PIPE ASSY, EXHAUST, TAIL

main17430-WC005

17451GASKET, EXHAUST PIPE

main17451-WC001

main90118-WC732

17451AGASKET, EXHAUST PIPE, NO.2

17451CGASKET, EXHAUST PIPE, NO.3

17561BSUPPORT, EXHAUST PIPE, NO.1

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-WC002

17563ASUPPORT, EXHAUST PIPE, NO.3

90118WC126

main90118-WC126

90118WC329

main90118-WC329

90118WC684

main90118-WC684

12 parts on this diagram · 1 diagram in section
