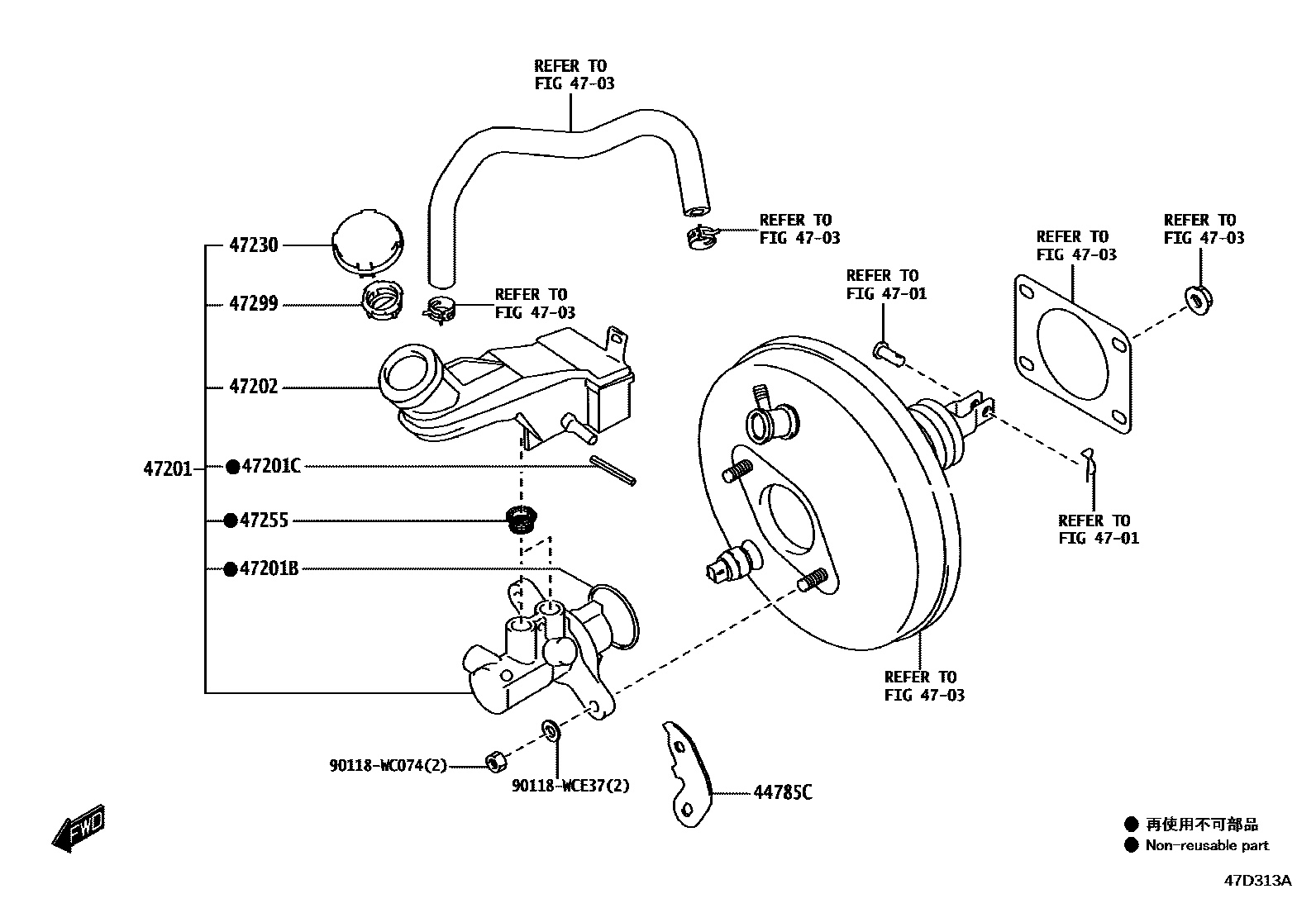

Toyota RUMION — BRAKE MASTER CYLINDER
44785CGASKET, BRAKE BOOSTER
4701
4703
47201CYLINDER SUB-ASSY, BRAKE MASTER
main47201-WC013
main47201-WC014
main47201-WC015
main47201-WC016
main47201-WC030
main47201-WC031
main47201-WC032
main90118-WC542
main90118-WC543
47201BRING, O(FOR BRAKE MASTER CYLINDER)
47201CRING PIN, BRAKE MASTER CYLINDER
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
main47220-WC002
main47220-WC005
main47220-WC012
main47220-WC013
main47220-WC014
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
main47230-WC001
47255GROMMET, MASTER CYLINDER RESERVOIR
main90118-WC541
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
main47299-WC001
90118WC074
main90118-WC074
90118WCE37
main90118-WCE37
12 parts on this diagram · 4 diagrams in section
