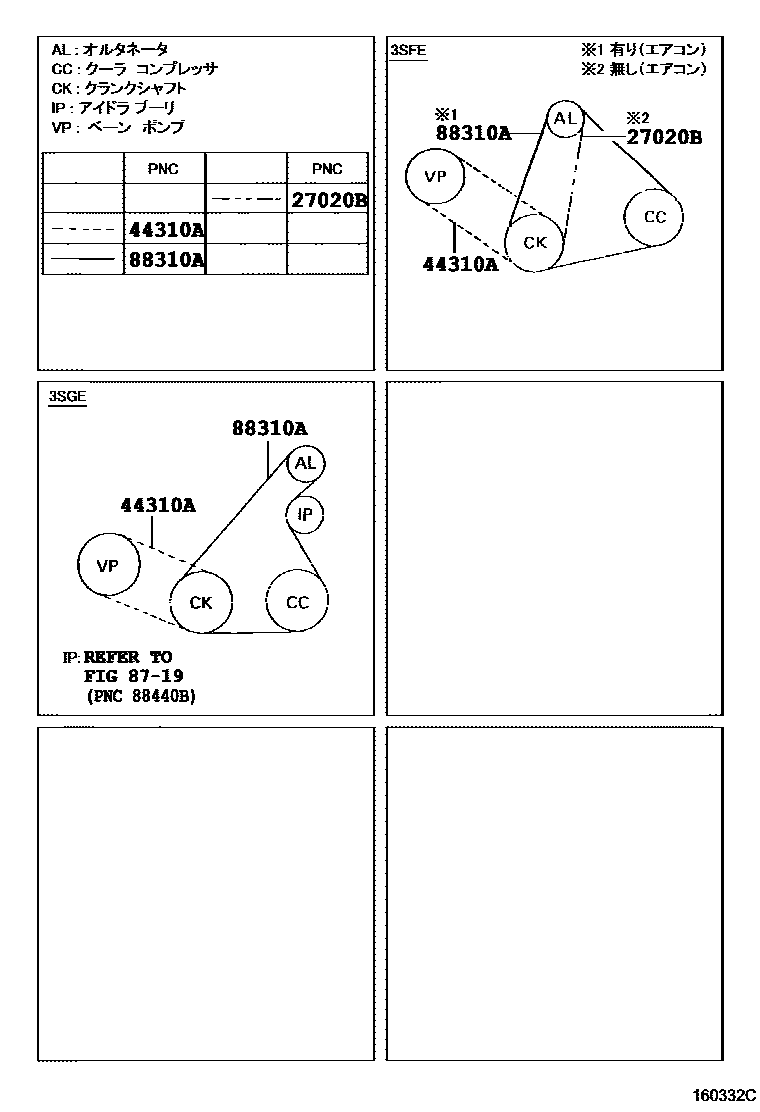

Toyota RAV4 — V-BELT

27020BBELT, V(FOR ALTERNATOR)

main90916-02355i3SFE..SXA1#..STD¥3,860199404-199808

44310ABELT, V(FOR VANE PUMP)

main99363-30760iSXA1#¥1,450199803

sub99363-90760¥1,450

main99363-70760iSXA10¥1,450199404-199504

sub99363-80760¥1,450

main99363-80760iSXA1#¥1,450199504-199803

sub99363-90760¥1,450

8719

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90080-91099iSXA1#..STD¥4,630199612-199709

main99365-31090iSXA1#¥3,310199709

sub99365-91090¥3,310

main99365-81110iSXA1#..STD¥3,650199404-199709

sub99365-91110¥3,650

main99365-81110iSXA1#..G¥3,650199608-199612

sub99365-91110¥3,650

main99365-91090iSXA1#¥3,310199709

4 parts on this diagram · 1 diagram in section
