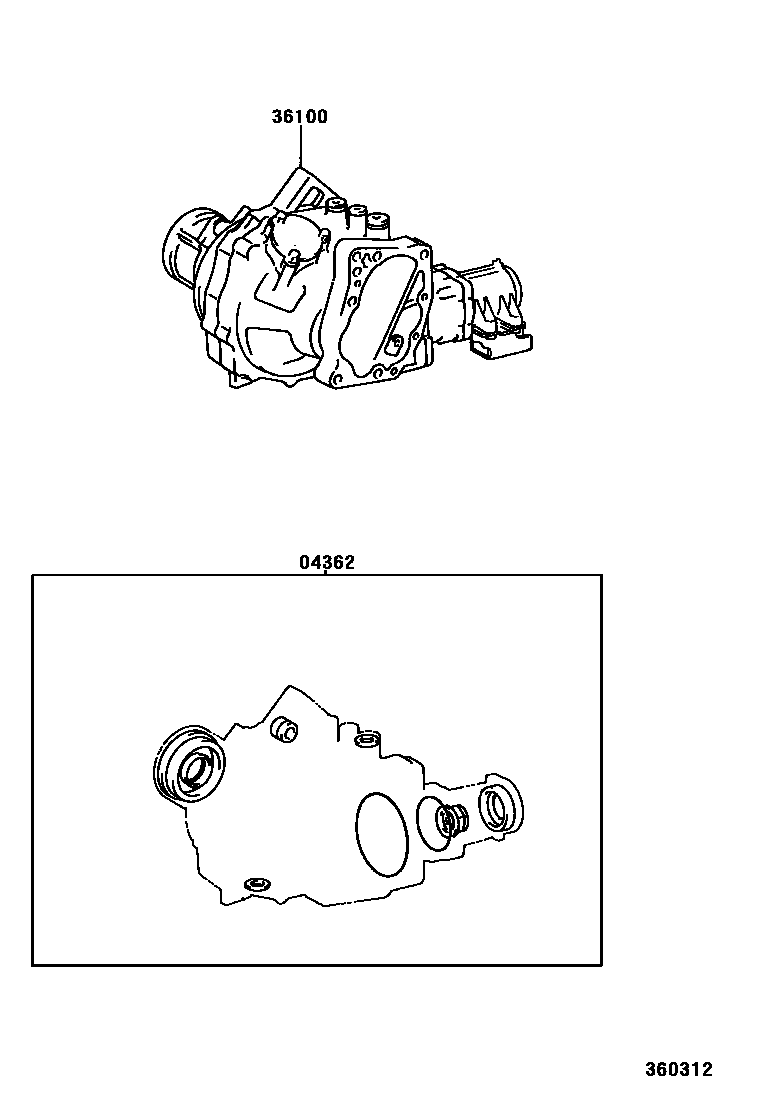

Toyota RAV4 — TRANSFER ASSEMBLY & GASKET KIT

0001 1 0002 1

04362GASKET KIT, TRANSFER OVERHAUL

main04362-20020iSXA10,11..ATM¥7,800199404-199902

sub04362-20021¥6,700

main04362-20021iSXA10,11..ATM¥6,700199902

main04362-32020iSXA10,11..MTM¥3,600199404

36100TRANSFER ASSY

main36100-42010iSXA1#..ATM¥217,000199404-199608

sub36100-44010¥219,000

sub35013-42030¥3,300

sub35103-42020¥1,160

sub35121-20030¥2,160

main36100-42020iSXA10,11..MTM..(SOT,STD,X)¥139,000199404

main36100-42040iSXA10,11..MTM..G¥201,000199608

main36100-42050iSXA10,11..ATM..G¥201,000199608-199806

sub36100-42051¥201,000

main36100-42051iSXA10,11..ATM..G¥201,000199806

main36100-44010iSXA10,11..ATM..(SOT,STD,X)¥219,000199608

2 parts on this diagram · 2 diagrams in section
