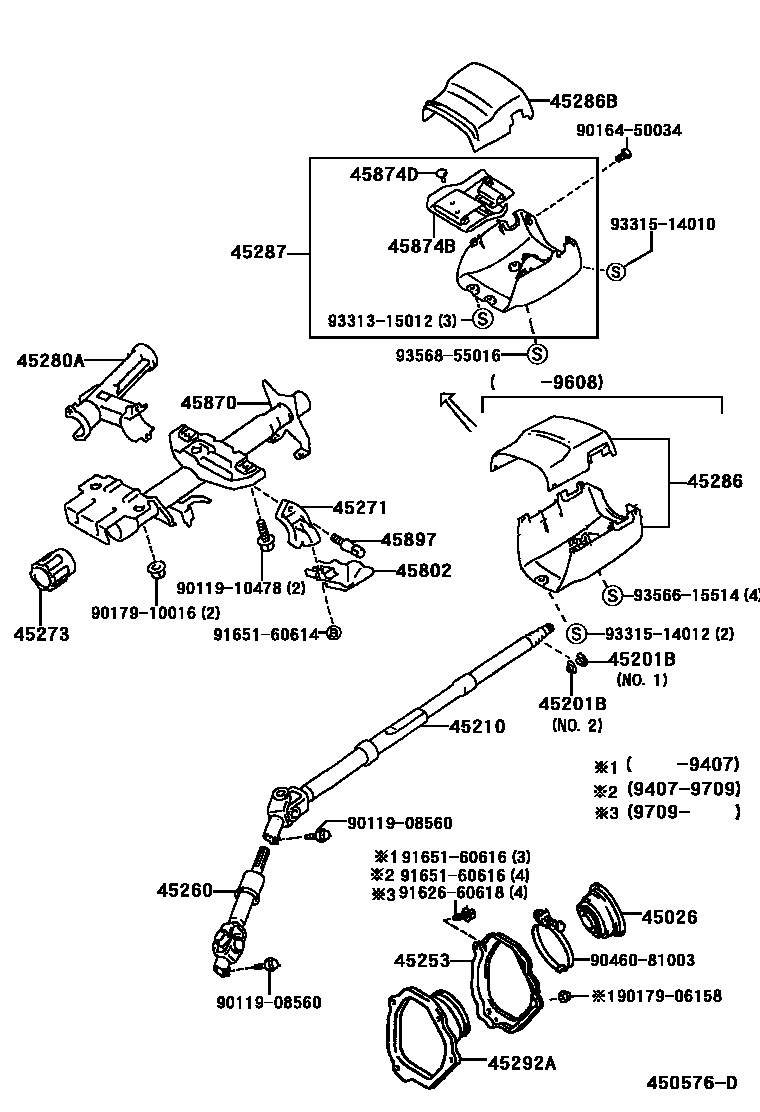

Toyota RAV4 — STEERING COLUMN & SHAFT
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45210SHAFT ASSY, STEERING MAIN
45253COVER, STEERING COLUMN HOLE
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM1#
45287COVER, STEERING COLUMN, LWR
45292ACOVER, MAIN SHAFT LOWER DUST
45802PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1
45870TUBE ASSY, STEERING COLUMN
45874BPROTECTOR, STEERING COLUMN, NO.1
45874DCUSHION(FOR STEERING COLUMN PROTECTOR)
45897BOLT, STEERING LOCK SET
9011908560
9011910478
9016450034
9017906158
9017910016
9046081003
9162660618
9165160614
9165160616
9331315012
9331514010
9331514012
9356615514
9356855016
31 parts on this diagram · 3 diagrams in section
