Toyota RAV4 — STARTER

0001 112V 1.2KW 0003 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-74070i3S#..SXA1#¥14,100199404

28100STARTER ASSY

main28100-74130i3SFE..SXA10,11;3SFE..SXA15,16..MTM¥101,000199709

�P�Q�u�@�P�D�Q�j�v

sub28100-74140¥105,000

main28100-74130i3SFE..SXA1#;3SGE..SXA10..ATM¥101,000199404-199709

�P�Q�u�@�P�D�Q�j�v

sub28100-74140¥105,000

main28100-74140i3SGE..SXA10,11¥105,000199709

�P�Q�u�@�P�D�S�j�v

main28100-74140i3SGE..SXA11;3SGE..SXA10..MTM¥105,000199608-199709

�P�Q�u�@�P�D�S�j�v

main28100-74280i3SFE..SXA15,16..ATM¥99,900199709

�P�Q�u�@�P�D�Q�j�v

sub28100-74290¥105,000

28110HOUSING ASSY, STARTER DRIVE

main28110-74100i3S#..SXA1#¥6,700199404

28120YOKE ASSY, STARTER

main28120-16180i3SFE..SXA1#199709

main28120-16180i3SFE..SXA1#;3SGE..SXA10..ATM199409-199709

main28120-66040i3SGE..SXA11;3SGE..SXA10..MTM199608-199709

main28120-66040i3SGE..SXA10,11199709

main28120-76061i3SFE..SXA10199404-199409

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-74100i3SGE..SXA10,11¥0199709

main28130-74100i3SGE..SXA11;3SGE..SXA10..MTM¥0199608-199709

main28130-74120i3SFE..SXA1#;3SGE..SXA10..ATM¥0199404-199709

main28130-74120i3SFE..SXA1#¥0199709

28140HOLDER ASSY, STARTER BRUSH

main28140-74070i3SGE..SXA11;3SGE..SXA10..MTM199608-199709

main28140-74070i3SGE..SXA10,11199709

main28140-74120i3SFE..SXA1#;3SGE..SXA10..ATM199404-199709

main28140-74120i3SFE..SXA1#199709

28143SPRING, STARTER BRUSH

main28143-76060i3SFE..SXA1#199709

main28143-76060i3SFE..SXA1#;3SGE..SXA10..ATM199404-199709

main90099-17112i3SGE..SXA11;3SGE..SXA10..MTM199608-199709

main90099-17112i3SGE..SXA10,11199709

28150SWITCH ASSY, MAGNET STARTER

main28150-74130i3SFE..SXA10¥15,900199404-199409

sub28150-74180¥15,900

main28150-74140i3S#..SXA10,11;3SFE..SXA15,16..MTM¥15,500199409

main28150-74280i3SFE..SXA15,16..ATM¥70,900199709

28159BCOVER, MAGNET SWITCH

main28159-55050i3S#..SXA1#199404

28160ARMATURE ASSY, STARTER

main28160-74070i3SGE..SXA11;3SGE..SXA10..MTM199608-199709

main28160-74070i3SGE..SXA10,11199709

main28160-76060i3SFE..SXA1#;3SGE..SXA10..ATM¥23,700199404-199709

main28160-76060i3SFE..SXA1#¥23,700199709

28160ABEARING, STARTER ARMATURE

main90099-10196i3S#..SXA1#199404

�m�n�D�P

main90099-10197i3S#..SXA1#¥0199404

�m�n�D�Q

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-74070i3S#..SXA1#¥0199404

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-55050i3S#..SXA10,11;3SFE..SXA15,16..MTM199404

28175AGASKET, MAGNET SWITCH COVER

main28175-55050i3S#..SXA1#199404

28199APROTECTOR, DUST STARTER

main28199-74110i3S#..SXA1#199404

�m�n�D�P

main28199-74280i3SFE..SXA15,16..ATM199709

�m�n�D�Q

28226STARTER KIT, BATTERY TERMINAL

main28226-55050i3S#..SXA1#199404

sub28226-64370

28226ASTARTER KIT, MOTOR TERMINAL

main28226-74070i3S#..SXA1#199404

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i3S#..SXA1#199404

28229RETAINER, STARTER IDLE GEAR

main28229-74070i3S#..SXA1#199404

28235PLUNGER, MAGNET SWITCH

main28235-74130i3S#..SXA1#199404

28252GEAR, STARTER IDLE

main28254-74070i3S#..SXA1#199404

2817615090SCREW, STARTER

main28176-15090

9009900270

main90099-00270

9009904449

main90099-04449

9009904450

main90099-04450¥0

9009904474

main90099-04474

9009905129

main90099-05129

9009905251

main90099-05251

9009912009

main90099-12009

9009914064

main90099-14064

9017908146

main90179-08146¥180

9161161035

main91611-61035¥130

9161261035

main91612-61035¥100

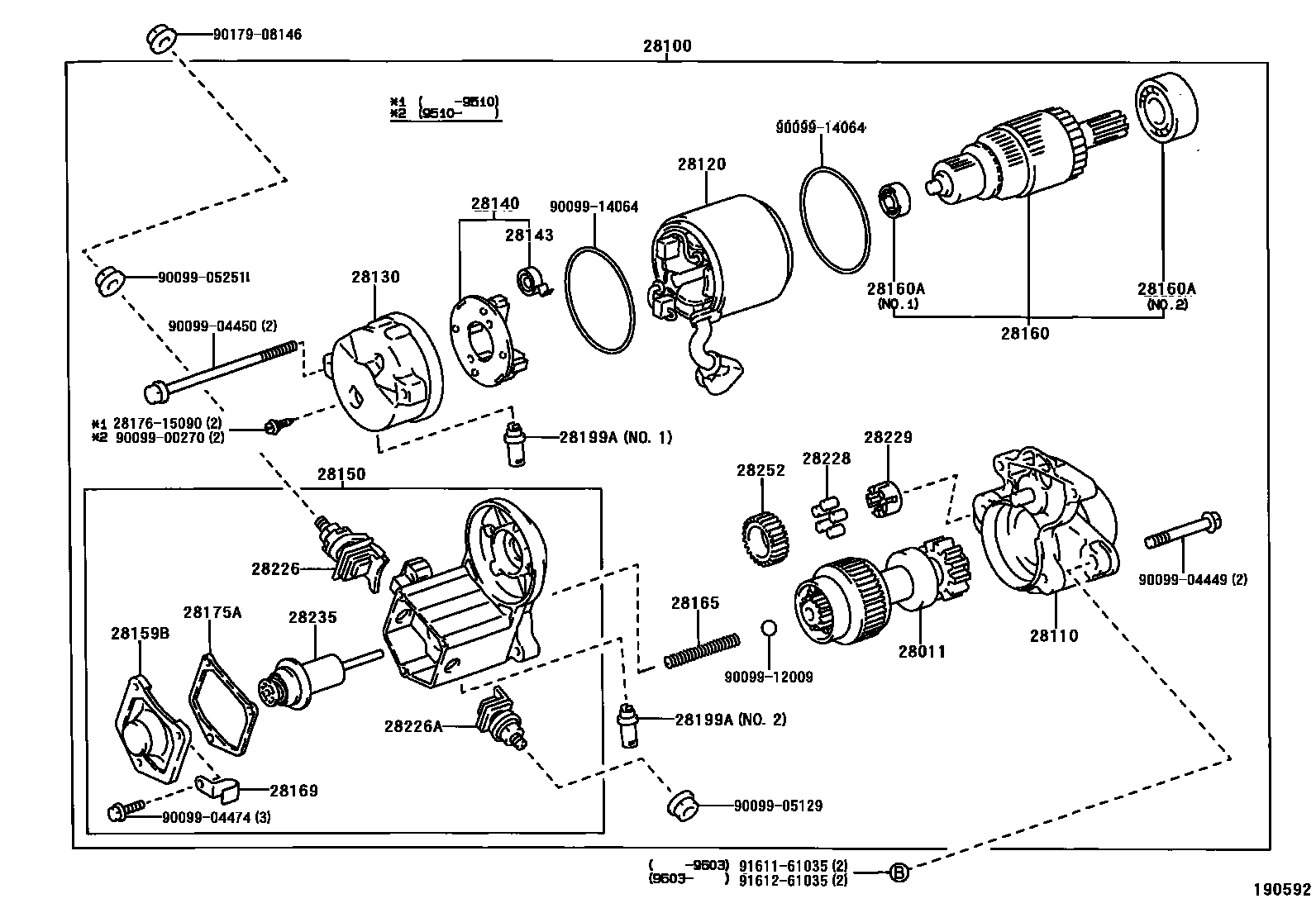

33 parts on this diagram · 2 diagrams in section
