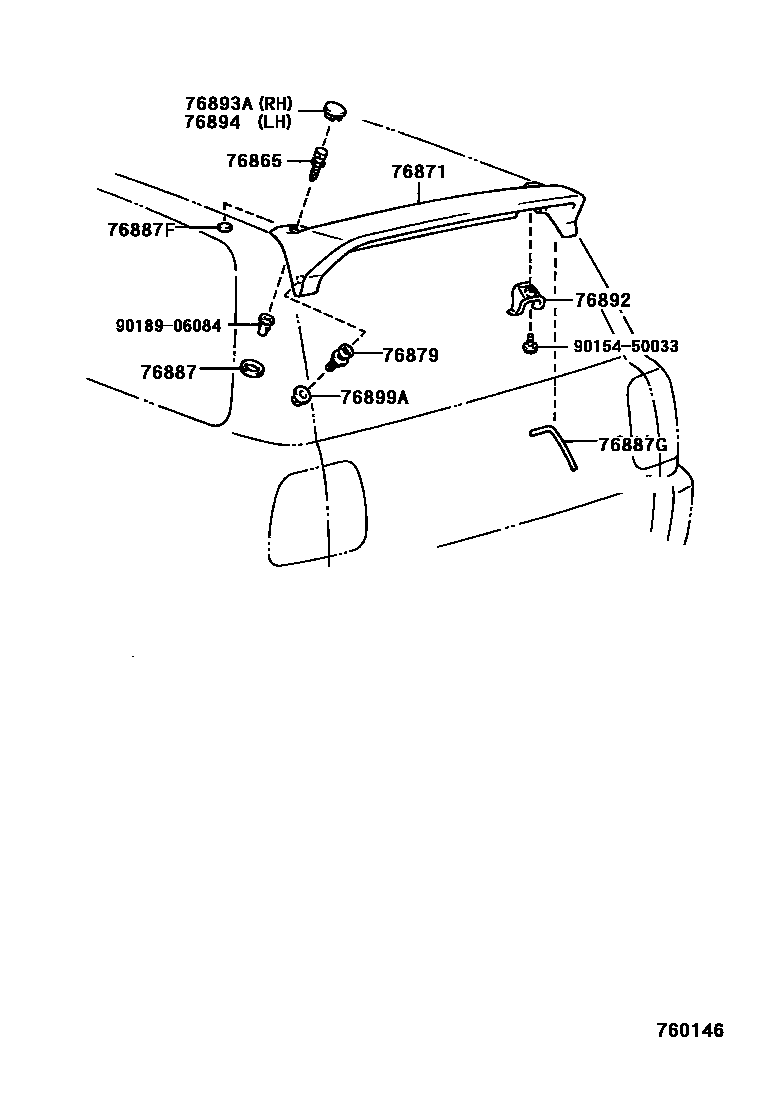

Toyota RAV4 — SPOILER & SIDE MUDGUARD

0001 1 0002 1 0003 1���� �����- & �� ����- �����-

76865RETAINER, REAR SPOILER, NO.1

main76865-42010iSXA1#..G,STD,X¥200199608

76871SPOILER, REAR

main76871-42900iSXA1#¥31,800199608-199709

sub76871-42901¥31,800

sub76892-42901¥1,300

main76871-42901iSXA1#..G,STD,X¥31,800199709

76879CLIP, REAR SPOILER, NO.1

main76879-42010iSXA1#..G,STD,X¥750199608

76887SEAL, REAR SPOILER

main76887-42020iSXA1#..G,STD,X¥680199805

76887FSEAL, REAR SPOILER, NO.2

main76887-42030iSXA1#..G,STD,X¥710199608

76887GSEAL, REAR SPOILER, NO.3

main76887-42040iSXA1#..G,STD,X¥680199608

76892SPOILER, REAR NO.2

main76892-42900iSXA1#¥1,050199608-199709

main76892-42901iSXA1#..G,STD,X¥1,300199709

76893ACOVER, REAR SPOILER, RH

main76893-42900iSXA1#¥850199608-199709

sub76893-42901¥350

main76893-42901iSXA1#..G,STD,X¥350199709

76894COVER, REAR SPOILER, LH

main76894-42900iSXA1#¥850199608-199709

sub76894-42901¥350

main76894-42901iSXA1#..G,STD,X¥350199709

76899ANUT, REAR SPOILER

main76899-42010iSXA1#..G,STD,X¥720199608

9015450033

main90154-50033¥120

9018906084

main90189-06084¥90

12 parts on this diagram · 3 diagrams in section
