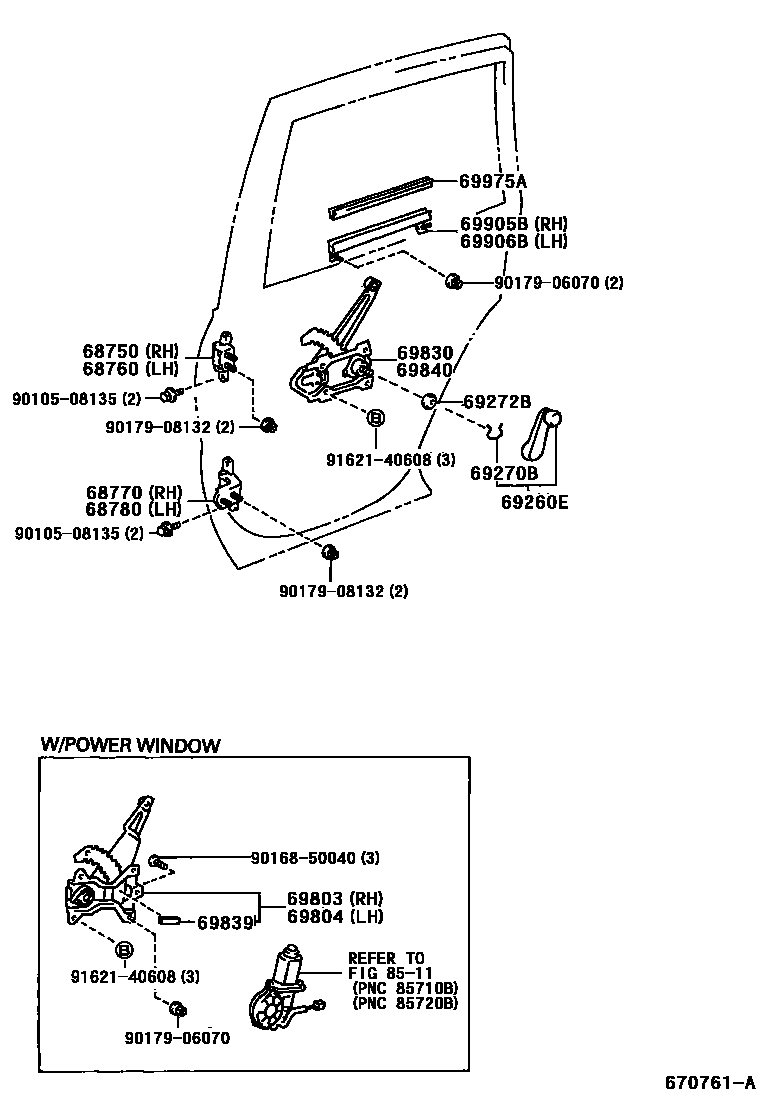

Toyota RAV4 — REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-42010iSXA11,16¥3,270199504

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-42010iSXA11,16¥3,270199504

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-22020iSXA11,16¥3,260199504

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-22020iSXA11,16¥3,260199504

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-20090-B0iSXA11..STD199504-199709

BLUEISH GRAY,TRIM1#

sub69260-20090¥1,620

main69260-20090-B1iSXA11,16..STD199709-199808

SHADOW GRAY,TRIM10,12

sub69260-20090¥1,620

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002iSXA11..STD¥180199504-199709

main90520-01274iSXA11,16..STD¥160199709-199808

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iSXA11..STD199504-199709

NATURAL WHITE,TRIM1#

sub69285-22010¥330

main69285-22010-08iSXA11,16..STD199709-199808

NATURAL WHITE,TRIM10,12

sub69285-22010¥330

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-42010iSXA11,16¥6,800199504

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-42010iSXA11,16¥6,800199504

69830REGULATOR ASSY, REAR QUARTER WINDOW, RH

main69830-42010iSXA11,16..STD¥6,800199504-199808

69839PAD, REAR DOOR WINDOW REGULATOR

main69839-12020iSXA11,16¥200199504

69840REGULATOR ASSY, REAR QUARTER WINDOW, LH

main69840-42010iSXA11,16..STD¥6,800199504-199808

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-42010iSXA11,16¥660199504

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-42010iSXA11,16¥660199504

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-42010iSXA11,16¥610199504

sub69971-12090¥400

8511

9010508135

main90105-08135¥140

9016850040

main90168-50040¥70

9017906070

main90179-06070¥180

9017908132

main90179-08132¥100

9162140608

main91621-40608¥60

21 parts on this diagram · 1 diagram in section
