Toyota RAV4 — RADIATOR GRILLE

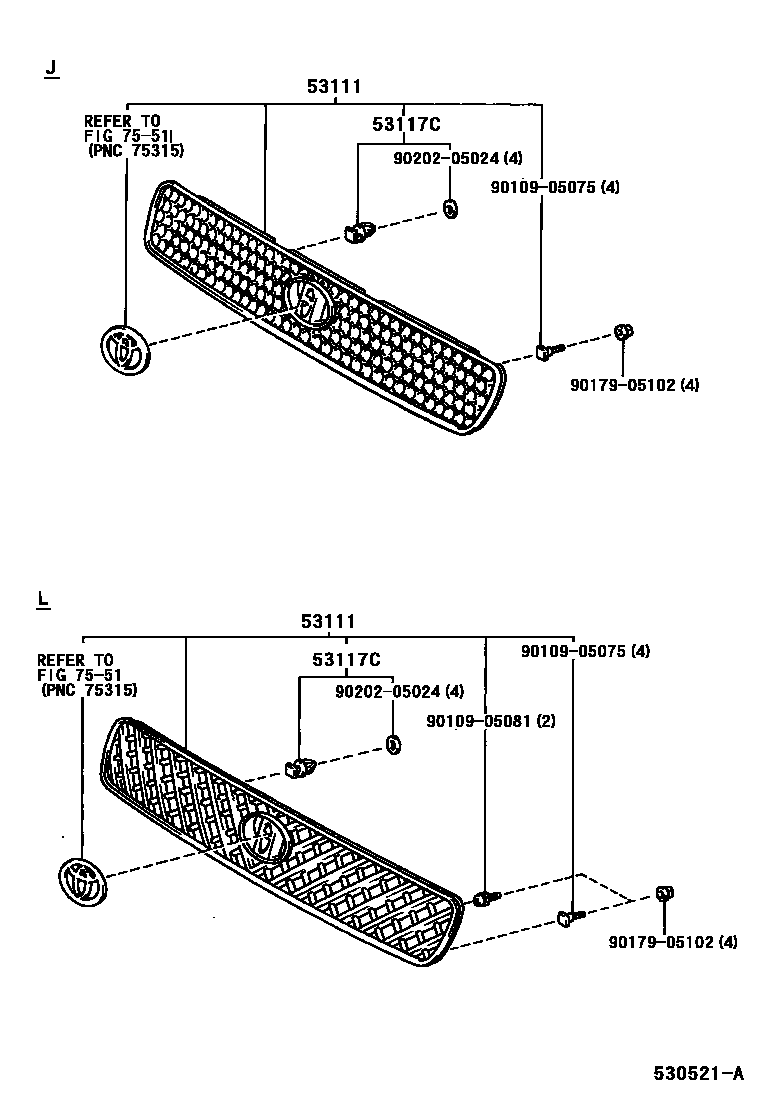

Parts diagram

53111GRILLE, RADIATOR

main53101-42010i¥11,400199404-199709

RAV4 J

main53101-42020i¥11,400199404-199709

RAV4 L

main53101-42040i¥12,500199709

RAV4 J

main53101-42050i¥12,500199709

RAV4 L

53117CRETAINER, RADIATOR GRILLE, NO.1

main53117-42010i¥130199709

main62955-12010i¥180199404-199709

7551

9010905075

main90109-05075¥120

9010905081

main90109-05081¥180

9017905102

main90179-05102¥90

9020205024

main90202-05024¥120

7 parts on this diagram · 1 diagram in section
