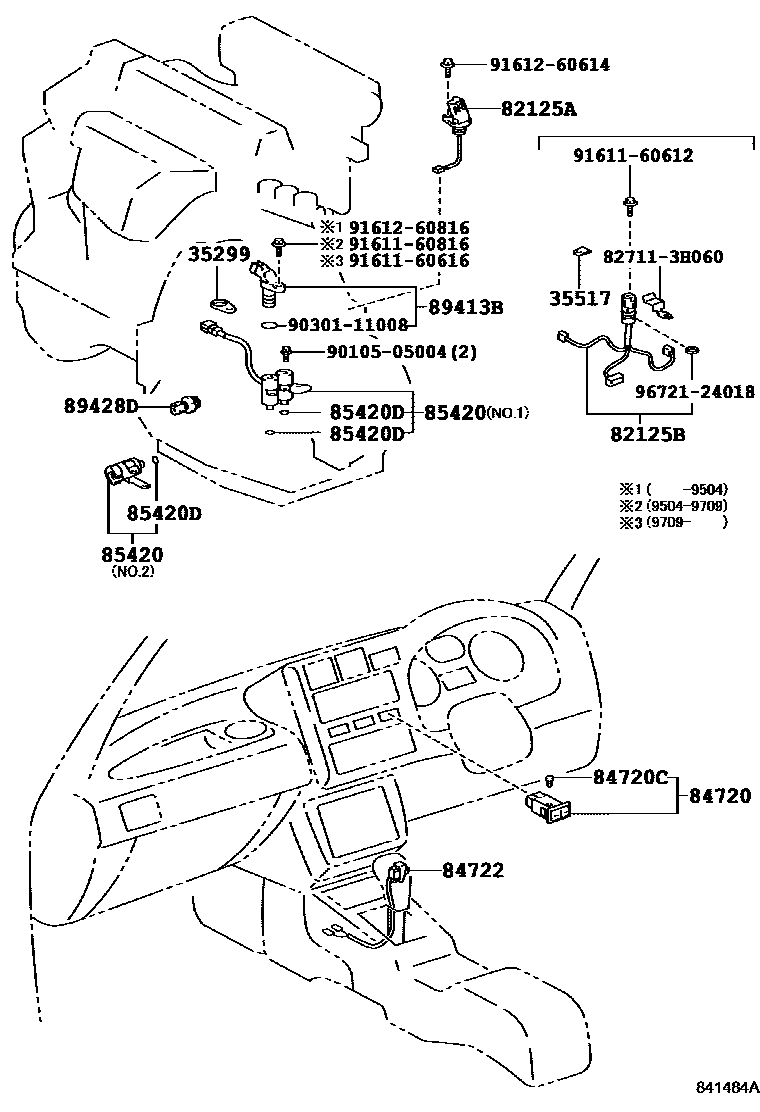

Toyota RAV4 — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

35299SPACER, TRANSMISSION REVOLUTION SENSOR

main35299-32010iSXA10,11..ATM¥140199406

35517PLATE, TRANSMISSION WIRE LOCK

main35517-32010iSXA10,11..ATM¥140199504

82125AWIRE, TRANSMISSION

main82125-20210iSXA10,11..ATM¥920199405

82125BWIRE, TRANSMISSION

main82125-12350iSXA15,16..ATM¥1,840199709

main82125-42010iSXA10,11..ATM¥1,780199404

84720SWITCH ASSY, PATTERN SELECT

main84720-42010iSXA10..ATM¥5,800199404-199504

main84720-42011iSXA1#..ATM¥6,000199504

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10420iSXA1#..ATM¥390199404

84722SWITCH, TRANSMISSION CONTROL

main84722-12050-C0iSXA1#..ATM199404-199709

BLACK,TRIM1#

sub84722-12050¥3,110

sub84722-12060¥3,140

main84722-12060-C0iSXA11,16..ATM..STD199808-200005

BLACK,TRIM10,11,12,19

sub84722-12060¥3,140

main84722-12060-C0iSXA11,16..ATM..STD199808-200005

BLACK,TRIM1#,10,11

sub84722-12060¥3,140

main84722-12060-C0iSXA10..ATM..X199808-200005

BLACK,TRIM10,11,19

sub84722-12060¥3,140

main84722-12060-C0iSXA10,15..ATM;SXA11..ATM..G199709-200005

BLACK,TRIM1#

sub84722-12060¥3,140

main84722-12060-C0iSXA11,16..ATM..STD199709-199808

BLACK,TRIM10,12

sub84722-12060¥3,140

main84722-12060-C0iSXA10,15..ATM..(STD,X)199710-199808

BLACK,TRIM10,11

sub84722-12060¥3,140

85420SOLENOID ASSY, TRANSMISSION

main85420-12100iSXA15,16..ATM¥16,200199709-199809

sub85420-21010¥11,400

main85420-12120iSXA15,16..ATM¥16,200199709-199809

sub85420-21030¥11,400

main85420-12140iSXA15,16..ATM¥16,200199709-199809

sub85420-21050¥11,400

main85420-21010iSXA15,16..ATM¥11,400199809

main85420-21040iSXA15,16..ATM¥11,400199809

main85420-21060iSXA15,16..ATM¥11,400199809

main85420-32102iSXA10,11..ATM¥13,600199404

main85420-32111iSXA10,11..ATM¥13,600199701

main85420-32120iSXA10..ATM;SXA11..ATM..STD¥13,600199404-199701

sub85420-32121¥13,600

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iSXA1#..ATM¥120199404

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010iSXA10,11..ATM¥6,100199404

sub89413-32011¥4,520

89428DSWITCH, TEMPERATURE, NO.2

main89428-12140iSXA10,11..ATM¥5,300199404

827113H060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H060¥380

9010505004

main90105-05004¥80

9030111008

main90301-11008¥160

9161160612

main91611-60612¥130

9161160616

main91611-60616¥110

9161160816

main91611-60816¥230

9161260614

main91612-60614¥120

9161260816

main91612-60816¥120

9672124018

main96721-24018¥400

20 parts on this diagram · 2 diagrams in section
