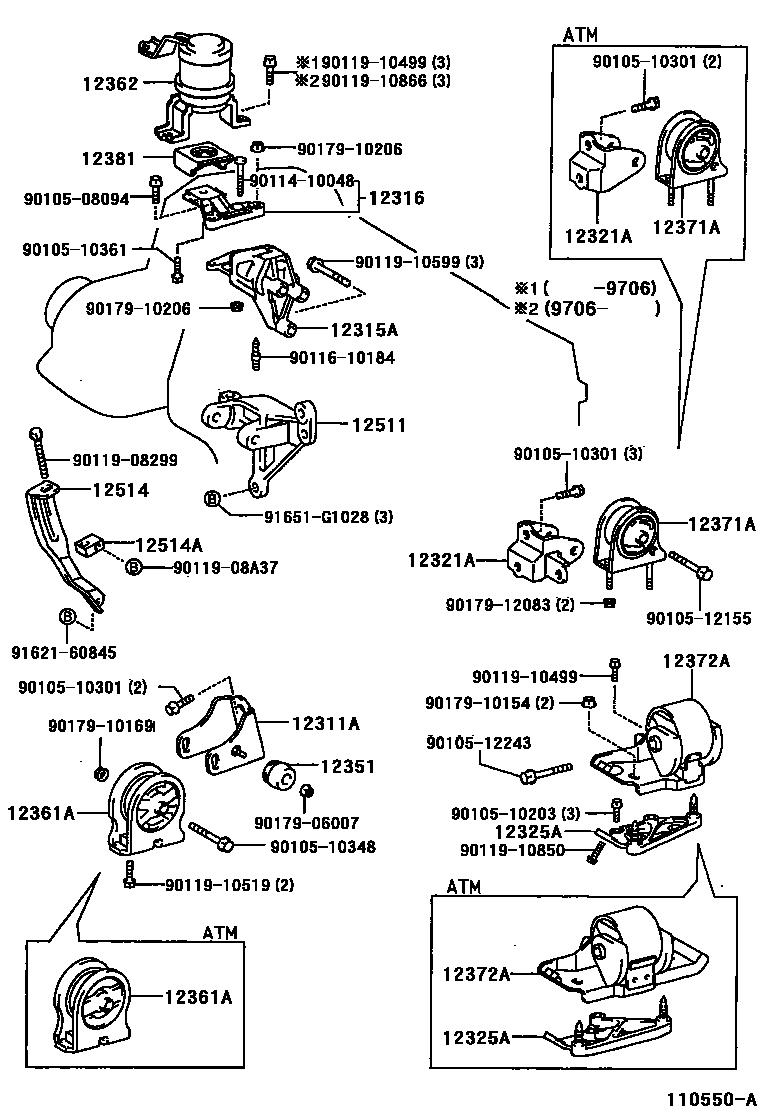

Toyota RAV4 — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-74190i3S#..SXA1#¥1,940199404

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-74120i3SFE..SXA1#¥6,000199404-199608

main12315-74130i3SGE..SXA10,11¥7,500199608

main12315-74140i3SFE..SXA1#¥5,500199608

12316BRACKET, ENGINE MOUNTING, NO.2 RH

main12316-74100i3S#..SXA1#¥2,490199404-199808

main12316-74100i3SFE..SXA1#¥2,490199808

main12316-74190i3SGE..SXA10,11¥2,300199808

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-74280i3SFE..SXA1#..MTM¥1,940199404-199511

main12321-74290i3S#..SXA10,11..ATM¥1,940199404

main12321-74370i3SFE..SXA15,16..ATM¥2,680199709

main12321-74390i3S#..SXA1#..MTM¥1,940199511

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-74200i3S#..SXA1#..MTM¥3,470199404-199709

main12325-74210i3S#..SXA1#..ATM¥3,480199404-199709

main12325-74380i3S#..SXA1#..MTM¥4,180199709

main12325-74390i3S#..SXA10,11..ATM¥3,050199709

main12325-74400i3SFE..SXA15,16..ATM¥3,810199709

12351DAMPER, ENGINE MOUNTING

main12351-63010i3S#..SXA1#¥3,010199404

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-74340i3S#..SXA1#..MTM¥4,870199404

main12361-74370i3S#..SXA1#..ATM¥4,300199404

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-74390i3SFE..SXA1#¥11,200199404-199608

sub12362-74391¥11,200

main12362-74391i3SFE..SXA1#¥11,200199808

main12362-74391i3S#..SXA1#¥11,200199608-199808

main12362-74530i3SGE..SXA10,11¥9,800199808

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-74460i3SFE..SXA1#..MTM¥4,840199404-199509

main12371-74461i3S#..SXA1#..MTM¥4,850199808

main12371-74461i3SFE..SXA15,16;3S#..SXA10,11..MTM¥4,850199509-199808

main12371-74470i3SFE..SXA1#..ATM¥4,290199404-199509

main12371-74471i3S#..SXA10,11..ATM¥4,850199509

main12371-74630i3SFE..SXA15,16..ATM¥4,850199808

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-74400i3S#..SXA1#..MTM¥9,200199404-199709

main12372-74520i3S#..SXA1#..ATM¥8,800199404-199709

main12372-74610i3S#..SXA1#..MTM¥8,500199709

main12372-74620i3S#..SXA1#..ATM¥8,500199709

12381STABILIZER, ENGINE MOUNTING

main12381-74050i3S#..SXA1#¥980199404

12511BRACKET, ALTERNATOR, NO.1

main12511-74051i3SFE..SXA1#¥6,400199404-200005

main12511-88481i3SGE..SXA10,11¥14,800199608-199808

main12511-88560i3SGE..SXA10,11¥9,800199808-200005

12514BAR, ALTERNATOR BELT ADJUSTING

main12514-74011i3SFE..SXA1#¥1,260199404-199702

sub12514-74012¥1,260

sub91621-60845¥250

main12514-74012i3SFE..SXA1#¥1,260199702-199709

main12514-74051i3SFE..SXA1#¥2,330199709

12514ASLIDER, FAN BELT ADJUSTING

main16385-64011i3SFE..SXA1#¥910199404

9010508094

main90105-08094¥170

9010510203

main90105-10203¥240

9010510301

main90105-10301¥110

9010510348

main90105-10348¥310

9010510361

main90105-10361¥110

9010512155

main90105-12155¥270

9010512243

main90105-12243¥450

9011410048

main90114-10048¥230

9011610184

main90116-10184¥240

9011908299

main90119-08299¥190

9011908A37

main90119-08A37¥170

9011910499

main90119-10499¥200

9011910519

main90119-10519¥160

9011910599

main90119-10599¥260

9011910850

main90119-10850¥230

9011910866

main90119-10866¥100

9017906007

main90179-06007¥80

9017910154

main90179-10154¥110

9017910169

main90179-10169¥200

9017910206

main90179-10206¥220

9017912083

main90179-12083¥230

9162160845

main91621-60845¥250

91651G1028

main91651-G1028¥190

37 parts on this diagram · 5 diagrams in section
