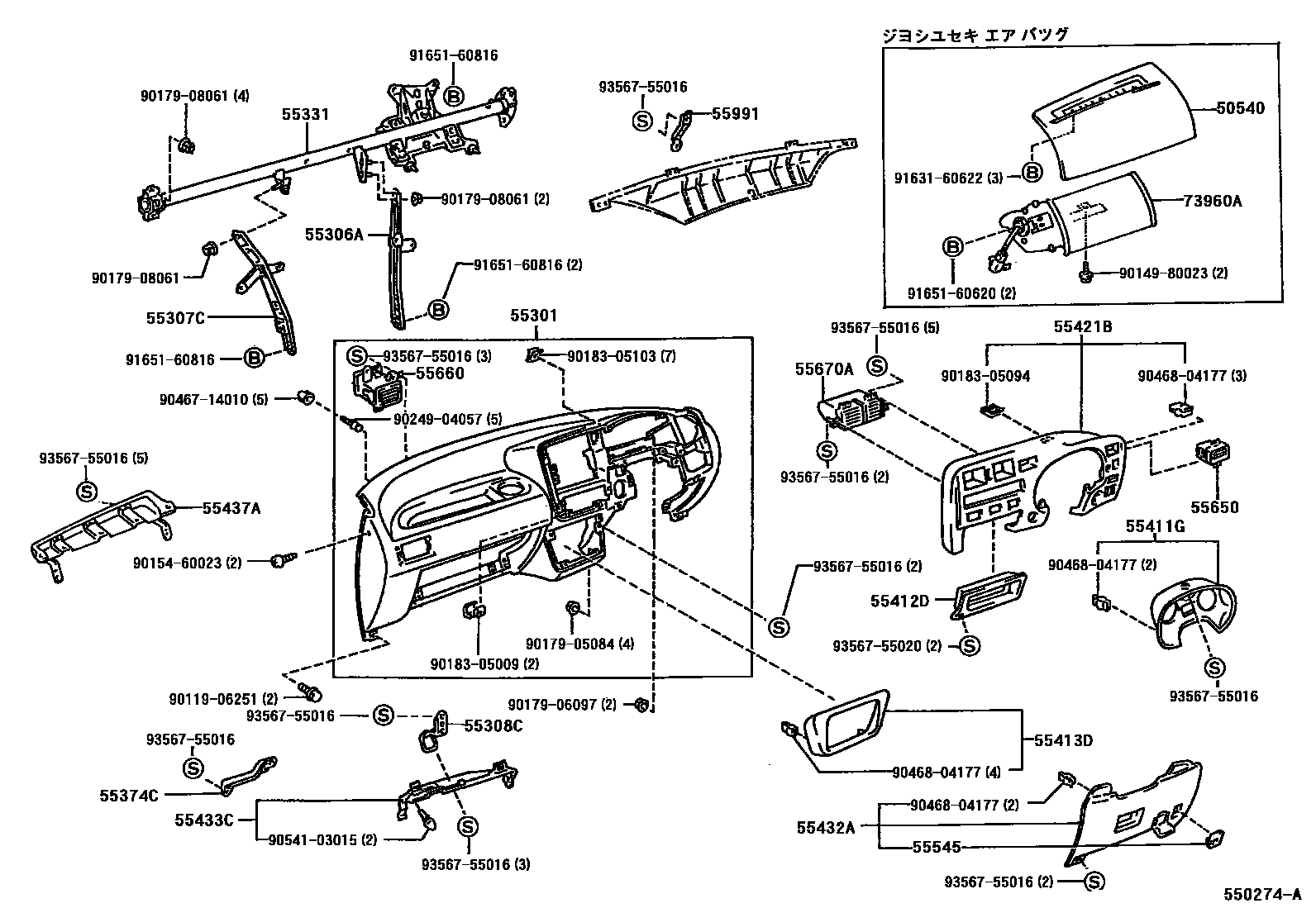

Toyota RAV4 — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

50540DO0R ASSY, AIRBAG PASSENGER

main50540-42010-B0iSXA1#199608-199709

BLUISH GRAY,TRIM1#

sub50540-42030¥8,600

main50540-42030-B0iSXA11,16..STD199709-199808

SHADOW GRAY,TRIM10,12,19

main50540-42030-B0iSXA10,15..SOT,STD,X199709-200005

SHADOW GRAY,TRIM1#

main50540-42030-B0iSXA11,16..STD199710-200005

SHADOW GRAY,TRIM10,11,19

main50540-42030-B0iSXA11,16..STD199808-200005

SHADOW GRAY,TRIM10,11,12,19

main50540-42030-B0iSXA10..X199712-199808

SHADOW GRAY,TRIM10,11

main50540-42030-B0iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

55301PANEL SUB-ASSY, INSTRUMENT

main55301-42010-B0iSXA1#199404-199608

BLUISH GRAY,TRIM1#

main55301-42030-B0iSXA1#199608-199709

BLUISH GRAY,TRIM1#

main55301-42030-B1iSXA10..G;SXA11..WIB199710-200005

SHADOW GRAY,TRIM10,11,19

main55301-42030-B1iSXA10..G;SXA11..WIB199709-200005

SHADOW GRAY,TRIM1#

main55301-42030-B1iSXA10,15..SOT,STD,X199808-200005

SHADOW GRAY,TRIM10,11,12,19

main55301-42030-B1iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

main55301-42030-B1iSXA11,16..STD199709-199808

SHADOW GRAY,TRIM10,12,19

main55301-42030-B1iSXA10..X199712-199808

SHADOW GRAY,TRIM10,11

main55301-42060-B0iSXA10,15..SOT,STD,X199710-200005

main55301-42060-B0iSXA10,15..STD199709-199710

main55301-42060-B0iSXA11,16..STD199709-199808

main55301-42060-B0iSXA11,16..STD199709-200005

main55301-42060-B0iSXA10..X199712-199808

main55301-42060-B0iSXA10,15..SOT,STD,X199808-200005

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-42010iSXA1#¥2,870199404-199808

main55306-42050iSXA10,11..G¥3,010199808

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-42010iSXA1#¥2,380199404-199608

main55307-42030iSXA1#¥2,160199608

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-42010iSXA1#¥580199404-199608

main55308-42030iSXA1#¥1,470199608

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-42010iSXA1#¥15,400199404-199608

sub55330-42011¥15,400

main55330-42030iSXA1#¥15,900199608-199709

main55330-42090iSXA1#¥16,300199709

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-42010iSXA1#¥460199404

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-42010iSXA1#¥4,190199404

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-42010-C0iSXA1#199404-200005

BLACK,TRIM1#

main55412-42010-C0iSXA10,15..STD199709-199710

BLACK,TRIM10,19

main55412-42010-C0iSXA11,16..STD199709-199808

BLACK,TRIM10,12,19

main55412-42010-C0iSXA10,15..STD199710-200005

BLACK,TRIM10,11,19

main55412-42010-C0iSXA10..X199712-199808

BLACK,TRIM10,11

main55412-42010-C0iSXA10,15..SOT,STD,X199808-200005

BLACK,TRIM10,11,12,19

55413DPANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER

main55413-42010-B0iSXA1#199404-199709

BLUISH GRAY,TRIM1#

sub55413-42010¥1,780

main55413-42030-B0iSXA1#..STD199612-199709

sub55413-42030¥4,750

main55413-42030-B0iSXA1#..STD199612-199709

sub55413-42030¥4,750

main55413-42030-B1iSXA10,15..STD199709-199710

sub55413-42030¥4,750

main55413-42030-B1iSXA11,16..STD199709-199808

sub55413-42030¥4,750

main55413-42030-B1iSXA11,16..STD199709-200005

sub55413-42030¥4,750

main55413-42030-B1iSXA10,15..STD199710-200005

sub55413-42030¥4,750

main55413-42030-B1iSXA10..X199712-199808

sub55413-42030¥4,750

main55413-42030-B1iSXA10,15..SOT,STD,X199808-200005

sub55413-42030¥4,750

55421BPANEL, INSTRUMENT CLUSTER FINISH, UPPER

main55421-42010-C0iSXA1#199404-199709

BLACK,TRIM1#

main55421-42060-B0iSXA10,15..STD199709-199710

DARK GRAY,TRIM10,19

main55421-42060-B0iSXA11,16..STD199709-199808

DARK GRAY,TRIM10,12,19

main55421-42060-B0iSXA11,16..STD199709-200005

DARK GRAY,TRIM1#

main55421-42060-B0iSXA10,15..STD199710-200005

DARK GRAY,TRIM10,11,19

main55421-42060-B0iSXA10..X199712-199808

DARK GRAY,TRIM10,11

main55421-42060-B0iSXA10,15..SOT,STD,X199808-200005

DARK GRAY,TRIM10,11,12,19

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-42010-B0iSXA1#199404-199709

BLUISH GRAY,TRIM1#

main55432-42030-B0iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

main55432-42030-B0iSXA11,16..STD199709-199808

SHADOW GRAY,TRIM10,12,19

main55432-42030-B0iSXA11,16..STD199709-200005

SHADOW GRAY,TRIM1#

main55432-42030-B0iSXA10,15..STD199710-200005

SHADOW GRAY,TRIM10,11,19

main55432-42030-B0iSXA10..X199712-199808

SHADOW GRAY,TRIM10,11

main55432-42030-B0iSXA10,15..SOT,STD,X199808-200005

SHADOW GRAY,TRIM10,11,12,19

55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH

main55433-42010iSXA1#¥2,520199404

55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1

main55437-42010iSXA1#¥2,100199608

55545COVER, FUSE BOX OPENING

main55545-42010-B0iSXA10,15..SOT,STD,X199709-200005

SHADOW GRAY,TRIM1#

main55545-42010-B0iSXA11..WIB;SXA10..G,SOT199709-199808

SHADOW GRAY,TRIM10,12,19

main55545-42010-B0iSXA10,15..STD199710-200005

SHADOW GRAY,TRIM10,11,19

main55545-42010-B0iSXA10..X199712-199808

SHADOW GRAY,TRIM10,11

main55545-42010-B0iSXA10,15..SOT,STD,X199808-200005

SHADOW GRAY,TRIM10,11,12,19

main55545-42010-B0iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-42010-C0iSXA1#199404-199902

BLACK,TRIM1#

sub55650-42011¥3,590

main55650-42010-C0iSXA10,15..STD199709-199710

BLACK,TRIM10,19

sub55650-42011¥3,590

main55650-42010-C0iSXA11,16..STD199709-199808

BLACK,TRIM10,12,19

sub55650-42011¥3,590

main55650-42010-C0iSXA10,15..STD199710-199808

BLACK,TRIM10,11,19

sub55650-42011¥3,590

main55650-42010-C0iSXA10..X199712-199902

BLACK,TRIM10,11

sub55650-42011¥3,590

main55650-42010-C0iSXA10,15..SOT,STD,X199808-199902

BLACK,TRIM10,11,12,19

sub55650-42011¥3,590

main55650-42011-C0iSXA11..WIB;SXA10..G,SOT199902-200005

BLACK,TRIM10,11,12,19

main55650-42011-C0iSXA11,16..STD199902-200005

BLACK,TRIM10,11,19

main55650-42011-C0iSXA11,16..STD199902-200005

BLACK,TRIM1#,10,11

main55650-42011-C0iSXA11,16..STD199902-200005

BLACK,TRIM1#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-42010-B0iSXA1#199404-199709

BLUISH GRAY,TRIM1#

sub55660-42010¥5,200

main55660-42010-B1iSXA11,16..STD199709-200005

SHADOW GRAY,TRIM1#

sub55660-42010¥5,200

main55660-42010-B1iSXA11..WIB;SXA10..G,SOT199709-199808

SHADOW GRAY,TRIM10,12,19

sub55660-42010¥5,200

main55660-42010-B1iSXA10,15..STD199710-200005

SHADOW GRAY,TRIM10,11,19

sub55660-42010¥5,200

main55660-42010-B1iSXA10..X199712-199808

SHADOW GRAY,TRIM10,11

sub55660-42010¥5,200

main55660-42010-B1iSXA10,15..SOT,STD,X199808-200005

SHADOW GRAY,TRIM10,11,12,19

sub55660-42010¥5,200

main55660-42010-B1iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

sub55660-42010¥5,200

55670AREGISTER ASSY, INSTRUMENT PANEL, CENTER

main55670-42010-C0iSXA10..G;SXA11..WIB199404-199902

BLACK,TRIM1#

sub55670-42011¥8,500

main55670-42010-C0iSXA10,15..STD199709-199710

BLACK,TRIM10,19

sub55670-42011¥8,500

main55670-42010-C0iSXA11,16..STD199709-199808

BLACK,TRIM10,12,19

sub55670-42011¥8,500

main55670-42010-C0iSXA10,15..STD199710-199808

BLACK,TRIM10,11,19

sub55670-42011¥8,500

main55670-42010-C0iSXA10..X199712-199902

BLACK,TRIM10,11

sub55670-42011¥8,500

main55670-42010-C0iSXA10,15..SOT,STD,X199808-199902

BLACK,TRIM10,11,12,19

sub55670-42011¥8,500

main55670-42011-C0iSXA11,16..STD199902-200005

BLACK,TRIM10,11,19

main55670-42011-C0iSXA11,16..STD199902-200005

BLACK,TRIM10,11,12,19

main55670-42011-C0iSXA11,16..STD199902-200005

BLACK,TRIM1#

55991BRACKET, DEFROSTER DUCT, NO.1

main55991-42010iSXA1#¥320199404

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0W120iSXA1#¥206,000199608-199709

main73960-0W181iSXA1#¥120,000199709

9011906251

main90119-06251¥160

9014980023

main90149-80023¥120

9015460023

main90154-60023¥120

9017905084

main90179-05084¥160

9017906097

main90179-06097¥320

9017908061

main90179-08061¥80

9018305009

main90183-05009¥90

9018305094

main90183-05094¥90

9018305103

main90183-05103¥90

9024904057

main90249-04057¥230

9046714010

main90467-14010¥160

9046804177

main90468-04177¥40

9054103015

main90541-03015¥110

9163160622

main91631-60622¥70

9165160620

main91651-60620¥80

9165160816

main91651-60816¥100

9356755016

main93567-55016¥110

9356755020

main93567-55020¥70

38 parts on this diagram · 2 diagrams in section
