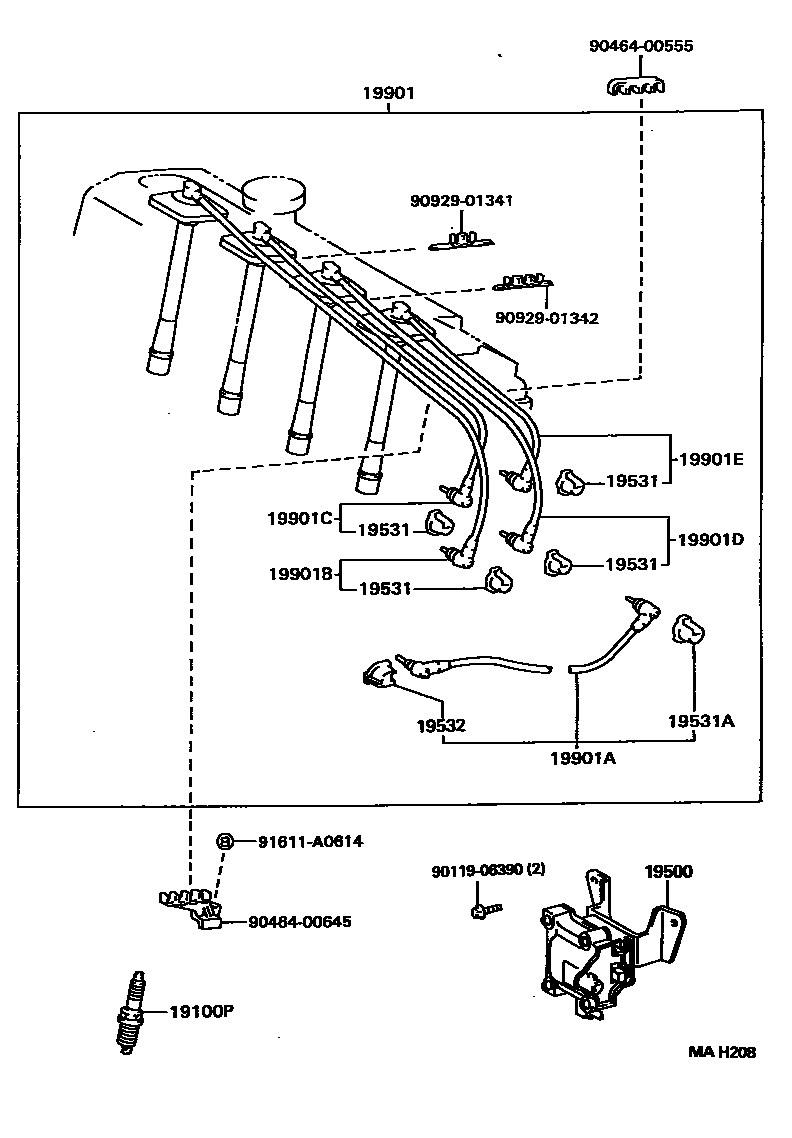

Toyota RAV4 — IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1

19100PPLUG, SPARK

main90919-01178i3SGE..SXA10,11¥1,500199808

sub90919-01210¥1,700

main90919-01179i3SGE..SXA10,11¥1,500199808

main90919-01180i3SGE..SXA10,11¥1,500199608-199808

sub90919-01231¥1,700

main90919-01181i3SGE..SXA10,11¥1,500199608-199808

main90919-01184i3SFE..SXA1#¥520199404-199709

main90919-01198i3SFE..SXA1#¥660199709

19500COIL ASSY, IGNITION

main19500-74100i3SFE..SXA1#¥16,500199404-199608

main19500-74120i3S#..SXA1#¥16,700199608-199808

main90919-02227i3SGE..SXA10,11¥8,800199808

sub90919-02275¥8,700

19531HOLDER, RESISTIVE CORD, NO.1

main19531-74010i3SFE..SXA1#¥460199404-199709

main19531-74020i3SGE..SXA10,11¥670199608-199808

19531AHOLDER, RESISTIVE CODE, NO.3

main19531-74010i3SFE..SXA1#¥460199404-199608

main19531-74010i3SFE..SXA1#¥460199608-199709

main19531-74020i3SFE..SXA1#¥670199608-199709

19532HOLDER, RESISTIVE CODE, NO.2

main19532-50010i3SFE..SXA1#¥680199404-199608

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21585i3SFE..SXA1#¥6,400199404-199608

main90919-21602i3SGE..SXA10,11¥8,500199608-199808

main90919-21609i3SFE..SXA1#¥7,400199608-199709

sub90919-29265¥7,400

main90919-22386i3SFE..SXA1#¥10,600199709-199808

sub90919-22400¥9,300

main90919-22400i3SFE..SXA1#¥9,300199808

19901ACORD, COIL RESISTIVE

main19590-74250i3SFE..SXA1#¥2,860199404-199608

sub19590-74280¥1,420

main19590-74290i3SGE..SXA10,11¥940199608-199808

main19590-74300i3SFE..SXA1#¥950199608-199709

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15396i3SGE..SXA10,11¥1,900199608-199808

main90919-15400i3SFE..SXA1#¥1,610199404-199709

sub90919-15578¥1,610

main90919-15466i3SFE..SXA1#¥2,530199709-199808

sub90919-15546¥2,390

main90919-15546i3SFE..SXA1#¥2,390199808

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15397i3SGE..SXA10,11¥1,900199608-199808

main90919-15401i3SFE..SXA1#¥1,410199404-199709

sub90919-15579¥1,410

main90919-15465i3SFE..SXA1#¥2,530199709-199808

sub90919-15547¥2,390

main90919-15547i3SFE..SXA1#¥2,390199808

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15398i3SGE..SXA10,11¥1,900199608-199808

main90919-15402i3SFE..SXA1#¥1,410199404-199709

sub90919-15580¥1,410

main90919-15464i3SFE..SXA1#¥2,370199709-199808

sub90919-15548¥2,230

main90919-15548i3SFE..SXA1#¥2,230199808

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15349i3SFE..SXA1#¥2,030199404-199709

sub90919-15581¥2,030

main90919-15399i3SGE..SXA10,11¥1,750199608-199808

main90919-15463i3SFE..SXA1#¥2,390199709-199808

sub90919-15549¥2,080

main90919-15549i3SFE..SXA1#¥2,080199808

9011906390

main90119-06390¥70

9046400555

main90464-00555¥350

9046400645

main90464-00645¥270

9092901341

main90929-01341¥330

9092901342

main90929-01342¥350

91611A0614

main91611-A0614¥120

17 parts on this diagram · 5 diagrams in section
