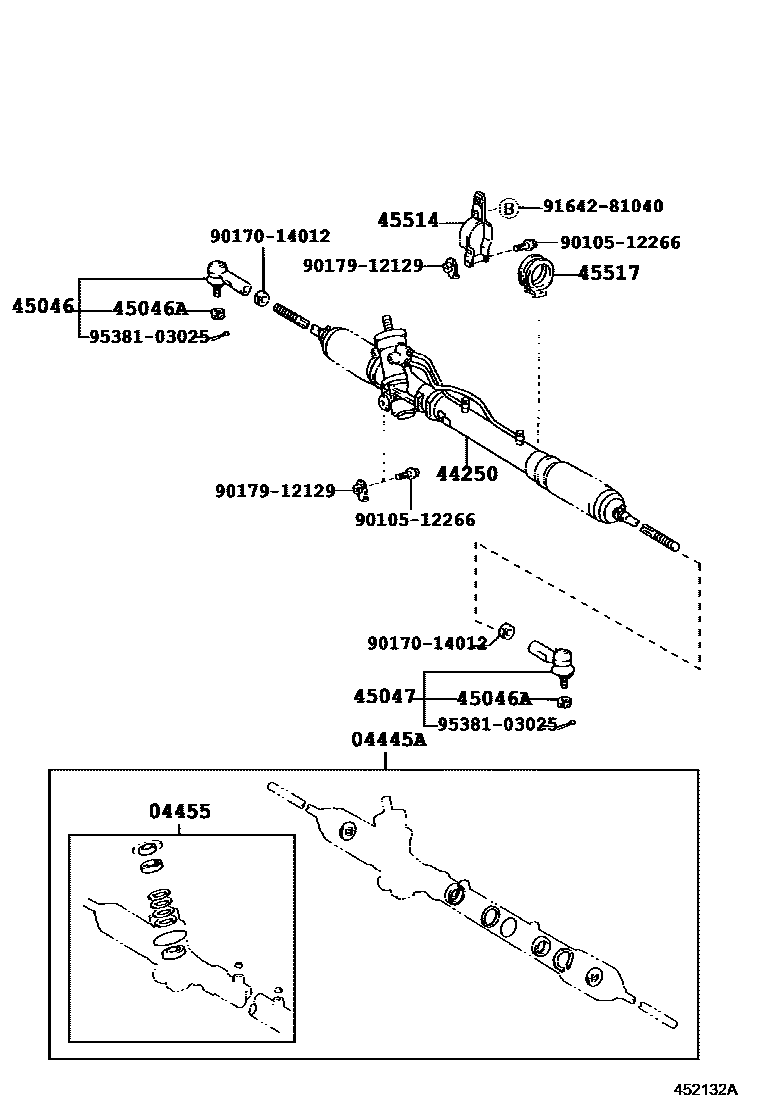

Toyota RAV4 — FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-42010iSXA10¥6,200199404-199501

main04445-42020iSXA1#¥6,200199501-200003

main04445-42040iSXA1#¥6,200200003-200005

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-12090iSXA1#¥3,090199404-200003

main04455-42020iSXA1#¥6,200200003-200005

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-42010iSXA10¥101,000199404-199608

main44250-42011iSXA10¥107,000199608-199709

sub44250-42012¥107,000

main44250-42012iSXA10,15¥107,000199709-200003

sub44250-42070¥107,000

main44250-42030iSXA11¥107,000199504-199608

main44250-42031iSXA11¥107,000199608-199709

sub44250-42032¥107,000

main44250-42032iSXA11,16¥107,000199709-200003

sub44250-42090¥107,000

main44250-42070iSXA10,15¥107,000200003-200005

main44250-42090iSXA11,16¥107,000200003-200005

45046END SUB-ASSY, TIE ROD, RH

main45046-29305iSXA1#¥3,520199404

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iSXA1#¥130199404

45047END SUB-ASSY, TIE ROD, LH

main45046-29305iSXA1#¥3,520199404

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-42010iSXA1#¥1,320199404

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-42010iSXA1#¥1,140199404

9010512266

main90105-12266¥390

9017014012

main90170-14012¥110

9017912129

main90179-12129¥230

9164281040

main91642-81040¥240

9538103025

main95381-03025¥130

13 parts on this diagram · 2 diagrams in section
