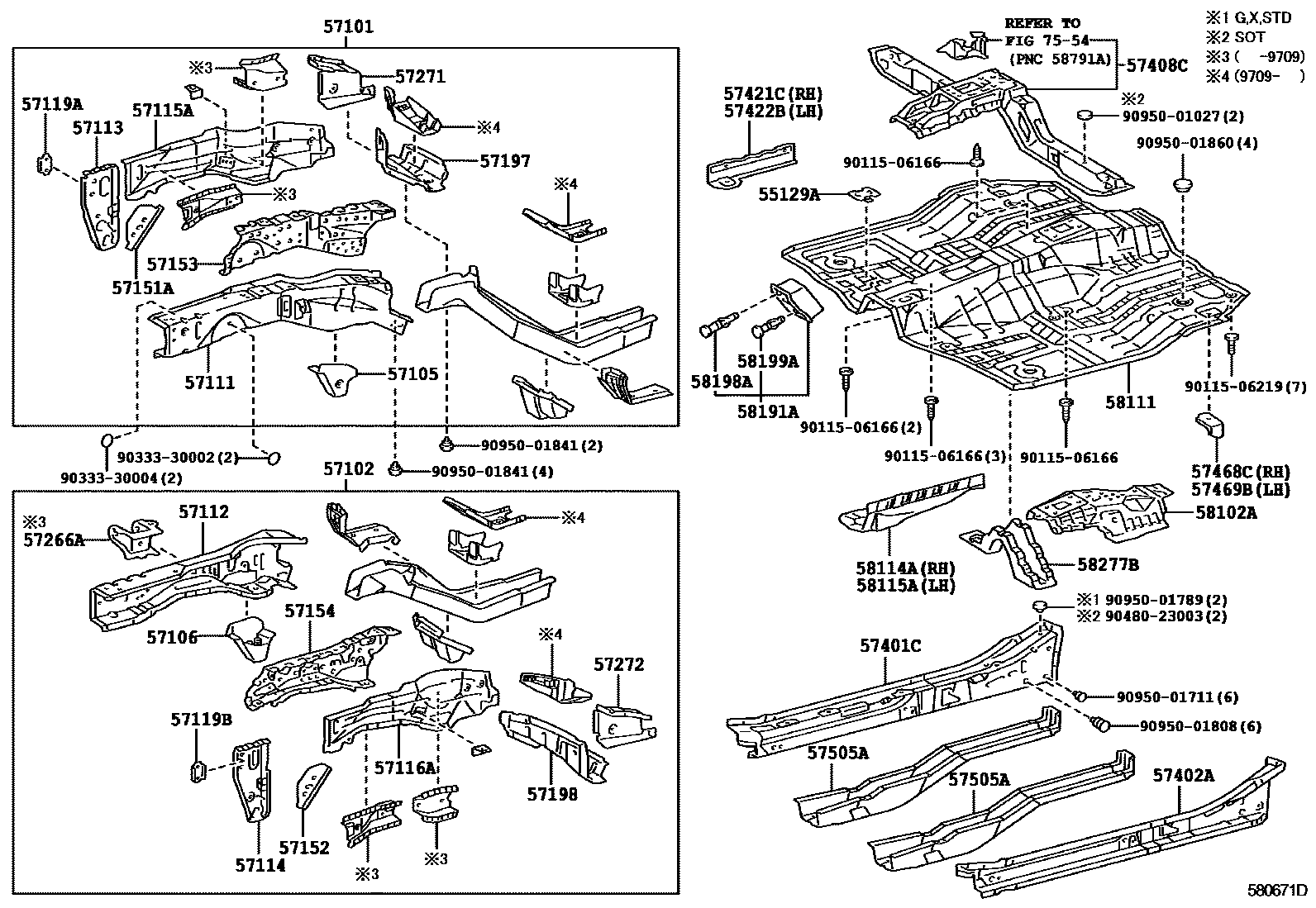

Toyota RAV4 — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
55129ACOVER, FRONT FLOOR HOLE
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH
57106RETAINER SUB-ASSY, SUSPENSION MEMBER, INNER
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57119APLATE, FRONT SIDE MEMBER, FRONT RH
57119BPLATE, FRONT SIDE MEMBER, FRONT LH
57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57266ABRACKET, ENGINE MOUNTING, LH
57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH
57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS
57421CPLATE, FLOOR SIDE RAIL, RH
57422BPLATE, FLOOR SIDE RAIL, LH
57468CBRACKET, FRONT SEAT, OUTSIDE, RH
57469BBRACKET, FRONT SEAT, OUTSIDE LH
57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
58115AREINFORCEMENT, FRONT FLOOR PANEL
58191AFOOTREST, FRONT FLOOR, RH
58198ACLIP, FOOTREST, NO.1
58199ACLIP, FOOTREST, NO.2
58277BREINFORCEMENT, DRIVE SHAFT CENTER SUPPORT
7554
9011506166
9011506219
9033330002
9033330004
9048023003
9095001027
9095001711
9095001789
9095001808
9095001841
9095001860
50 parts on this diagram · 1 diagram in section
