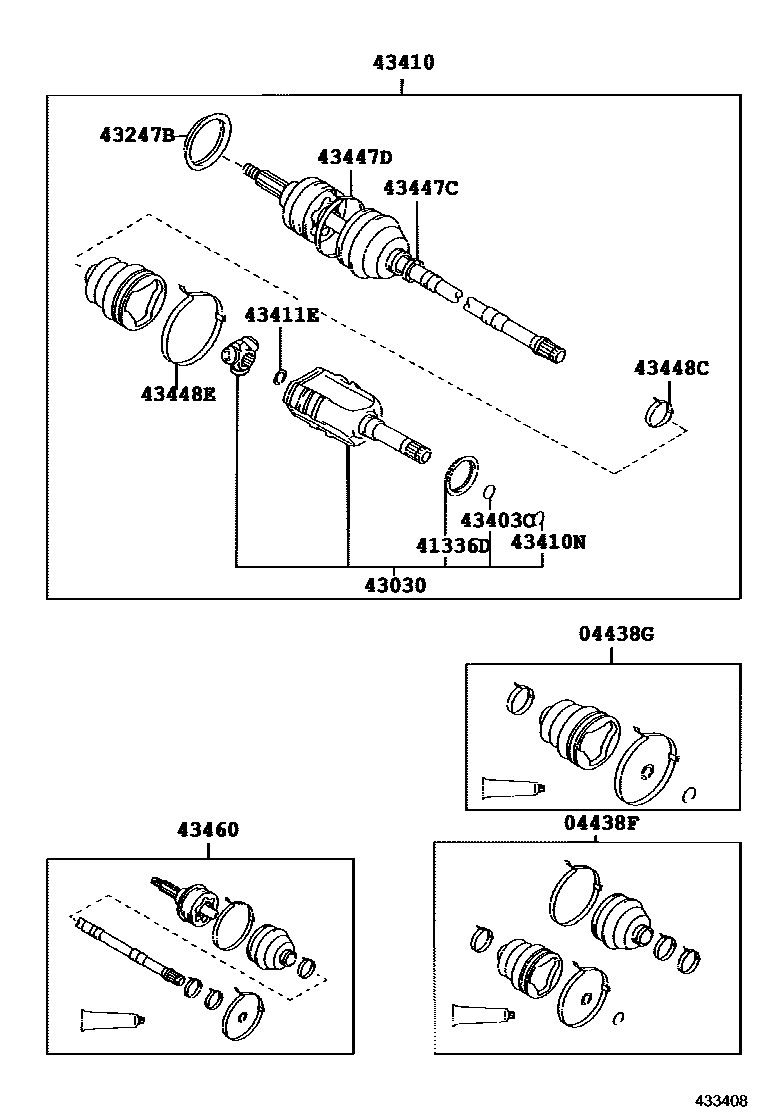

Toyota RAV4 — FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1LH 0006 1RH 0007 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-12290iSXA15,16..ATM¥10,800199709-199804

sub04438-20131¥10,800

main04438-12300iSXA10,11¥10,800199406-199804

sub04438-12301¥10,800

main04438-12301iSXA10,11¥10,800199804-199904

sub04438-12303¥10,800

main04438-12302iSXA10,11¥10,800199904

sub04438-12304¥10,800

main04438-20131iSXA15,16..ATM¥10,800199804-199904

sub04438-20134¥10,800

main04438-20132iSXA15,16..ATM¥10,800199904

sub04438-20133¥10,800

main04438-32172iSXA10¥10,800199404-199406

sub04438-12300¥10,800

main04438-42040iSXA15,16..MTM¥10,800199709

sub04438-42041¥10,800

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12420iSXA15,16..ATM¥6,700199709-199804

sub04438-20121¥6,700

main04438-20121iSXA15,16..ATM¥6,700199804

sub04438-12470¥6,700

main04438-32161iSXA1#¥6,700199404-199511

sub04438-32230¥6,700

main04438-32230iSXA10,11¥6,700199511-199804

sub04438-32231¥6,700

main04438-32231iSXA10,11¥6,700199804

sub04438-32290¥6,700

main04438-42030iSXA15,16..MTM¥6,700199709

sub04438-42031¥6,700

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iSXA15,16..MTM¥330199709

main41336-20011iSXA15,16..ATM¥510199709-199908

sub41336-20050¥430

main41336-20040iSXA10,11¥950199404

main41336-20050iSXA15,16..ATM¥430199908

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-20030iSXA15,16..ATM¥32,500199709-199806

sub43030-32060¥32,700

main43030-32060iSXA15,16..ATM¥32,700199806

main43030-42010iSXA15,16..MTM¥36,100199709

main43403-12050iSXA10,11¥26,400199404

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iSXA1#¥780199608

main43247-12010iSXA1#¥780199404-199608

main43247-33010iSXA1#¥2,400199404-199608

43403CRING, O (FOR FRONT DRIVE INBOARD JOINT)

main90301-26006iSXA10,11¥650199404

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-20581iSXA15,16..ATM¥79,600199709-199901

sub43410-20582¥79,600

main43410-20582iSXA15,16..ATM¥79,600199901

sub43410-20583¥79,600

main43410-42010iSXA1#¥71,500199404-199608

sub43410-42011¥71,500

sub90178-22001¥310

main43410-42010iSXA1#¥71,500199608-199709

sub43410-42011¥71,500

sub90178-22001¥310

main43410-42011iSXA10,11¥71,500199709-199901

sub43410-42012¥71,500

main43410-42012iSXA10,11¥71,500199901

sub43410-42013¥71,500

main43410-42020iSXA1#¥71,500199404-199608

sub43410-42021¥71,500

sub90178-22001¥310

main43410-42051iSXA15,16..MTM¥79,500199709

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iSXA15,16..ATM¥110199709

main90520-38015iSXA15,16..MTM¥100199709

main90521-26004iSXA10,11¥100199404

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22005iSXA10,11;SXA15,16..ATM¥100199404

main90520-25034iSXA15,16..MTM¥160199709

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16030iSXA1#¥660199404-199709

main42345-16030iSXA10,11;SXA15,16..ATM¥660199709-199901

main42345-20090iSXA10,11;SXA15,16..ATM¥330199901

sub42345-20100¥530

main42345-20100iSXA10,11;SXA15,16..ATM¥530199901

main90949-01A65iSXA15,16..MTM¥360199709

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16040iSXA1#¥550199404-199709

main42345-20110iSXA10,11;SXA15,16..ATM¥510199901-200005

sub42345-20120¥620

main42345-20120iSXA10,11;SXA15,16..ATM¥620199901-200005

main90949-01076iSXA10,11;SXA15,16..ATM¥380199709-199901

sub42345-12160¥300

main90949-01937iSXA15,16..MTM¥510199709-200005

main90949-01946iSXA15,16..ATM¥230199709-199901

sub42345-12160¥300

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16010iSXA1#¥140199404-199709

main90949-01078iSXA10,11;SXA15,16..ATM¥80199709-200005

main90949-01108iSXA15,16..MTM¥320199709-200005

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16040iSXA1#¥550199404-199709

main42346-22010iSXA15,16..MTM¥620199709-200005

main90949-01076iSXA15,16..ATM¥380199709-200005

sub42345-12160¥300

main90949-01946iSXA15,16..ATM¥230199709-200005

sub42345-12160¥300

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-19656iSXA15,16..ATM¥38,900199709-199804

sub43470-19657¥38,900

main43470-19657iSXA15,16..ATM¥38,900199804-199901

sub43470-19658¥38,900

main43470-19658iSXA15,16..ATM¥38,900199901

sub43470-19659¥38,900

main43470-49015iSXA1#¥40,800199404-199608

sub43470-49016¥40,900

sub90178-22001¥310

main43470-49025iSXA1#¥41,400199608-199709

sub43470-49026¥41,500

sub90178-22001¥310

main43470-49025iSXA1#¥41,400199404-199608

sub43470-49026¥41,500

sub90178-22001¥310

main43470-49026iSXA10,11¥41,500199709-199804

sub43470-49027¥41,500

main43470-49027iSXA10,11¥41,500199804-199901

sub43470-49028¥41,500

main43470-49028iSXA10,11¥41,500199901

sub43470-49029¥41,400

main43470-49046iSXA15,16..MTM¥38,200199709

sub43470-49047¥38,200

14 parts on this diagram · 6 diagrams in section
