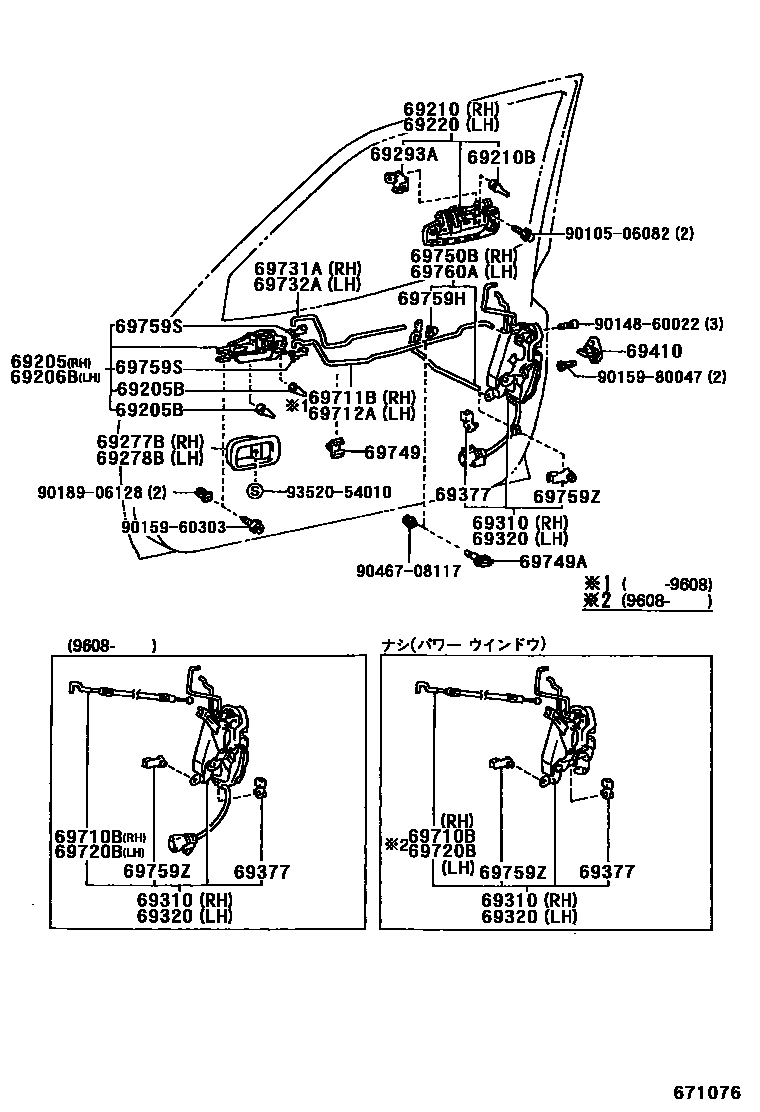

Toyota RAV4 — FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-42010-B0iSXA1#199404-199608

BLUISH GRAY,TRIM1#

sub69205-42010¥3,050

main69205-42020-B0iSXA1#199608-199709

BLUISH GRAY,TRIM1#

sub69205-42020¥3,050

main69205-42020-B1iSXA11,16..STD199709-199808

SHADOW GRAY,TRIM10,12

sub69205-42020¥3,050

main69205-42020-B1iSXA11..WIB;SXA10..G,SOT199709-200005

SHADOW GRAY,TRIM1#

sub69205-42020¥3,050

main69205-42020-B1iSXA11..WIB;SXA10..G,SOT199710-200005

SHADOW GRAY,TRIM10,11

sub69205-42020¥3,050

main69205-42020-B1iSXA11,16..STD199808-200005

SHADOW GRAY,TRIM10,11,12

sub69205-42020¥3,050

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04018iSXA1#¥160199404

main90541-04020iSXA1#¥200199404

D=12.0

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-42010-B0iSXA1#199404-199608

BLUISH GRAY,TRIM1#

sub69206-42010¥3,050

main69206-42020-B0iSXA1#199608-199709

BLUISH GRAY,TRIM1#

sub69206-42020¥3,050

main69206-42020-B1iSXA10,15..STD199709-200005

SHADOW GRAY,TRIM1#

sub69206-42020¥3,050

main69206-42020-B1iSXA11,16..STD199709-199808

SHADOW GRAY,TRIM10,12

sub69206-42020¥3,050

main69206-42020-B1iSXA11..WIB;SXA10..G,SOT199710-200005

SHADOW GRAY,TRIM10,11

sub69206-42020¥3,050

main69206-42020-B1iSXA11,16..STD199808-200005

SHADOW GRAY,TRIM10,11,12

sub69206-42020¥3,050

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12160iSXA11¥6,600199504-199709

main69210-20310iSXA10¥6,600199404-199709

main69210-42010iSXA10,15..NOB¥6,600199709-199808

sub69210-20310¥6,600

main69210-42020-A0iSXA10..G,SOT199808-200005

WHITE,K83 ,K96

sub69210-20300¥6,600

main69210-42020-A0iSXA10..G,SOT199808-200005

WHITE,K83

sub69210-20300¥6,600

main69210-42020-A0iSXA10,15..STD,X199710-199808

WHITE,K60

sub69210-20300¥6,600

main69210-42020-A1iSXA10,15..STD199808-200005

WHITE PM.,KA6 ,KA7 ,K18 ,K20 ,K22

sub69210-20300¥6,600

main69210-42020-A1iSXA10,15..STD199709-199808

WHITE PM.,K18 ,K19 ,K20 ,K21 ,K22

sub69210-20300¥6,600

main69210-42020-B0iSXA10,15199808-200005

SILVER ME,199 ,1C0 ,K73 ,KA8 ,KA9 ,KB0

sub69210-20300¥6,600

main69210-42020-B0iSXA10,15199709-199808

SILVER ME,K61 ,199

sub69210-20300¥6,600

main69210-42020-B1iSXA10,15199808-200005

SILVER GR.SF.,KA2 ,K98

sub69210-20300¥6,600

main69210-42020-C0iSXA10,15..STD,X199710-199808

BLACK,K62

sub69210-20300¥6,600

main69210-42020-C0iSXA10..G,SOT199709-199808

BLACK,K62 ,202

sub69210-20300¥6,600

main69210-42020-C0iSXA10,15199808-200005

BLACK,KA3 ,K62

sub69210-20300¥6,600

main69210-42020-D0iSXA10,15199709-199808

WINE RED MC,K64 ,3J8

sub69210-20300¥6,600

main69210-42020-D1iSXA10,15..STD199709-199808

RED,K23 ,K24 ,K25 ,K26 ,K27

sub69210-20300¥6,600

main69210-42020-D1iSXA10,15..STD199808-200005

RED,K24 ,K25 ,K26 ,K27 ,K77

sub69210-20300¥6,600

main69210-42020-D2iSXA10,15..STD199709-199808

RED M.M.,K28 ,K29 ,K30 ,K31 ,K32

sub69210-20300¥6,600

main69210-42020-D2iSXA10,15..STD199808-200005

RED M.M.,K29 ,K32

sub69210-20300¥6,600

main69210-42020-D3iSXA10,15..STD199709-199808

CORAL ME.,K33 ,K34 ,K35 ,K36

sub69210-20300¥6,600

main69210-42020-D3iSXA10,15..STD199808-200005

CORAL ME.,K33 ,K35 ,K36

sub69210-20300¥6,600

main69210-42020-D4iSXA10,15199808-200005

RED MC.,KA0

sub69210-20300¥6,600

main69210-42020-F0iSXA10,15..STD199709-199808

YELLOW,K37 ,K38 ,K39 ,K40

sub69210-20300¥6,600

main69210-42020-G0iSXA10,15199709-199808

DK.GREEN M.M.,K68 ,6P3

sub69210-20300¥6,600

main69210-42020-G0iSXA10,15199808-200005

DK.GREEN M.M.,KA2

sub69210-20300¥6,600

main69210-42020-G1iSXA10,15..STD199709-199808

GREEN ME.OP.,K41 ,K42 ,K43 ,K44

sub69210-20300¥6,600

main69210-42020-G1iSXA10,15..STD199808-200005

GREEN ME.OP.,K41 ,K43 ,K44

sub69210-20300¥6,600

main69210-42020-H0iSXA10,15..STD199709-199808

DP.TEAL ME.,K45 ,K46 ,K47 ,K48

sub69210-20300¥6,600

main69210-42020-H1iSXA10,15199808-200005

DK.TURQUOISE MC.,K95

sub69210-20300¥6,600

main69210-42020-J0iSXA10,15199709-199808

DK.BLUE MM.GR.,K70 ,8K5

sub69210-20300¥6,600

main69210-42020-J1iSXA10,15199808-200005

BLUE M.M.,K71

sub69210-20300¥6,600

main69210-42020-J1iSXA10,15199709-199808

BLUE M.M.,K71 ,8L5

sub69210-20300¥6,600

main69210-42020-J2iSXA10,15..STD199808-200005

LT.BLUE M.M.,K54 ,K56

sub69210-20300¥6,600

main69210-42020-J2iSXA10,15..STD199709-199808

LT.BLUE M.M.,K54 ,K55 ,K56 ,K57

sub69210-20300¥6,600

main69210-42020-J3iSXA10,15..STD199709-199808

PURPLISH BLUE M.M.,K49 ,K50 ,K51 ,K52 ,K53

sub69210-20300¥6,600

main69210-42020-J4iSXA10,15..STD199808-200005

DARK BLUE,KC2 ,KC3 ,KC4 ,KC5 ,KC6

sub69210-20300¥6,600

main69210-42030iSXA11,16..STD¥6,600199709-199808

sub69210-12160¥6,600

main69210-42040-A0iSXA11,16..G,STD199709-199808

WARM GRAY PM,K58 ,046

sub69210-12270¥6,600

main69210-42040-A1iSXA11..X199712-199808

WHITE,K60

sub69210-12270¥6,600

main69210-42040-A1iSXA11..ATM..STD199710-199711

WHITE,056

sub69210-12270¥6,600

main69210-42040-A1iSXA11,16199808-200005

WHITE,K83 ,K96

sub69210-12270¥6,600

main69210-42040-A2iSXA11,16..STD199709-199808

WHITE PM.,K18 ,K19 ,K20 ,K21 ,K22

sub69210-12270¥6,600

main69210-42040-A2iSXA11,16..STD199808-200005

WHITE PM.,K18 ,K20 ,K22

sub69210-12270¥6,600

main69210-42040-A3iSXA11,16..G,STD199808-200005

WHITE PM.,K97

sub69210-12270¥6,600

main69210-42040-B0iSXA11,16..G,STD199709-199808

SILVER ME,K61 ,199

sub69210-12270¥6,600

main69210-42040-B0iSXA11..X199712-199808

SILVER ME,K61

sub69210-12270¥6,600

main69210-42040-B1iSXA11,16199808-200005

SILVER GR.SF.,K98

sub69210-12270¥6,600

main69210-42040-C0iSXA11..WIB199808-200005

BLACK,KA3 ,K62

sub69210-12270¥6,600

main69210-42040-C0iSXA11..G199709-199808

BLACK,K62 ,202

sub69210-12270¥6,600

main69210-42040-C0iSXA11,16..STD199808-200005

BLACK,KA3

sub69210-12270¥6,600

main69210-42040-C0iSXA11..X199712-199808

BLACK,K62

sub69210-12270¥6,600

main69210-42040-D0iSXA11,16..G,STD199709-199808

WINE RED MC,K64 ,3J8

sub69210-12270¥6,600

main69210-42040-D1iSXA11,16..STD199808-200005

RED,K24 ,K25 ,K26 ,K27 ,K77

sub69210-12270¥6,600

main69210-42040-D1iSXA11,16..STD199709-199808

RED,K23 ,K24 ,K25 ,K26 ,K27

sub69210-12270¥6,600

main69210-42040-D2iSXA11,16..STD199709-199808

RED M.M.,K28 ,K29 ,K30 ,K31 ,K32

sub69210-12270¥6,600

main69210-42040-D2iSXA11,16..STD199808-200005

RED M.M.,K29 ,K32

sub69210-12270¥6,600

main69210-42040-D3iSXA11,16..STD199808-200005

CORAL ME.,K33 ,K35 ,K36

sub69210-12270¥6,600

main69210-42040-D3iSXA11,16..STD199709-199808

CORAL ME.,K33 ,K34 ,K35 ,K36

sub69210-12270¥6,600

main69210-42040-D4iSXA11,16..G,STD199808-200005

RED MC.,KA0

sub69210-12270¥6,600

main69210-42040-F0iSXA11,16..STD199709-199808

YELLOW,K37 ,K38 ,K39 ,K40

sub69210-12270¥6,600

main69210-42040-G0iSXA11,16..G,STD199709-199808

DK.GREEN M.M.,K68 ,6P3

sub69210-12270¥6,600

main69210-42040-G0iSXA11,16..G,STD199808-200005

DK.GREEN M.M.,KA2

sub69210-12270¥6,600

main69210-42040-G1iSXA11,16..STD199709-199808

GREEN ME.OP.,K41 ,K42 ,K43 ,K44

sub69210-12270¥6,600

main69210-42040-G1iSXA11,16..STD199808-200005

GREEN ME.OP.,K41 ,K43 ,K44

sub69210-12270¥6,600

main69210-42040-H0iSXA11,16..STD199709-199808

DP.TEAL ME.,K45 ,K46 ,K47 ,K48

sub69210-12270¥6,600

main69210-42040-H1iSXA11,16..G,STD199808-200005

DK.TURQUOISE MC.,K95

sub69210-12270¥6,600

main69210-42040-J0iSXA11,16..G,STD199709-199808

DK.BLUE MM.GR.,K70 ,8K5

sub69210-12270¥6,600

main69210-42040-J1iSXA11,16..G,STD199808-200005

BLUE M.M.,K71

sub69210-12270¥6,600

main69210-42040-J1iSXA11,16..G,STD199709-199808

BLUE M.M.,K71 ,8L5

sub69210-12270¥6,600

main69210-42040-J2iSXA11,16..STD199709-199808

PURPLISH BLUE M.M.,K49 ,K50 ,K51 ,K52 ,K53

sub69210-12270¥6,600

main69210-42040-J3iSXA11,16..STD199808-200005

LT.BLUE M.M.,K54 ,K56

sub69210-12270¥6,600

main69210-42040-J3iSXA11,16..STD199709-199808

LT.BLUE M.M.,K54 ,K55 ,K56 ,K57

sub69210-12270¥6,600

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04014iSXA11,16¥100199504

main90541-04018iSXA10,15¥160199404

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-12160iSXA11¥6,600199504-199709

main69220-20330iSXA10¥6,600199404-199709

main69220-42010iSXA10,15..NOB¥6,600199709-199808

sub69220-20330¥6,600

main69220-42020-A0iSXA10..G,SOT199808-200005

WHITE,K83

sub69220-20320¥6,600

main69220-42020-A0iSXA10..G,SOT199808-200005

WHITE,K83 ,K96

sub69220-20320¥6,600

main69220-42020-A0iSXA10,15..STD,X199710-199808

WHITE,K60

sub69220-20320¥6,600

main69220-42020-A1iSXA10,15..STD199709-199808

WHITE PM.,K18 ,K19 ,K20 ,K21 ,K22

sub69220-20320¥6,600

main69220-42020-A1iSXA10,15..STD199808-200005

WHITE PM.,KA6 ,KA7 ,K18 ,K20 ,K22

sub69220-20320¥6,600

main69220-42020-B0iSXA10,15199709-199808

SILVER ME,K61 ,199

sub69220-20320¥6,600

main69220-42020-B0iSXA10,15199808-200005

SILVER ME,199 ,1C0 ,K73 ,KA8 ,KA9 ,KB0

sub69220-20320¥6,600

main69220-42020-B1iSXA10,15199808-200005

SILVER GR.SF.,KA2 ,K98

sub69220-20320¥6,600

main69220-42020-C0iSXA10,15..STD,X199710-199808

BLACK,K62

sub69220-20320¥6,600

main69220-42020-C0iSXA10..G,SOT199709-199808

BLACK,K62 ,202

sub69220-20320¥6,600

main69220-42020-C0iSXA10,15199808-200005

BLACK,KA3 ,K62

sub69220-20320¥6,600

main69220-42020-D0iSXA10,15199709-199808

WINE RED MC,K64 ,3J8

sub69220-20320¥6,600

main69220-42020-D1iSXA10,15..STD199709-199808

RED,K23 ,K24 ,K25 ,K26 ,K27

sub69220-20320¥6,600

main69220-42020-D1iSXA10,15..STD199808-200005

RED,K24 ,K25 ,K26 ,K27 ,K77

sub69220-20320¥6,600

main69220-42020-D2iSXA10,15..STD199808-200005

RED M.M.,K29 ,K32

sub69220-20320¥6,600

main69220-42020-D2iSXA10,15..STD199709-199808

RED M.M.,K28 ,K29 ,K30 ,K31 ,K32

sub69220-20320¥6,600

main69220-42020-D3iSXA10,15..STD199709-199808

CORAL ME.,K33 ,K34 ,K35 ,K36

sub69220-20320¥6,600

main69220-42020-D3iSXA10,15..STD199808-200005

CORAL ME.,K33 ,K35 ,K36

sub69220-20320¥6,600

main69220-42020-D4iSXA10,15199808-200005

RED MC.,KA0

sub69220-20320¥6,600

main69220-42020-F0iSXA10,15..STD199709-199808

YELLOW,K37 ,K38 ,K39 ,K40

sub69220-20320¥6,600

main69220-42020-G0iSXA10,15199709-199808

DK.GREEN M.M.,K68 ,6P3

sub69220-20320¥6,600

main69220-42020-G0iSXA10,15199808-200005

DK.GREEN M.M.,KA2

sub69220-20320¥6,600

main69220-42020-G1iSXA10,15..STD199808-200005

GREEN ME.OP.,K41 ,K43 ,K44

sub69220-20320¥6,600

main69220-42020-G1iSXA10,15..STD199709-199808

GREEN ME.OP.,K41 ,K42 ,K43 ,K44

sub69220-20320¥6,600

main69220-42020-H0iSXA10,15..STD199709-199808

DP.TEAL ME.,K45 ,K46 ,K47 ,K48

sub69220-20320¥6,600

main69220-42020-H1iSXA10,15199808-200005

DK.TURQUOISE MC.,K95

sub69220-20320¥6,600

main69220-42020-J0iSXA10,15199709-199808

DK.BLUE MM.GR.,K70 ,8K5

sub69220-20320¥6,600

main69220-42020-J1iSXA10,15199808-200005

BLUE M.M.,K71

sub69220-20320¥6,600

main69220-42020-J1iSXA10,15199709-199808

BLUE M.M.,K71 ,8L5

sub69220-20320¥6,600

main69220-42020-J2iSXA10,15..STD199808-200005

LT.BLUE M.M.,K54 ,K56

sub69220-20320¥6,600

main69220-42020-J2iSXA10,15..STD199709-199808

LT.BLUE M.M.,K54 ,K55 ,K56 ,K57

sub69220-20320¥6,600

main69220-42020-J3iSXA10,15..STD199709-199808

PURPLISH BLUE M.M.,K49 ,K50 ,K51 ,K52 ,K53

sub69220-20320¥6,600

main69220-42020-J4iSXA10,15..STD199808-200005

DARK BLUE,KC2 ,KC3 ,KC4 ,KC5 ,KC6

sub69220-20320¥6,600

main69220-42030iSXA11,16..STD¥6,600199709-199808

sub69220-12160¥6,600

main69220-42040-A0iSXA11,16..G,STD199709-199808

WARM GRAY PM,K58 ,046

sub69220-12270¥6,600

main69220-42040-A1iSXA11..X199712-199808

WHITE,K60

sub69220-12270¥6,600

main69220-42040-A1iSXA11,16199808-200005

WHITE,K83 ,K96

sub69220-12270¥6,600

main69220-42040-A1iSXA11..ATM..STD199710-199711

WHITE,056

sub69220-12270¥6,600

main69220-42040-A2iSXA11,16..STD199709-199808

WHITE PM.,K18 ,K19 ,K20 ,K21 ,K22

sub69220-12270¥6,600

main69220-42040-A2iSXA11,16..STD199808-200005

WHITE PM.,K18 ,K20 ,K22

sub69220-12270¥6,600

main69220-42040-A3iSXA11,16..G,STD199808-200005

WHITE PM.,K97

sub69220-12270¥6,600

main69220-42040-B0iSXA11,16..G,STD199709-199808

SILVER ME,K61 ,199

sub69220-12270¥6,600

main69220-42040-B0iSXA11..X199712-199808

SILVER ME,K61

sub69220-12270¥6,600

main69220-42040-B1iSXA11,16199808-200005

SILVER GR.SF.,K98

sub69220-12270¥6,600

main69220-42040-C0iSXA11..WIB199808-200005

BLACK,KA3 ,K62

sub69220-12270¥6,600

main69220-42040-C0iSXA11..G199709-199808

BLACK,K62 ,202

sub69220-12270¥6,600

main69220-42040-C0iSXA11..X199712-199808

BLACK,K62

sub69220-12270¥6,600

main69220-42040-C0iSXA11..WIB199808-200005

BLACK,KA3

sub69220-12270¥6,600

main69220-42040-D0iSXA11,16..G,STD199709-199808

WINE RED MC,K64 ,3J8

sub69220-12270¥6,600

main69220-42040-D1iSXA11,16..STD199808-200005

RED,K24 ,K25 ,K26 ,K27 ,K77

sub69220-12270¥6,600

main69220-42040-D1iSXA11,16..STD199709-199808

RED,K23 ,K24 ,K25 ,K26 ,K27

sub69220-12270¥6,600

main69220-42040-D2iSXA11,16..STD199709-199808

RED M.M.,K28 ,K29 ,K30 ,K31 ,K32

sub69220-12270¥6,600

main69220-42040-D2iSXA11,16..STD199808-200005

RED M.M.,K29 ,K32

sub69220-12270¥6,600

main69220-42040-D3iSXA11,16..STD199808-200005

CORAL ME.,K33 ,K35 ,K36

sub69220-12270¥6,600

main69220-42040-D3iSXA11,16..STD199709-199808

CORAL ME.,K33 ,K34 ,K35 ,K36

sub69220-12270¥6,600

main69220-42040-D4iSXA11,16..G,STD199808-200005

RED MC.,KA0

sub69220-12270¥6,600

main69220-42040-F0iSXA11,16..STD199709-199808

YELLOW,K37 ,K38 ,K39 ,K40

sub69220-12270¥6,600

main69220-42040-G0iSXA11,16..G,STD199808-200005

DK.GREEN M.M.,KA2

sub69220-12270¥6,600

main69220-42040-G0iSXA11,16..G,STD199709-199808

DK.GREEN M.M.,K68 ,6P3

sub69220-12270¥6,600

main69220-42040-G1iSXA11,16..STD199709-199808

GREEN ME.OP.,K41 ,K42 ,K43 ,K44

sub69220-12270¥6,600

main69220-42040-G1iSXA11,16..STD199808-200005

GREEN ME.OP.,K41 ,K43 ,K44

sub69220-12270¥6,600

main69220-42040-H0iSXA11,16..STD199709-199808

DP.TEAL ME.,K45 ,K46 ,K47 ,K48

sub69220-12270¥6,600

main69220-42040-H1iSXA11,16..G,STD199808-200005

DK.TURQUOISE MC.,K95

sub69220-12270¥6,600

main69220-42040-J0iSXA11,16..G,STD199709-199808

DK.BLUE MM.GR.,K70 ,8K5

sub69220-12270¥6,600

main69220-42040-J1iSXA11,16..G,STD199709-199808

BLUE M.M.,K71 ,8L5

sub69220-12270¥6,600

main69220-42040-J1iSXA11,16..G,STD199808-200005

BLUE M.M.,K71

sub69220-12270¥6,600

main69220-42040-J2iSXA11,16..STD199709-199808

PURPLISH BLUE M.M.,K49 ,K50 ,K51 ,K52 ,K53

sub69220-12270¥6,600

main69220-42040-J3iSXA11,16..STD199808-200005

LT.BLUE M.M.,K54 ,K56

sub69220-12270¥6,600

main69220-42040-J3iSXA11,16..STD199709-199808

LT.BLUE M.M.,K54 ,K55 ,K56 ,K57

sub69220-12270¥6,600

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-22070-B0iSXA1#199404-199709

BLUISH GRAY,TRIM1#

sub69277-22070¥660

main69277-22070-B1iSXA10,15..STD199709-200005

SHADOW GRAY,TRIM1#

sub69277-22070¥660

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-22030-B0iSXA1#199404-199709

BLUISH GRAY,TRIM1#

sub69278-22030¥660

main69278-22030-B1iSXA10,11..G,SOT,X199709-200005

SHADOW GRAY,TRIM1#

sub69278-22030¥660

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-10020iSXA10,15..G,STD,X¥240199404

main69293-12030iSXA10..SOT¥160199404

main69293-12040iSXA11,16¥160199504

69310LOCK ASSY, FRONT DOOR, RH

main69030-42010iSXA10¥18,100199404-199608

main69030-42030iSXA11¥18,100199504-199608

main69030-42070iSXA10¥18,900199608-199706

sub69030-42071¥18,900

main69030-42071iSXA10¥18,900199706-199709

main69030-42090iSXA11¥18,900199608-199706

sub69030-42091¥19,000

main69030-42091iSXA11¥19,000199706-199709

main69030-42131iSXA10,15¥19,800199709

main69030-42141iSXA11,16¥19,800199709

main69310-42010iSXA10¥8,600199504-199608

main69310-42020iSXA11¥8,600199504-199608

main69310-42050iSXA10..STD¥8,600199608-199706

sub69310-42051¥8,600

main69310-42051iSXA10,15..NOB¥8,600199706-199808

main69310-42060iSXA11..STD¥8,600199608-199706

sub69310-42061¥8,600

main69310-42061iSXA11..STD¥8,600199706-199808

69320LOCK ASSY, FRONT DOOR, LH

main69040-42010iSXA10¥15,700199404-199608

main69040-42030iSXA11¥15,700199504-199608

main69040-42070iSXA10¥16,700199608-199706

sub69040-42071¥16,700

main69040-42071iSXA10,15¥16,700199706

main69040-42090iSXA11¥16,700199608-199706

sub69040-42091¥16,700

main69040-42091iSXA11,16¥16,700199706

main69320-42010iSXA10¥8,600199504-199608

main69320-42020iSXA11¥8,600199504-199608

main69320-42060iSXA10..STD¥8,600199608-199706

sub69320-42061¥8,600

main69320-42061iSXA10,15..NOB¥8,600199706-199808

main69320-42090iSXA11..STD¥8,600199608-199706

sub69320-42091¥8,600

main69320-42091iSXA16¥8,600199706-199808

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-24010iSXA10;SXA11..STD¥180199404-199709

RH-WHITE

main69759-24020iSXA10;SXA11..STD¥180199404-199709

LH-BLUE

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20070iSXA1#¥1,710199404-199709

main69410-87001iSXA1#¥710199709

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-42010iSXA10¥1,970199608-199709

main69710-42020iSXA11¥1,440199608-199709

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-42010iSXA10¥670199404-199608

sub69711-42011¥670

main69711-42020iSXA11¥670199504-199511

sub69711-42021¥670

main69711-42021iSXA11¥670199511-199608

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-42010iSXA10¥670199404-199608

sub69712-42011¥670

main69712-42020iSXA11¥670199504-199511

sub69712-42021¥670

main69712-42021iSXA11¥670199511-199608

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-42010iSXA10,15¥1,970199608-200005

main69710-42020iSXA11¥1,440199608-200005

69731ALINK, FRONT DOOR INSIDE LOCKING, NO.1 RH

main69731-42010iSXA10¥660199404-199510

sub69731-42011¥670

main69731-42011iSXA10,15¥670199510

main69731-42020iSXA11¥670199504-199511

sub69731-42040¥680

sub69711-42021¥670

main69731-42040iSXA11,16¥680199511

69732ALINK, FRONT DOOR INSIDE LOCKING, NO.1 LH

main69732-42010iSXA10¥660199404-199510

sub69732-42011¥670

main69732-42011iSXA10,15¥670199510

main69732-42020iSXA11¥670199504-199511

sub69732-42040¥680

sub69712-42021¥670

main69732-42040iSXA11,16¥680199511

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12030iSXA10,15¥180199408

main69749-12080iSXA10¥140199404-199408

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-32030iSXA1#¥160199404-199608

main90467-06106iSXA1#¥140199608

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-42010iSXA10,15¥910199404

main69750-42020iSXA11,16¥910199504

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20410iSXA1#¥300199504

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050iSXA1#¥180199404

LH-PINK

main69759-24070iSXA1#¥180199404

RH-YELLOW

69759ZSNAP, DOOR LOCK CONTROL LINK

main69759-20040iSXA10¥220199404-199412

LH-YELLOW

main69759-20050iSXA10¥160199404-199412

RH-BROWN

main69759-24050iSXA15,16;SXA11..WIB;SXA10..SOT,X¥240199412-199709

LH-GREEN

main69759-24060iSXA10;SXA11..STD¥290199412-199709

RH-GRAY

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-42010iSXA10,15¥910199404

main69760-42020iSXA11,16¥910199504

9010506082

main90105-06082¥80

9014860022

main90148-60022¥60

9015960303

main90159-60303¥70

9015980047

main90159-80047¥120

9018906128

main90189-06128¥80

9046708117

main90467-08117¥90

9352054010

main93520-54010¥110

33 parts on this diagram · 1 diagram in section
