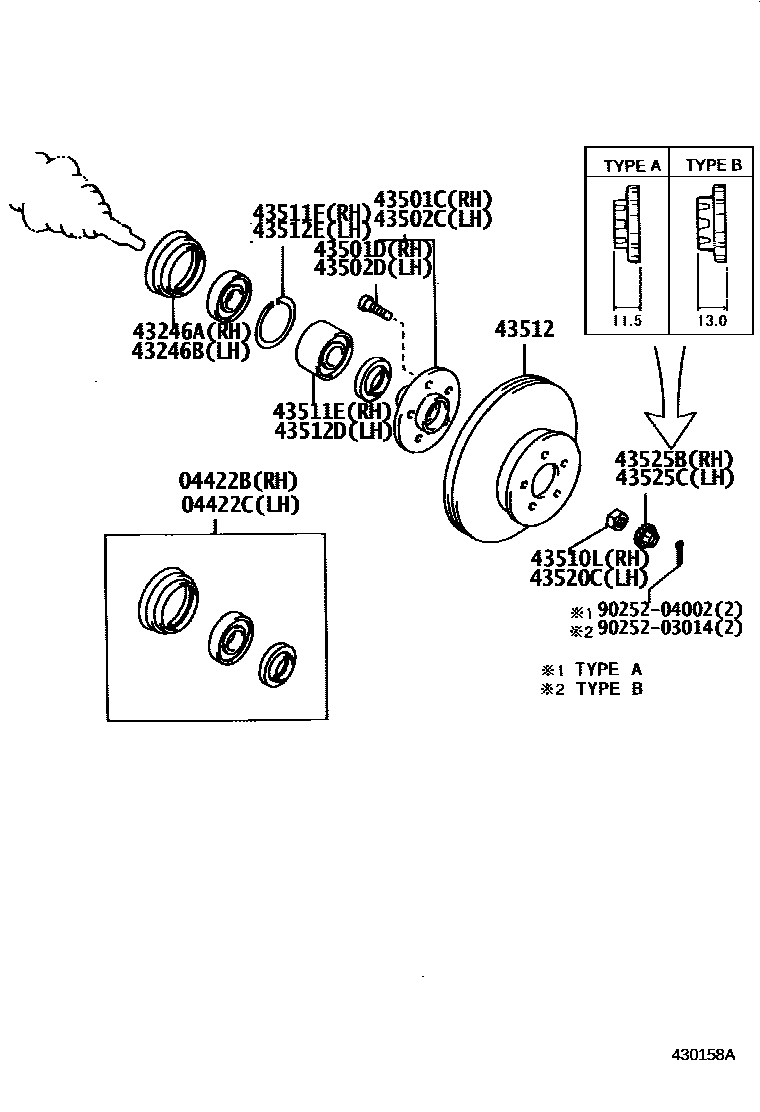

Toyota RAV4 — FRONT AXLE HUB
04422BSEAL KIT, FRONT AXLE OIL, RH
��(ABS)
04422CSEAL KIT,FRONT AXLE OIL, LH
��(ABS)
43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
��(ABS)
43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
��(ABS)
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502DBOLT, HUB (FOR FRONT AXLE LH)
43510LNUT (FOR STEERING KNUCKLE RH)
43511EBEARING (FOR FRONT AXLE HUB RH)
43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
43512DISC, FRONT
43512DBEARING (FOR FRONT AXLE HUB LH)
43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)
43520CNUT (FOR STEERING KNUCKLE LH)
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
TYPE B:���������
TYPE A:���������
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
TYPE B:���������
TYPE A:���������
9025203014
9025204002
19 parts on this diagram · 2 diagrams in section
