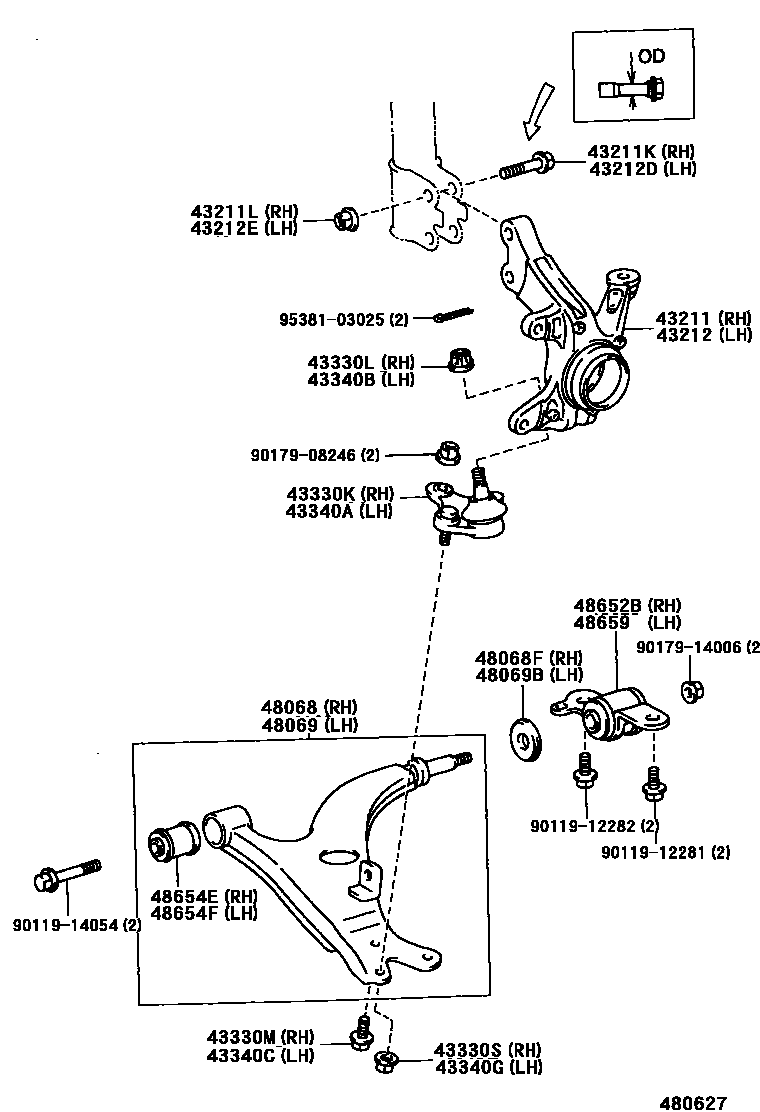

Toyota RAV4 — FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-42010iSXA1#¥18,800199404-199608

main43211-42020iSXA1#¥18,700199404-199510

sub43211-42021¥18,800

sub90389-16020¥130

main43211-42021iSXA1#..SOT,STD,X¥18,800199608

main43211-42021iSXA1#¥18,800199510-199608

main43211-42040iSXA10,11..G¥18,800199608

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15001iSXA1#¥410199507

main90105-15008iSXA1#¥390199404-199507

main90105-15009iSXA1#¥410199404

main90105-15010iSXA1#¥410199404

main90105-15011iSXA1#¥410199404

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15006iSXA1#¥140199404

43212KNUCKLE, STEERING, LH

main43212-42010iSXA1#¥18,800199404-199608

main43212-42020iSXA1#¥18,700199404-199510

sub43212-42021¥18,800

sub90389-16020¥130

main43212-42021iSXA1#¥18,800199510-199608

main43212-42021iSXA1#..SOT,STD,X¥18,800199608

main43212-42040iSXA10,11..G¥18,800199608

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15001iSXA1#¥410199507

main90105-15008iSXA1#¥390199404-199507

main90105-15009iSXA1#¥410199404

main90105-15010iSXA1#¥410199404

main90105-15011iSXA1#¥410199404

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15006iSXA1#¥140199404

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-49025iSXA1#¥5,300199404

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iSXA1#¥110199404

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12122iSXA1#¥230199404

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90179-12052iSXA1#¥190199404

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-49025iSXA1#¥5,300199404

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iSXA1#¥110199404

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12122iSXA1#¥230199404

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90179-12052iSXA1#¥190199404

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-42010iSXA10¥18,700199404-199608

sub48068-42011¥18,800

main48068-42011iSXA10..STD¥18,800199608-199709

sub48068-42012¥18,800

main48068-42012iSXA10,15..NOB¥18,800199709

main48068-42020iSXA11¥18,700199504-199608

sub48068-42021¥17,600

main48068-42021iSXA11;SXA10..G¥17,600199608-199709

sub48068-42022¥17,800

main48068-42022iSXA11,16;SXA10..WIB¥17,800199709

48068FRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90948-02090iSXA1#¥400199404

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-42010iSXA10¥18,700199404-199608

sub48069-42011¥18,800

main48069-42011iSXA10..STD¥18,800199608-199709

sub48069-42012¥18,800

main48069-42012iSXA10,15..NOB¥18,800199709

main48069-42020iSXA11¥18,700199504-199608

sub48069-42021¥17,600

main48069-42021iSXA11;SXA10..G¥17,600199608-199709

sub48069-42022¥17,800

main48069-42022iSXA11,16;SXA10..WIB¥17,800199709

48069BRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90948-02090iSXA1#¥400199404

48652BBRACKET, FRONT LOWER ARM, RH

main48075-42010iSXA1#¥2,230199404-199608

sub48075-42011¥2,230

main48075-42011iSXA1#¥2,230199608-199709

sub48075-42050¥2,240

main48075-42050iSXA1#¥2,240199709

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48654-42010iSXA1#¥1,750199404-199608

sub48654-42020¥1,780

main48654-42020iSXA1#¥1,780199608

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48654-42010iSXA1#¥1,750199404-199608

sub48654-42020¥1,780

main48654-42020iSXA1#¥1,780199608

48659BRACKET, FRONT LOWER ARM, LH

main48076-42010iSXA1#¥2,230199404-199608

sub48076-42011¥2,230

main48076-42011iSXA1#¥2,230199608-199709

sub48076-42050¥2,240

main48076-42050iSXA1#¥2,240199709

9011912281

main90119-12281¥400

9011912282

main90119-12282¥510

9011914054

main90119-14054¥510

9017908246

main90179-08246¥130

9017914006

main90179-14006¥230

9538103025

main95381-03025¥130

28 parts on this diagram · 1 diagram in section
